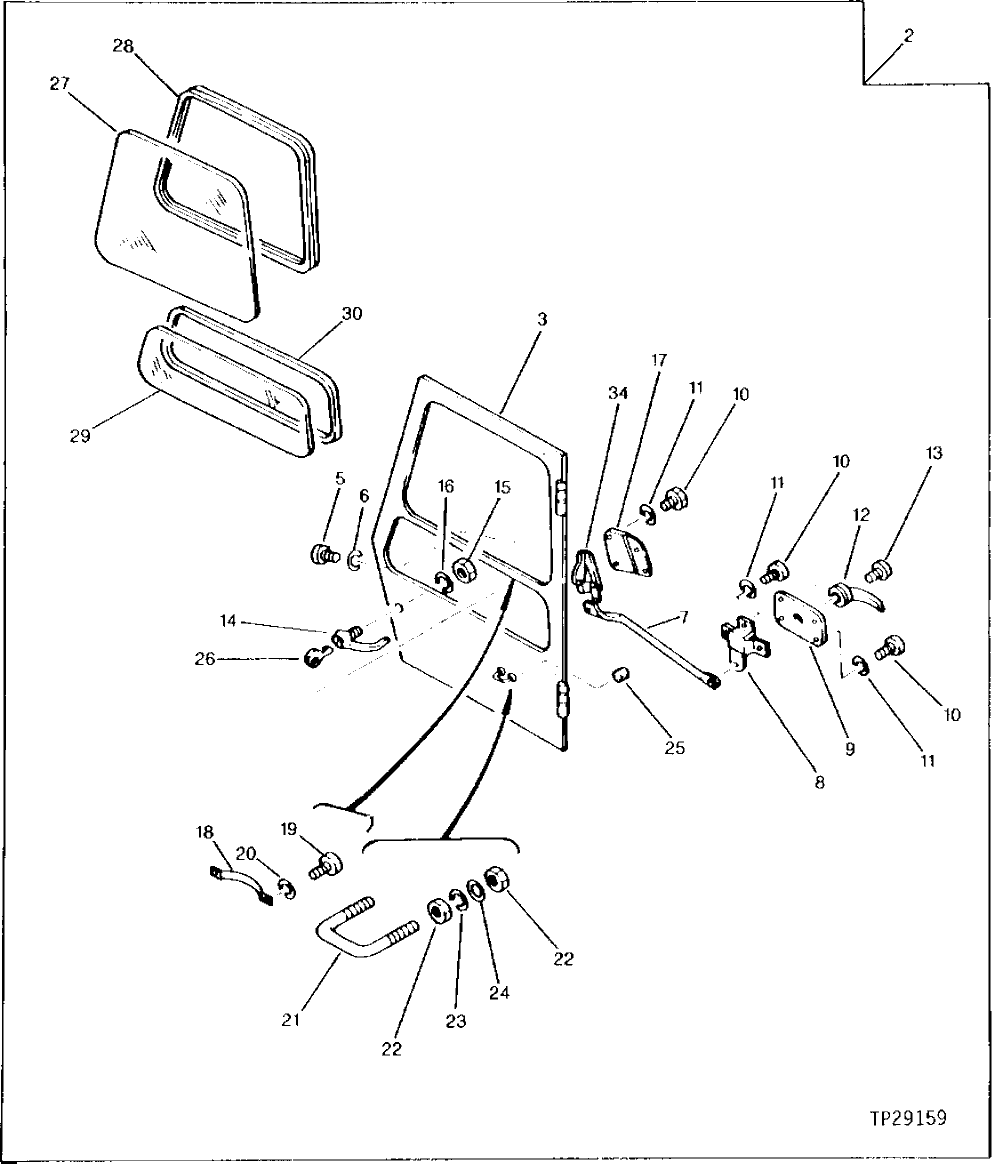

Запчасти John Deere 95 10 - CAB DOOR 1810 - OPERATORS STATION 18

1

4200708

CAB

(SUB FOR TH107960) (NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE, FOR ADDITIONAL COMPONENTS SEE OTHER PAGES)

1шт.

2

4186683

DOOR

(SUB FOR TH104131)

1шт.

3

4186684

DOOR

(SUB FOR TH104132)

1шт.

4

4186685

LOCK

(SUB FOR TH104133)

1шт.

5

21M7288

SCREW

M6 X 10

3шт.

6

12M7006

LOCK WASHER

6 MM

3шт.

7

4186690

ROD

(SUB FOR TH104134)

1шт.

8

4128455

LEVER

(SUB FOR TH101153)

1шт.

9

4147904

COVER

(SUB FOR TH101154)

1шт.

10

21M7278

SCREW

M5 X 10

11шт.

11

12M7064

LOCK WASHER

5 MM, (SUB FOR TH100519)

11шт.

12

4128460

HANDLE

(SUB FOR TH101155)

1шт.

13

M470513

CAP SCREW

(SUB FOR TH101156)

1шт.

14

4177190

HANDLE

(SUB FOR TH101157)

1шт.

15

14M7273

NUT

M8

2шт.

16

12M7056

LOCK WASHER

8 MM, (SUB FOR TH100529) (SUB FOR 12M7065)

2шт.

17

4186686

COVER

(SUB FOR TH104135)

1шт.

18

4089005

HANDLE

(SUB FOR TH101159)

2шт.

19

21M7325

SCREW

M5 X 30

8шт.

20

12M7064

LOCK WASHER

5 MM

8шт.

21

4186687

U-BOLT

(SUB FOR TH104136)

1шт.

22

14M7444

NUT

M10, (SUB FOR TH100255)

4шт.

23

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

4шт.

24

24M7028

WASHER

10.500 X 20 X 2 MM, (SUB FOR TH100263)

4шт.

25

4084302

ISOLATOR

(SUB FOR TH101162)

2шт.

26

4158653

KEY

(SUB FOR TH101605)

1шт.

27

TH101163

WINDOWPANE

1шт.

28

4105784

ISOLATOR

(SUB FOR TH101164)

1шт.

29

TH101165

WINDOWPANE

1шт.

30

4503184

ISOLATOR

(SUB FOR TH101166)

1шт.
