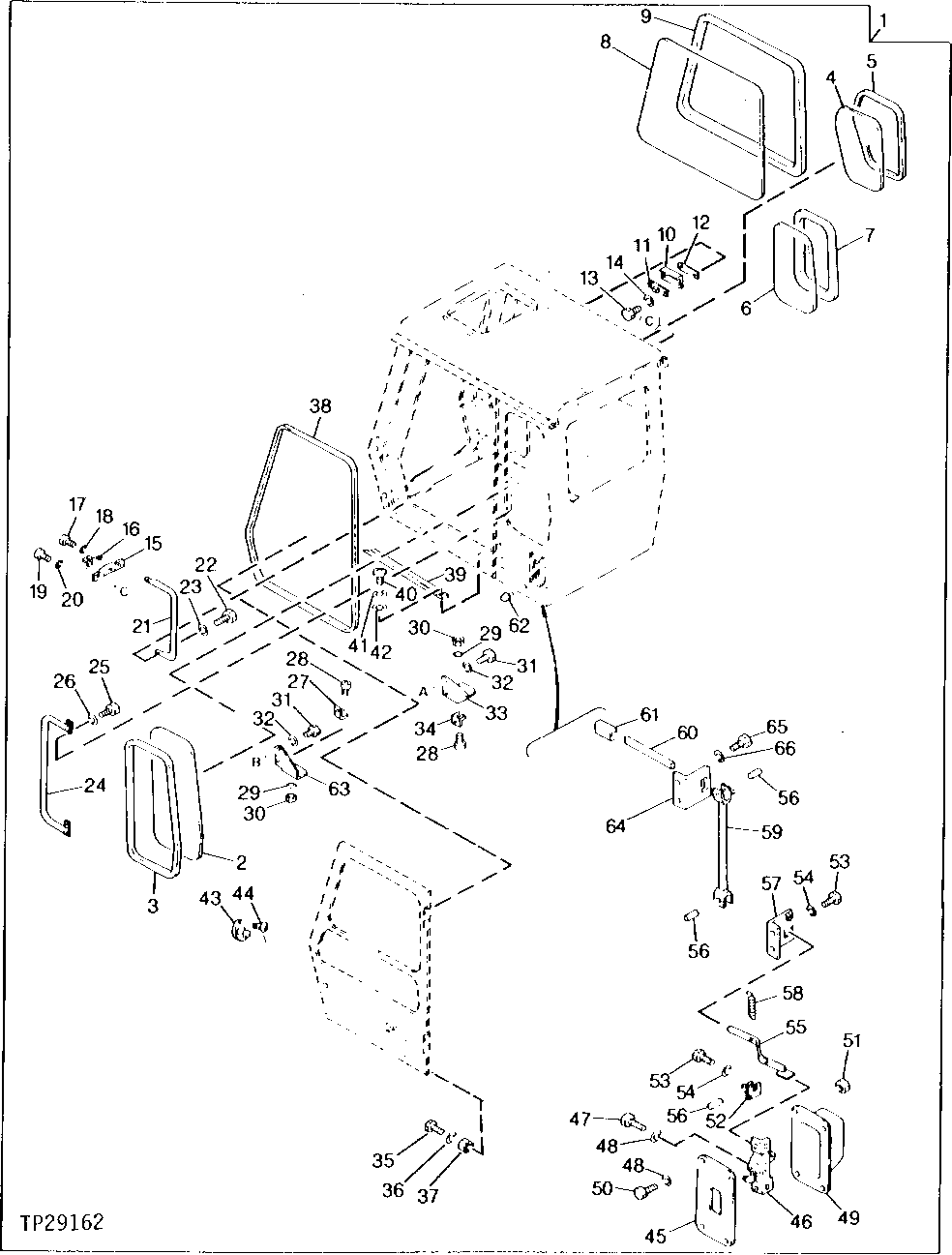

Запчасти John Deere 95 6 - CAB 1810 - OPERATORS STATION 18

1

4200708

CAB

(SUB FOR TH104121) (USE IF AVAILABLE)

1шт.

4200708

CAB

(SUB FOR TH107960) (CONTAINS ALL ITEMS ON THIS PAGE, FOR ADDITIONAL COMPONENTS SEE PREVIOUS AND FOLLOWING PAGES) (SUB FOR TH104121)

1шт.

2

TH101110

WINDOWPANE

1шт.

3

4091399

ISOLATOR

(SUB FOR TH101111)

1шт.

4

TH101124

WINDOWPANE

1шт.

5

4084366

ISOLATOR

(SUB FOR TH101125)

1шт.

6

TH101126

WINDOWPANE

1шт.

7

4084366

ISOLATOR

(SUB FOR TH101125)

1шт.

8

TH101127

WINDOWPANE

1шт.

9

4105788

ISOLATOR

(SUB FOR TH101128)

1шт.

10

4158468

COVER

(SUB FOR TH101192)

2шт.

11

4158469

STOP

(SUB FOR TH101193)

2шт.

12

4158470

SPACER

(SUB FOR TH101194)

2шт.

13

19M7932

CAP SCREW

M8 X 16, (SUB FOR 19M7284)

4шт.

14

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

4шт.

15

4152012

BRACKET

(SUB FOR TH101196)

1шт.

16

4388957

CATCH

( TH101138, 4084267 NLA)

1шт.

17

21M7394

SCREW

M3 X 10

2шт.

18

12H233

LOCK WASHER

3.175 MM, (SUB FOR 12M7048)

2шт.

19

21M7278

SCREW

M5 X 10

2шт.

20

12M7064

LOCK WASHER

5 MM

2шт.

21

HANDRAIL

(SUB TH107961)

1шт.

HANDRAIL

(SUB TH107961)

1шт.

4200709

HANDRAIL

(SUB FOR TH107961)

1шт.

22

19M8784

SCREW

M10 X 20, (SUB FOR 19M8356)

6шт.

19M8784

SCREW

M10 X 20, (SUB FOR 19M8356)

2шт.

23

12M7066

LOCK WASHER

10 MM

6шт.

12M7066

LOCK WASHER

2шт.

24

HANDRAIL

(SUB TH101199)

1шт.

4147923

HANDRAIL

(SUB FOR TH101199)

1шт.

25

M111016

BOLT

(SUB FOR TH101200)

4шт.

26

12M7066

LOCK WASHER

10 MM

4шт.

27

4158986

ISOLATOR

(SUB FOR TH101209)

1шт.

28

21M7022

SCREW

M5 X 20

4шт.

29

24M7027

WASHER

5.300 X 10 X 1 MM

4шт.

30

14M7297

NUT

M5

4шт.

31

M111016

BOLT

(SUB FOR TH101200)

4шт.

32

12M7066

LOCK WASHER

10 MM

4шт.

33

4186869

BRACKET

(SUB FOR TH104142)

1шт.

4193213

MOLDING

(SUB FOR TH107034)

1шт.

34

4158987

ISOLATOR

(SUB FOR TH101212)

1шт.

35

M111025

BOLT

(SUB FOR TH101167)

6шт.

36

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

6шт.

37

14M7444

NUT

M10, (SUB FOR TH100255)

6шт.

38

4128462

ISOLATOR

(SUB FOR TH101168)

1шт.

39

4158464

GUARD

(SUB FOR TH101169)

1шт.

40

21M7288

SCREW

M6 X 10, (SUB FOR TH100547)

2шт.

41

12M7006

LOCK WASHER

6 MM, (SUB FOR TH100548)

2шт.

42

24M7054

WASHER

6.400 X 12 X 1.600 MM, (SUB FOR TH100278)

2шт.

43

4347518

STRIKER

(SUB FOR TH101170 OR 4128473)

1шт.
