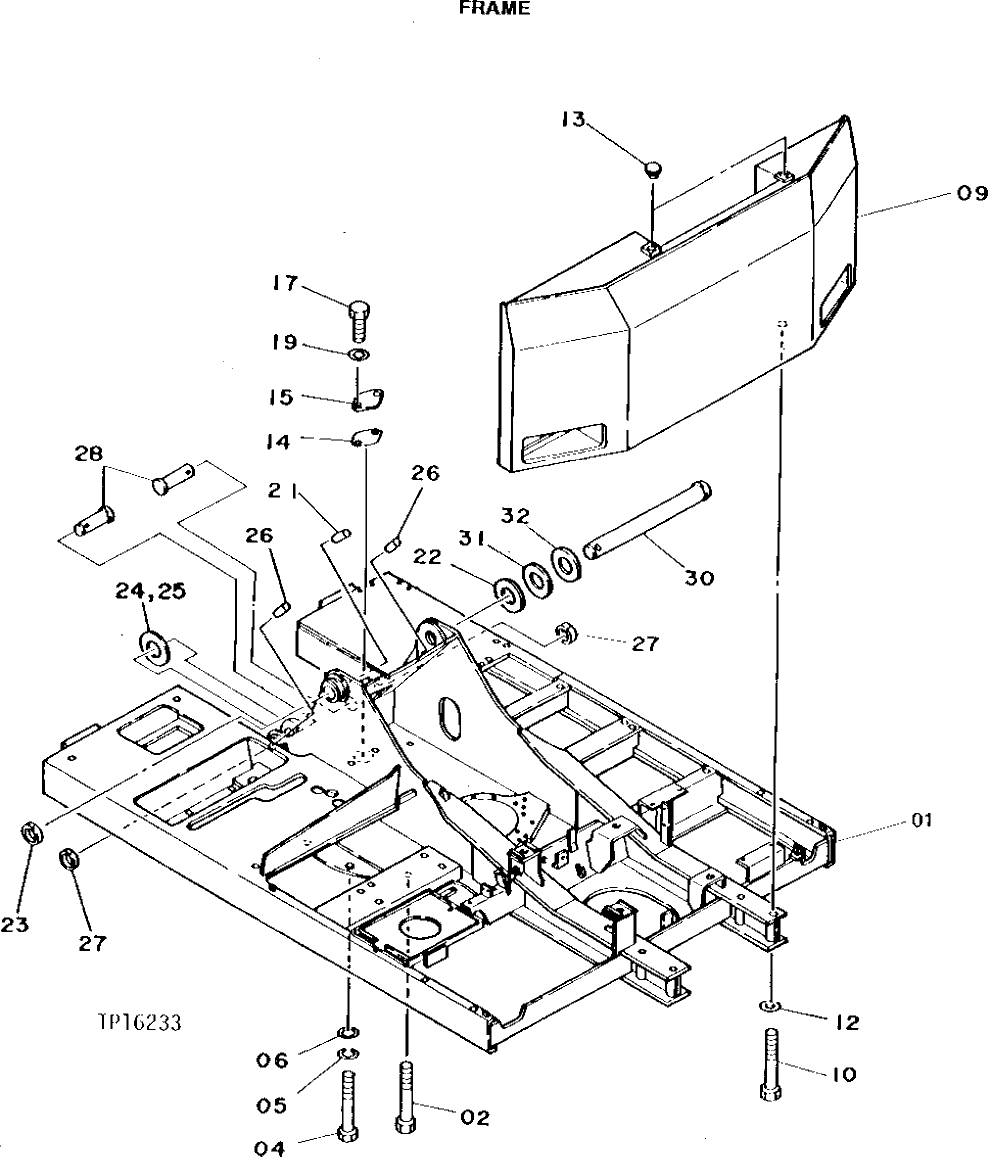

Запчасти John Deere 95 6 - FRAME 1740 - FRAME, CHASSIS OR SUPPORTING STRUCTURE 17

1

MAIN FRAME

( TH103622 NO LONGER AVAILABLE)

1шт.

2

J932001

BOLT

(SUB FOR TH103159)

28шт.

4

19M7908

CAP SCREW

M12 X 110

2шт.

5

12H301

LOCK WASHER

1/2", (SUB FOR TH100413)

2шт.

6

4149138

WASHER

(SUB FOR TH103624)

2шт.

9

COUNTERWEIGHT

( TH103625 NO LONGER AVAILABLE)

1шт.

10

J932721

BOLT

(SUB FOR TH103626)

4шт.

12

4126485

BUSHING

(SUB FOR TH100627)

4шт.

13

4139583

CAP

(SUB FOR TH101721)

2шт.

14

4157713

GASKET

(SUB FOR TH100632)

1шт.

15

4013896

COVER

(SUB FOR TH100633)

1шт.

17

19M7938

CAP SCREW

M10 X 20

2шт.

19

24M7028

WASHER

10.500 X 20 X 2 MM, (SUB FOR TH100263)

2шт.

21

4098713

PIN

(SUB FOR TH103627)

1шт.

22

4093739

WASHER

(SUB FOR TH103628)

ARшт.

23

4098712

RING

(SUB FOR TH103629)

1шт.

24

4367410

THRUST WASHER

(SUB FOR TH105592) (SUB FOR AT214040)

1шт.

25

4366692

THRUST WASHER

(SUB FOR TH105593) (SUB FOR AT214030)

1шт.

26

4098717

PIN

(SUB FOR TH103630)

2шт.

27

4098716

RING

(SUB FOR TH103631)

2шт.

28

3029025

PIN FASTENER

(SUB FOR TH103632)

2шт.

30

3030167

PIN FASTENER

(SUB FOR TH103633)

1шт.

31

4109670

WASHER

(SUB FOR TH103634)

ARшт.

32

4109671

WASHER

(SUB FOR TH103635)

ARшт.
