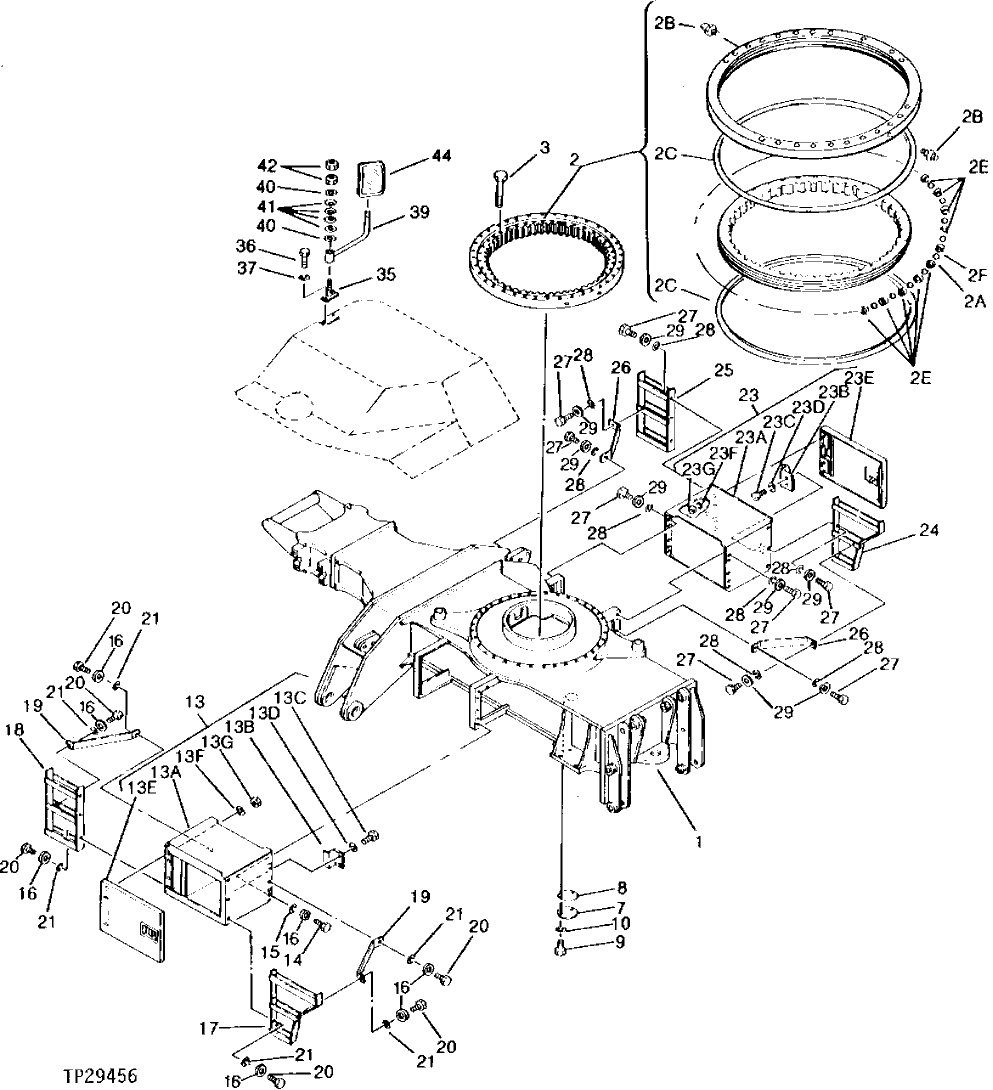

Запчасти John Deere 95 2 - CHASSIS 1740 - FRAME, CHASSIS OR SUPPORTING STRUCTURE 17

1

FRAME

( TH104227 NO LONGER AVAILABLE)

1шт.

2

9035176

SWING BEARING

(SUB FOR TH104228)

1шт.

2A

4428919

BALL

(SUB FOR AT182113 AND TH104229 AND 4355728)

ARшт.

2B

TH100074

LUBRICATION FITTING

3шт.

2C

T203958

SEAL

(SUB FOR T191211, TH104230, TH103078 OR TH108166, AT131484 OR AT131732) (SUB FOR 4199645)

2шт.

TY21517

ADHESIVE

(NOT ILLUSTRATED)

1шт.

AT66866

FLUID

(NOT ILLUSTRATED)

1шт.

2E

4127708

SPACER

(SUB FOR TH104232)

95шт.

2F

4127707

SPACER

(SUB FOR TH104233)

14шт.

3

J932003

BOLT

(SUB FOR TH104234)

36шт.

7

4093615

PLATE

(SUB FOR TH104235) (SUB FOR TH112221)

1шт.

8

4150828

GASKET

(SUB FOR TH104236)

1шт.

9

19M7938

CAP SCREW

2шт.

10

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

2шт.

13

9060180

TOOLBOX

(SUB FOR TH104237)

1шт.

13A

7013931

TOOLBOX

(SUB FOR TH104238)

1шт.

13B

4155941

LATCH

(SUB FOR TH104239)

1шт.

13C

19M8765

SCREW

M12 X 28, (SUB FOR 19M3204) (SUB FOR TH101717, ALONG WITH 12M7067)

2шт.

12M7058

LOCK WASHER

12 MM, (SUB FOR 12M7067)

2шт.

13D

12H301

LOCK WASHER

1/2", (SUB FOR TH100413)

2шт.

13E

7013937

COVER

(SUB FOR TH104240)

1шт.

13F

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

4шт.

13G

14M7274

NUT

M10

4шт.

14

19M8765

SCREW

M12 X 28, (SUB FOR 19M3204) (SUB FOR TH101717, ALONG WITH 12M7067)

8шт.

15

12H301

LOCK WASHER

1/2", (SUB FOR TH100413)

8шт.

16

12M7058

LOCK WASHER

12 MM, (SUB FOR 12M7067)

18шт.

17

8028714

STEP

(SUB FOR TH104241)

1шт.

18

8028715

STEP

(SUB FOR TH104242)

1шт.

19

4155743

SUPPORT

(SUB FOR TH104243)

2шт.

20

19M8765

SCREW

M12 X 28, (SUB FOR 19M3204) (SUB FOR TH101717, ALONG WITH 12M7067)

10шт.

21

12H301

LOCK WASHER

1/2", (SUB FOR TH100413)

10шт.

23

9066742

TOOLBOX

(SUB FOR TH104244)

1шт.

23A

7016730

TOOLBOX

(SUB FOR TH104245)

1шт.

23B

4155941

LATCH

(SUB FOR TH104239)

1шт.

23C

19M8765

SCREW

M12 X 28, (SUB FOR 19M3204) (SUB FOR TH101717, ALONG WITH 12M7067)

2шт.

12M7058

LOCK WASHER

12 MM, (SUB FOR 12M7067)

2шт.

23D

12H301

LOCK WASHER

1/2", (SUB FOR TH100413)

2шт.

23E

7015338

COVER

(SUB FOR TH104246)

1шт.

23F

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

4шт.

23G

14M7274

NUT

M10

4шт.

24

8035075

STEP

(SUB FOR TH104247)

1шт.

25

8035076

STEP

(SUB FOR TH104248)

1шт.

26

4155743

SUPPORT

(SUB FOR TH104243)

2шт.

27

19M8765

SCREW

M12 X 28, (SUB FOR 19M3204) (SUB FOR TH101717, ALONG WITH 12M7067)

18шт.

28

12H301

LOCK WASHER

1/2", (SUB FOR TH100413)

18шт.

29

12M7058

LOCK WASHER

12 MM, (SUB FOR 12M7067)

18шт.

35

BRACKET

( 9722060 NO LONGER AVAILABLE) (SUB FOR TH104249)

1шт.

36

19M8011

CAP SCREW

M12 X 30

2шт.

12M7058

LOCK WASHER

12 MM, (SUB FOR 12M7067)

2шт.

37

12H301

LOCK WASHER

1/2", (SUB FOR TH100413)

2шт.

39

8017069

SUPPORT

(SUB FOR TH104251)

1шт.

40

24M7053

WASHER

17 X 30 X 3 MM, (SUB FOR TH100520)

2шт.

41

4101568

WASHER

(SUB FOR TH104252)

4шт.

42

14M7276

NUT

M16, (SUB FOR TH101725)

2шт.

44

4317906

REAR VIEW MIRROR

(SUB FOR 4165676) ( TH104119 NO LONGER AVAILABLE)

1шт.
