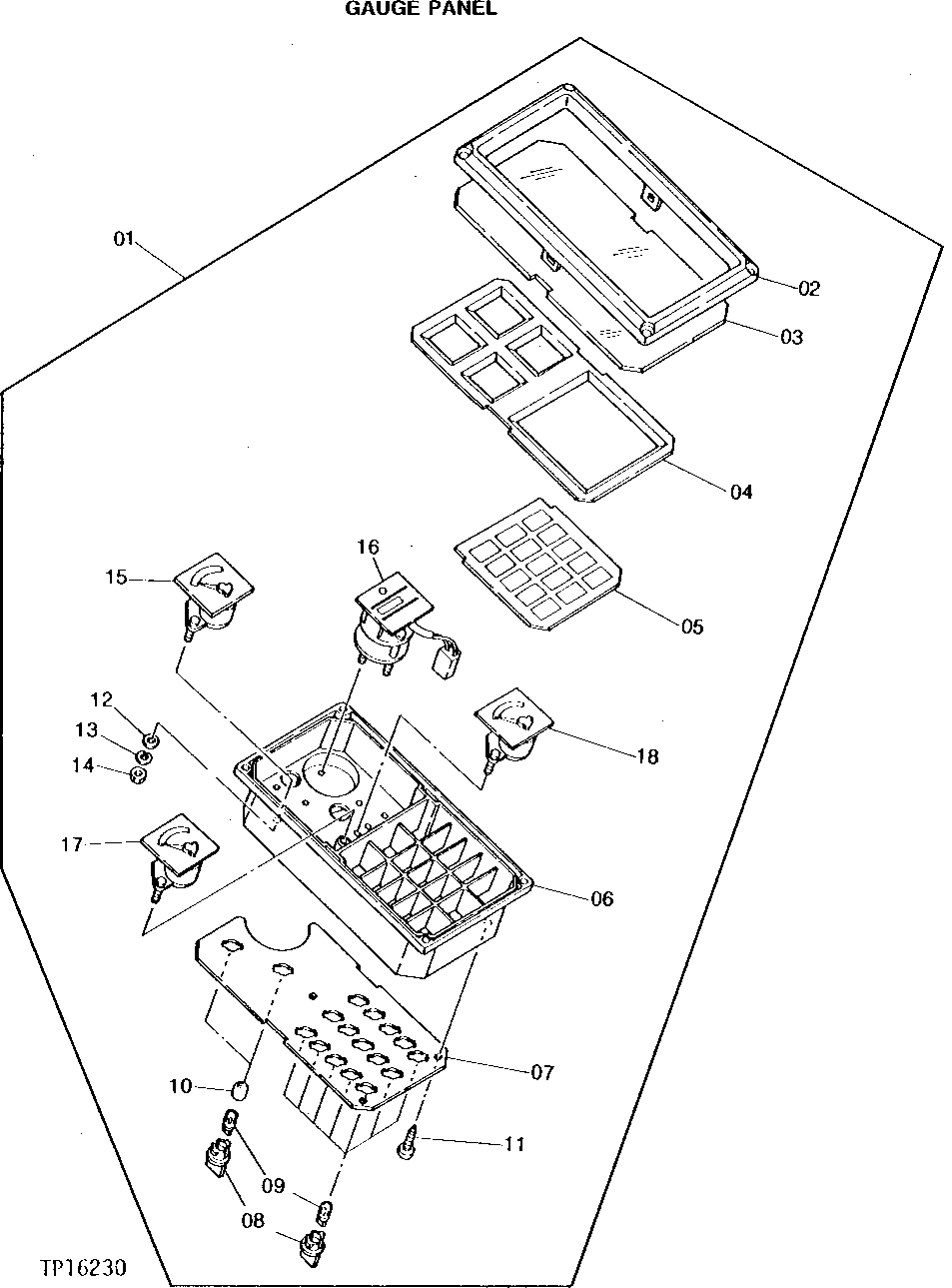

Запчасти John Deere 95 2 - GAUGE PANEL 1676 - ELECTRICAL SYSTEMS 16

1

PANEL

( TH104062 NO LONGER AVAILABLE)

1шт.

2

4149054

BEZEL

(SUB FOR TH100601)

1шт.

3

4149055

COVER

(SUB FOR TH100602)

1шт.

4

4149056

LENS

(SUB FOR TH100603)

1шт.

5

4186189

LENS

(SUB FOR TH104063)

1шт.

6

4149061

HOUSING

(SUB FOR TH100605)

1шт.

7

4149064

PRINTED CIRCUIT

(SUB FOR TH102143)

1шт.

8

4127783

SOCKET

(SUB FOR TH100607)

17шт.

9

57M7169

BULB

17шт.

10

4149128

LENS

(SUB FOR TH100609)

2шт.

11

4149067

SCREW

(SUB FOR TH100610)

3шт.

12

24M7029

SHIM

0.500 MM, (SUB FOR TH100611)

15шт.

13

12H233

LOCK WASHER

3.175 MM, (SUB FOR TH100580) (SUB FOR 12M7048)

15шт.

14

14M7030

NUT

M3

15шт.

15

4142553

TEMPERATURE GAUGE

(SUB FOR TH100613)

1шт.

16

4142552

HOUR METER

(SUB FOR TH100614)

1шт.

17

4153470

PRESSURE GAUGE

(SUB FOR TH104064)

1шт.

18

4142554

LEVEL GAUGE

(SUB FOR TH100616)

1шт.
