Запчасти John Deere 95 6 - LEAD WIRE KIT 1674 - ELECTRICAL SYSTEMS 16

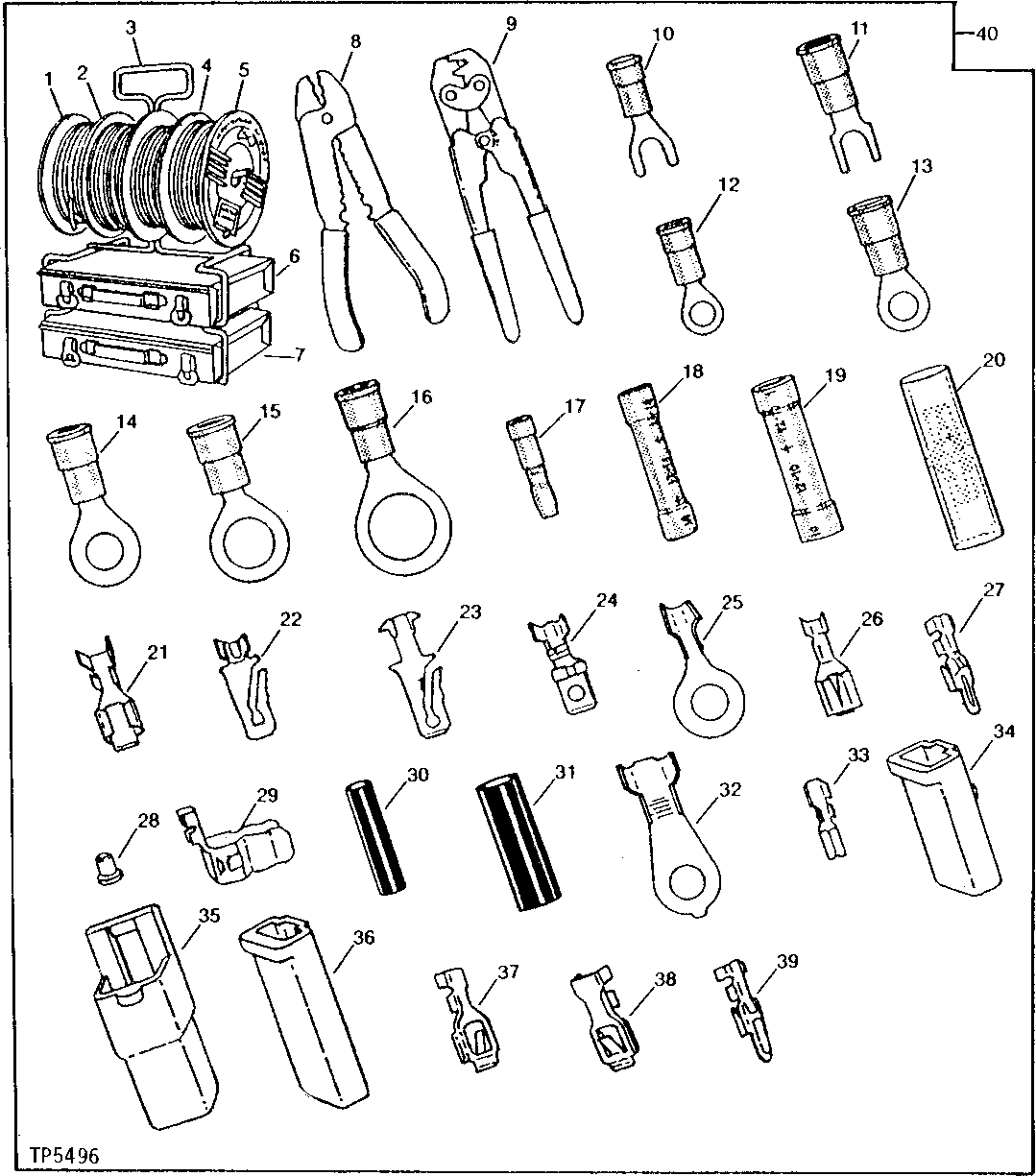

Схема запчастей John Deere 95 - 6 - LEAD WIRE KIT 1674 - ELECTRICAL SYSTEMS 16

Артикул

Название

Примечание

Количество

1

R66319

WIRING LEAD

CABLE, PRIMARY, 14 GA., 30,480 MM (100 FT.) (1 SPOOL)

1шт.

2

R65593

WIRING LEAD

CABLE, PRIMARY, 16 GA., 30,480 MM (100 FT.) (1 SPOOL)

1шт.

3

R65608

RACK

1шт.

4

R66321

WIRING LEAD

CABLE, PRIMARY, 10 GA., 15,240 MM (50 FT.) (1 SPOOL)

1шт.

5

R66320

WIRING LEAD

CABLE, PRIMARY, 12 GA., 30,480 MM (100 FT.) (1 SPOOL)

1шт.

6

R65609

CONTAINER

32 COMPARTMENT

1шт.

7

R65610

CONTAINER

11 COMPARTMENT

1шт.

8

R32011

TOOL

WIRE STRIPPING

1шт.

9

R65594

TOOL

WIRE CRIMPING

1шт.

10

R32016

ELEC. CONNECTOR TERMINAL

PRIMARY, 14-16 GA., NO. 10 SPADE

1шт.

11

R32017

ELEC. CONNECTOR TERMINAL

PRIMARY, 10-12 GA., NO. 10 SPADE

1шт.

12

R32018

ELEC. CONNECTOR TERMINAL

PRIMARY, 14-16 GA., NO. 10 EYELET

1шт.

13

R32019

ELEC. CONNECTOR TERMINAL

PRIMARY, 10-12 GA., NO. 10 EYELET

1шт.

14

R32021

ELEC. CONNECTOR TERMINAL

PRIMARY, 10-12 GA., 1/4" EYELET

1шт.

15

R32022

ELEC. CONNECTOR TERMINAL

PRIMARY, 10-12 GA., 3/8" EYELET

1шт.

16

R32023

ELEC. CONNECTOR TERMINAL

PRIMARY, 10-12 GA., 1/2" EYELET

1шт.

17

R32026

ELEC. CONNECTOR TERMINAL

MALE BULLETT

1шт.

18

R32027

ELEC. CONNECTOR TERMINAL

SPLICE, 14-16 GA

1шт.

19

R32028

ELEC. CONNECTOR TERMINAL

SPLICE, 10-12 GA

1шт.

20

R32029

ELEC. CONNECTOR TERMINAL

2-WIRE BULLETT CONNECTOR

1шт.

21

R65595

ELEC. CONNECTOR TERMINAL

FEMALE, 10 GA

1шт.

22

R65596

ELEC. CONNECTOR TERMINAL

MALE, 10 GA. OR TWO 14 GA. CABLES

1шт.

23

R65597

ELEC. CONNECTOR TERMINAL

MALE, 14-16 GA

1шт.

24

R65598

ELEC. CONNECTOR TERMINAL

MALE, SHORT, 14-16 GA

1шт.

25

R65599

ELEC. CONNECTOR TERMINAL

14-16 GA., 1/4" EYELET

1шт.

26

R65600

ELEC. CONNECTOR TERMINAL

FEMALE, 14-16 GA

1шт.

27

R65601

ELEC. CONNECTOR TERMINAL

TWIN-LOCK, TWO 16 GA. CABLES

1шт.

28

R65602

ELEC. CONNECTOR TERMINAL

BULB SOCKET, 16-18 GA

1шт.

29

R65603

ELEC. CONNECTOR ACCESSORY

FUSE

1шт.

30

R65604

ELEC. CONNECTOR ACCESSORY

14-18 GA

1шт.

31

R65605

ELEC. CONNECTOR ACCESSORY

8-12 GA

1шт.

32

R65606

ELEC. CONNECTOR TERMINAL

6-8 GA., 1/4" EYELET

1шт.

33

R65607

ELEC. CONNECTOR TERMINAL

18-20 GA

1шт.

34

T28583

ELEC. CONNECTOR HOUSING

ONE CONTACT LOCK-TYPE, MALE

1шт.

35

T28585

ELECTRICAL CONNECTOR ASSY

ONE CONTACT LOCK-TYPE, FEMALE

1шт.

36

U46370

ELECTRICAL CONNECTOR ASSY

ONE CONTACT SINGLE BODY, MALE

1шт.

37

U46662

ELEC. CONNECTOR TERMINAL

MALE

1шт.

38

U46663

ELEC. CONNECTOR TERMINAL

MALE

1шт.

39

U46664

ELEC. CONNECTOR TERMINAL

MALE

1шт.

40

PM797NA

KIT

(SUB FOR RE11154) TERMINAL AND WIRING

1шт.

Выбрано товаров: 40
