2 - PARKING BRAKE

Запчасти John Deere 95 2 - PARKING BRAKE 1111 - PARK BRAKE 11

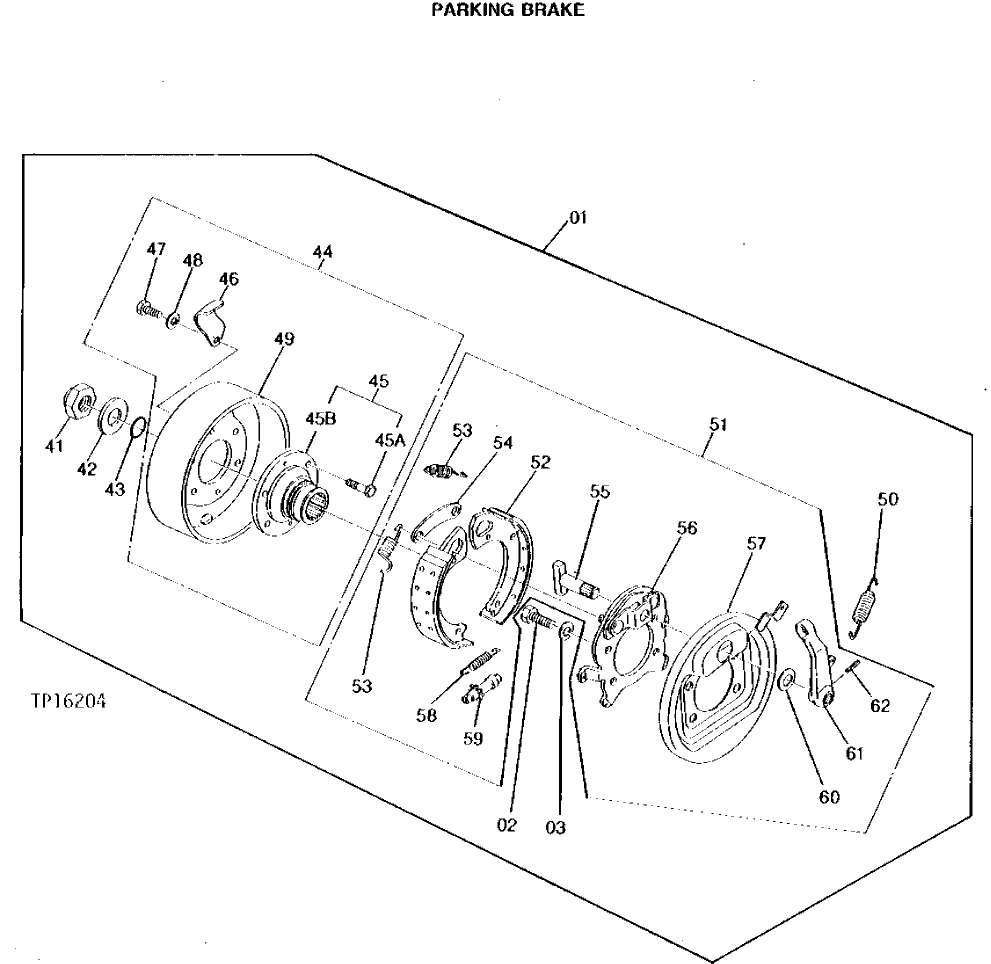

Схема запчастей John Deere 95 - 2 - PARKING BRAKE 1111 - PARK BRAKE 11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BRAKE

( TH105311 NO LONGER AVAILABLE, ORDER INDIVIDUAL COMPONENTS)

1шт.

2

19M8796

SCREW

M14 X 55, (SUB FOR TH105249, THIS APPLICATION) (SUB FOR TH105539, 19M8055)

4шт.

3

0268418

WASHER

(SUB FOR TH105116, THIS APPLICATION) (SUB FOR TH105540)

4шт.

41

0266503

LOCK NUT

(SUB FOR TH105086)

2шт.

42

0268401

WASHER

(SUB FOR TH105312)

2шт.

43

0268402

O-RING

(SUB FOR TH105313)

1шт.

44

0268403

DRUM

(SUB FOR TH105314)

1шт.

45

FLANGE

(SUB TH105314)

1шт.

45A

BOLT

(SUB TH105314)

4шт.

45B

FLANGE

(SUB TH105314)

1шт.

46

COVER

(SUB TH105314)

2шт.

47

BOLT

(SUB TH105314)

2шт.

48

LOCK WASHER

(SUB TH105314)

2шт.

49

DRUM

(SUB TH105314)

1шт.

50

0268404

EXTENSION SPRING

(SUB FOR TH105315)

1шт.

51

BRAKE

( TH105316 NO LONGER AVAILABLE)

1шт.

52

4391610

BRAKE SHOE

(SUB FOR TH105317) (SUB FOR AT183503)

2шт.

53

0268407

EXTENSION SPRING

(SUB FOR TH105318)

2шт.

54

0268408

PLATE

(SUB FOR TH105319)

1шт.

55

0268409

SHAFT

(SUB FOR TH105320)

1шт.

56

0268410

PLATE

(SUB FOR TH105321)

1шт.

57

0268411

COVER

(SUB FOR TH105322)

1шт.

58

0268421

EXTENSION SPRING

(SUB FOR TH105323)

1шт.

59

0268413

SCREW

(SUB FOR TH105324)

1шт.

60

0268414

WASHER

(SUB FOR TH105325)

1шт.

61

0268415

LEVER

(SUB FOR TH105326)

1шт.

62

0268416

PIN

(SUB FOR TH105327)

1шт.
