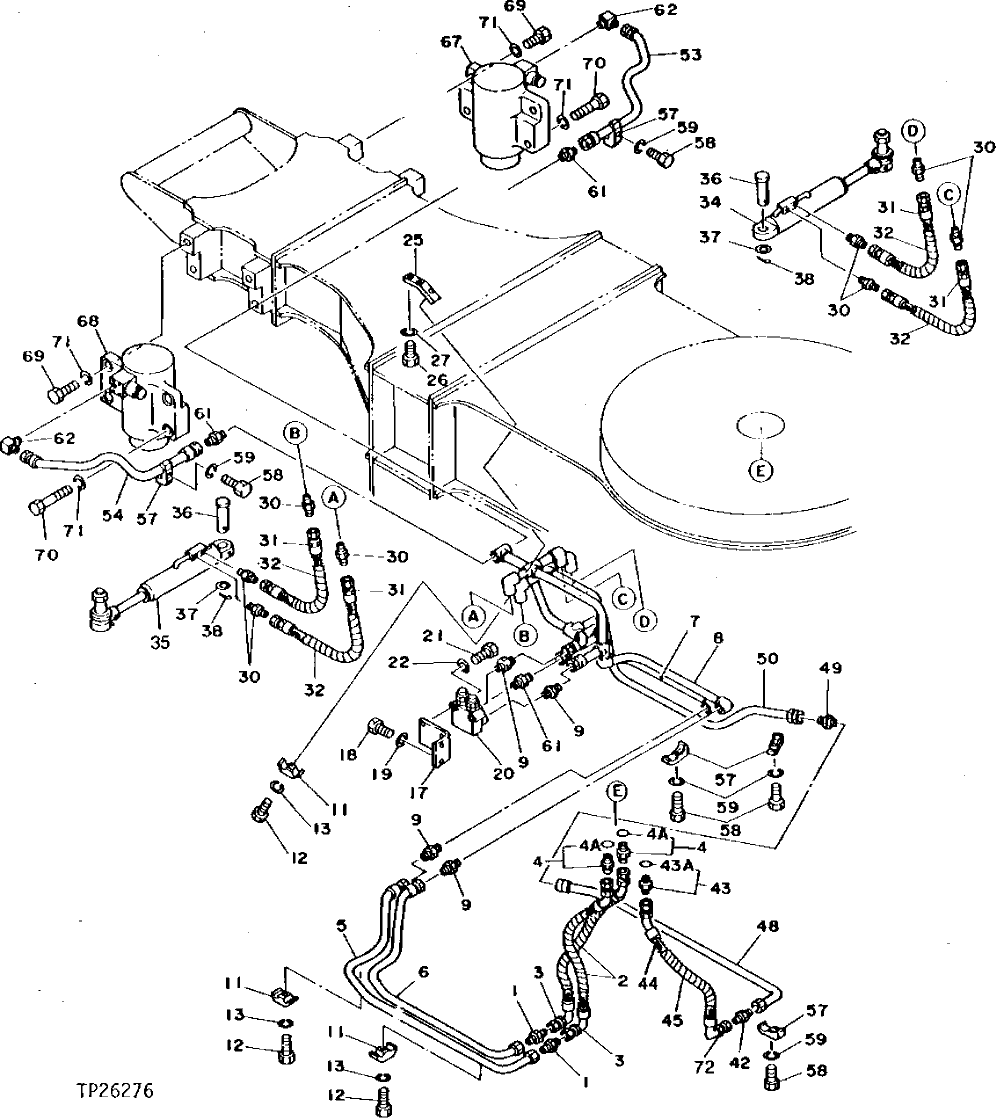

Запчасти John Deere 95 10 - STEERING HYDRAULICS 960 - STEERING SYSTEM 9

1

T115957

ADAPTER FITTING

(SUB FOR TH101034)

2шт.

2

3052919

TUBE

(SUB FOR TH100996) (SUB FOR AT138222) (CUT TO LENGTH)

2шт.

3

4182726

HYDRAULIC HOSE - FABRICATE

(SUB FOR TH104313)

2шт.

4

4200466

ADAPTER FITTING

(SUB FOR TH101064) (SUB FOR TH108320)

2шт.

4A

CH11570

O-RING

(SUB FOR TH100049)

1шт.

5

7016404

OIL LINE

(SUB FOR TH104314)

1шт.

6

7016405

OIL LINE

(SUB FOR TH104315)

1шт.

7

7016406

OIL LINE

(SUB FOR TH104316)

1шт.

8

7016407

OIL LINE

(SUB FOR TH104317)

1шт.

9

94-1302

ADAPTER FITTING

(SUB FOR TH101302)

4шт.

11

4053593

CLAMP

(SUB FOR TH100969)

4шт.

12

19M7358

CAP SCREW

M10 X 40

4шт.

13

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

4шт.

17

4172050

BRACKET

(SUB FOR TH104318)

1шт.

18

19M7938

CAP SCREW

M10 X 20

2шт.

19

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

2шт.

20

4149020

RELIEF VALVE

(SUB FOR TH104319)

1шт.

21

19M7184

CAP SCREW

M8 X 55

2шт.

22

12M7056

LOCK WASHER

8 MM, (SUB FOR TH100529) (SUB FOR 12M7065)

2шт.

25

4152180

BRACKET

(SUB FOR TH104321)

2шт.

26

19M7938

CAP SCREW

M10 X 20

4шт.

27

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

4шт.

30

T115957

ADAPTER FITTING

(SUB FOR TH101034)

8шт.

31

AR98204

HYDRAULIC HOSE

9/16" X 407 MM (16") X 9/16", (SUB FOR TH104322)

4шт.

32

E90991

HOSE GUARD

(SUB FOR TH104323, TH106022, 4133527 OR 4327293) (CUT TO 600MM LENGTH)

4шт.

34

4193206

HYDRAULIC CYLINDER

(SUB FOR TH104324) (ALSO ORDER TH100074, (2) TH100653, TH100689, TH104979, TH104989 AND 11M7034) (SUB FOR TH105585) RIGHT

1шт.

35

4193206

HYDRAULIC CYLINDER

(SUB FOR TH104325) (ALSO ORDER TH100074, (2) TH100653, TH100689, TH104979, TH104989 AND 11M7034) (SUB FOR TH105585)

1шт.

36

4092954

PIN FASTENER

(SUB FOR TH104326)

2шт.

37

24M7202

WASHER

31 X 56 X 4 MM

2шт.

38

11M7073

COTTER PIN

8 X 63 MM

2шт.

42

T115957

ADAPTER FITTING

(SUB FOR TH101034)

1шт.

43

4200466

ADAPTER FITTING

(SUB FOR TH101064) (SUB FOR TH108320)

2шт.

43A

CH11570

O-RING

(SUB FOR TH100049)

1шт.

44

AR86055

HYDRAULIC HOSE

9/16" X 622 MM (24-1/2") X 9/16", (SUB FOR TH104388, ALONG WITH AU43156)

1шт.

45

3052919

TUBE

(SUB FOR TH100996) (SUB FOR AT138222) (CUT TO LENGTH)

1шт.

48

9724383

OIL LINE

(SUB FOR TH104330)

1шт.

49

94-1302

ADAPTER FITTING

(SUB FOR TH101302)

1шт.

50

7015480

OIL LINE

(SUB FOR TH104331)

1шт.

53

8032269

OIL LINE

(SUB FOR TH104332)

1шт.

54

8032268

OIL LINE

(SUB FOR TH104333)

1шт.

57

4138227

CLAMP

(SUB FOR TH101062)

5шт.

58

19M7358

CAP SCREW

M10 X 40

5шт.

59

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

5шт.

61

94-1302

ADAPTER FITTING

(SUB FOR TH101302)

3шт.

62

94-1402

ELBOW FITTING

(SUB FOR TH102395)

2шт.

67

4193208

HYDRAULIC CYLINDER

(SUB FOR TH104335) (SUB FOR TH105586)

1шт.

68

4193208

HYDRAULIC CYLINDER

(SUB FOR TH104334) (SUB FOR TH105586)

1шт.

69

19M8287

CAP SCREW

M24 X 80

4шт.

70

19M7780

CAP SCREW

M24 X 110

4шт.

71

12H234

LOCK WASHER

1", (SUB FOR TH103080)

8шт.

72

AU43156

ELBOW FITTING

1шт.
