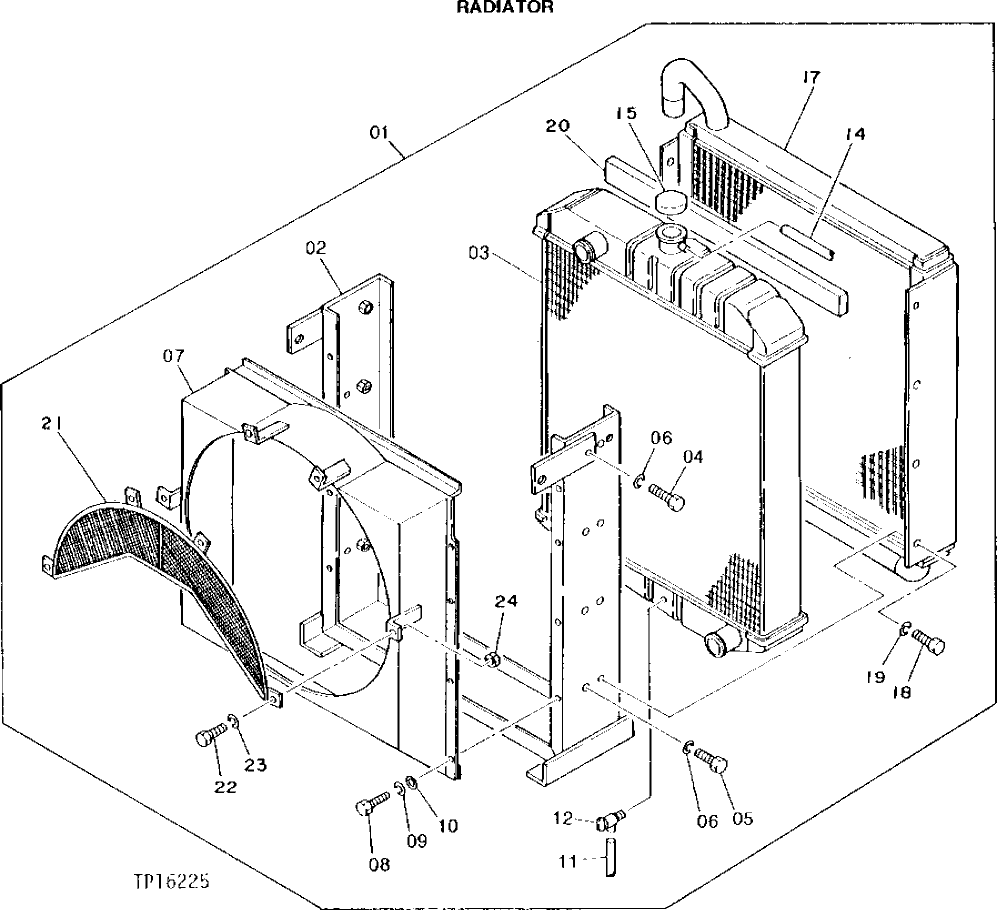

Запчасти John Deere 95 4 - RADIATOR 510 - ENGINE AUXILIARY SYSTEM 5

1

RADIATOR

( TH103659 NO LONGER AVAILABLE)

1шт.

2

4175192

FRAME

(SUB FOR TH103660)

1шт.

3

4186186

RADIATOR

(SUB FOR TH103661)

1шт.

4

T116333

BOLT

(SUB FOR TH100903)

2шт.

5

19M8784

SCREW

M10 X 20, (SUB FOR TH100670, 19M8356)

6шт.

6

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

8шт.

7

4193218

SHROUD

(SUB FOR TH103662 OR TH105589) (SUB FOR TH107969)

1шт.

8

19M8425

CAP SCREW

M6 X 16

8шт.

9

12M7006

LOCK WASHER

6 MM, (SUB FOR TH100548)

8шт.

10

24M7054

WASHER

6.400 X 12 X 1.600 MM, (SUB FOR TH100278)

8шт.

11

HOSE

(SUB FOR TH103663 OR T115300) (CUT TO LENGTH FROM TY22326 BULK MATERIAL)

1шт.

12

4175195

DRAIN PLUG

(SUB FOR TH103664)

1шт.

14

HOSE

( TH103665 NO LONGER AVAILABLE) (CUT TO LENGTH FROM T79477 BULK MATERIAL)

1шт.

15

4067603

FILLER CAP

(SUB FOR TH103666) (SUB FOR TH100909)

1шт.

17

4175197

OIL COOLER

(SUB FOR TH103667)

1шт.

18

M111025

BOLT

(SUB FOR TH101167)

8шт.

19

12M7066

LOCK WASHER

10 MM, (SUB FOR TH100417)

8шт.

20

4175198

ISOLATOR

(SUB FOR TH103668)

8шт.

21

4186188

GUARD

(SUB FOR TH103669)

1шт.

22

19M7932

CAP SCREW

M8 X 16

4шт.

23

12M7056

LOCK WASHER

8 MM, (SUB FOR TH100529) (SUB FOR 12M7065)

4шт.

24

14M7273

NUT

M8

4шт.
