Запчасти John Deere 95 1 - FLYWHEEL AND FLYWHEEL HOUSING 433 - ENGINE 4

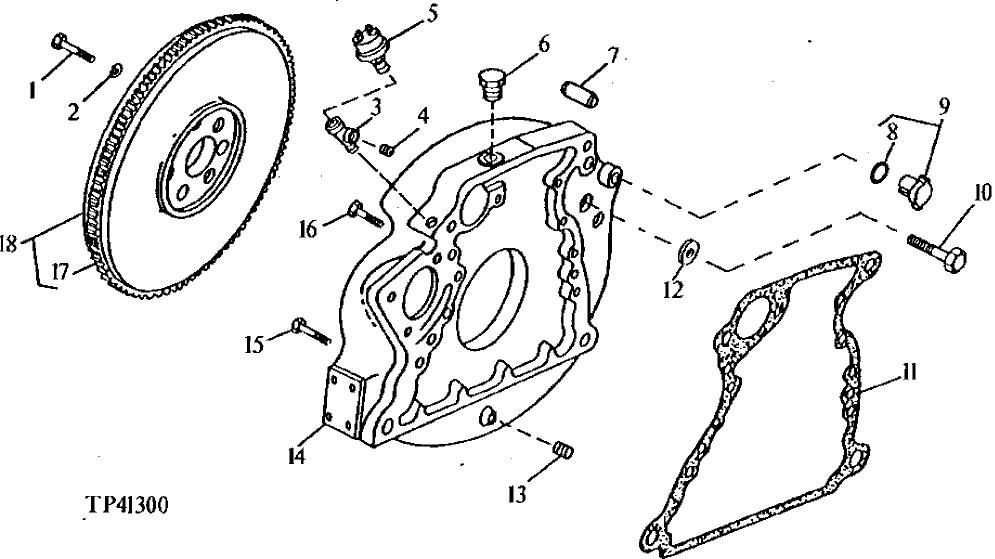

Схема запчастей John Deere 95 - 1 - FLYWHEEL AND FLYWHEEL HOUSING 433 - ENGINE 4

Артикул

Название

Примечание

Количество

1

19H2993

CAP SCREW

1/2" X 1-1/2"

4шт.

2

T23891

WASHER

4шт.

3

R70752

TEE FITTING

1шт.

4

15H638

PIPE PLUG

1/8"

1шт.

5

AT157548

SWITCH

(SUB FOR AT157548) (ENGINE HOUR METER)

1шт.

37H90

SCREW

0.164" X 5/16", (NOT SHOWN)

2шт.

6

T22867

DRAIN PLUG

(USE WITH R120586)

1шт.

7

R48685

DOWEL PIN

2шт.

8

R27149

O-RING

1шт.

9

AR61533

PLUG

1шт.

10

19H2351

CAP SCREW

1/2" X 1/2"

1шт.

11

R70483

GASKET

1шт.

12

T20168

WASHER

1шт.

13

RE57836

PIPE PLUG

1/2", (SUB FOR 15H561)

1шт.

14

R120586

HOUSING

(SUB FOR R79635, R110188 OR R101113) (ALSO ORDER T22867)

1шт.

15

19H2599

CAP SCREW

5/8" X 2-1/2"

4шт.

16

19H3385

CAP SCREW

1/2" X 1-1/8"

8шт.

17

R28811

RING GEAR

(129 TEETH)

1шт.

18

RE46293

FLYWHEEL

(MARKED R109008) (SUB FOR RE24281, MARKED R84485)

1шт.

Выбрано товаров: 19
