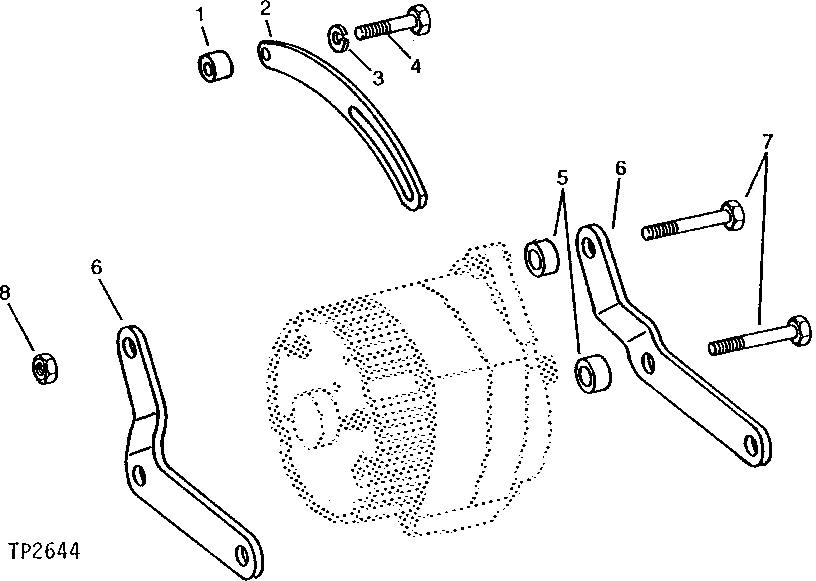

Запчасти John Deere 95 1 - ALTERNATOR MOUNTING BRACKETS 423 - ENGINE 4

1

28H1518

WASHER

PIPE, 3/8" X 5/16"

1шт.

2

R108404

STRAP

(SUB FOR T20204 AND R107734)

1шт.

3

12H304

LOCK WASHER

3/8"

1шт.

24H1621

WASHER

11/32" X 1" X 0.220"

1шт.

4

19H2676

CAP SCREW

3/8" X 1"

1шт.

5

28H862

SPACER

PIPE

2шт.

6

R57260

BRACKET

2шт.

7

19H2458

CAP SCREW

3/8" X 3"

2шт.

24H1304

WASHER

13/32" X 23/32" X 0.120", (NOT ILLUSTRATED)

2шт.

8

14H812

NUT

3/8"

2шт.
