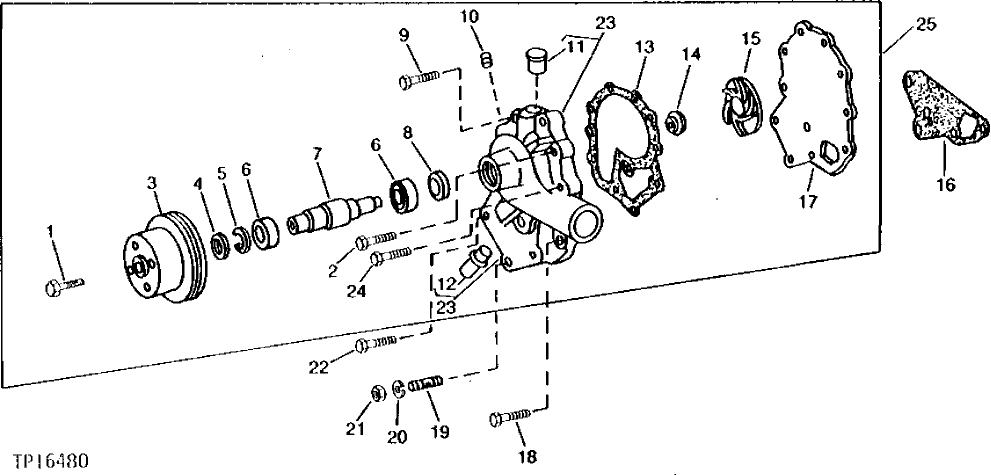

Запчасти John Deere 95 1 - WATER PUMP ASSEMBLY 417 - ENGINE 4

1

19H2993

CAP SCREW

1/2" X 1-1/2"

1шт.

2

19H2676

CAP SCREW

3/8" X 1"

1шт.

3

R82945

PULLEY

1шт.

4

AR90861

SEAL

1шт.

5

R62191

SNAP RING

1.7 MM (.067")

ARшт.

R62192

SNAP RING

2.0 MM (.077")

ARшт.

R62193

SNAP RING

2.2 MM (.087")

ARшт.

R62194

SNAP RING

2.5 MM (.097")

ARшт.

6

JD10329

BALL BEARING

(SUB FOR JD7686)

2шт.

7

R82052

SHAFT

(SUB FOR R72140)

1шт.

8

AR90860

SEAL

1шт.

9

19H2633

CAP SCREW

3/8" X 1-1/2"

4шт.

19H1726

CAP SCREW

3/8" X 2-1/4"

1шт.

10

15H584

PIPE PLUG

1/2", WITHOUT HEATER

1шт.

11

R40083

HOSE FITTING

1шт.

12

R34985

LINE

1шт.

13

R56809

GASKET

1шт.

14

AR101549

SEAL KIT

1шт.

15

R99122

IMPELLER

(USE IF AVAILABLE)

1шт.

R56812

IMPELLER

(SUB FOR R99122)

1шт.

16

T20243

GASKET

1шт.

17

R56811

COVER

1шт.

18

19H3031

CAP SCREW

3/8" X 2-1/2"

1шт.

19

T25701

STUD

1шт.

20

12H304

LOCK WASHER

3/8"

1шт.

21

14H812

NUT

3/8"

1шт.

22

19H3217

CAP SCREW

3/8" X 1-3/4"

1шт.

23

RE16657

HOUSING

(MARKED R80168)

1шт.

24

19H1726

CAP SCREW

3/8" X 2-1/4"

1шт.

25

RE22469

WATER PUMP

1шт.
