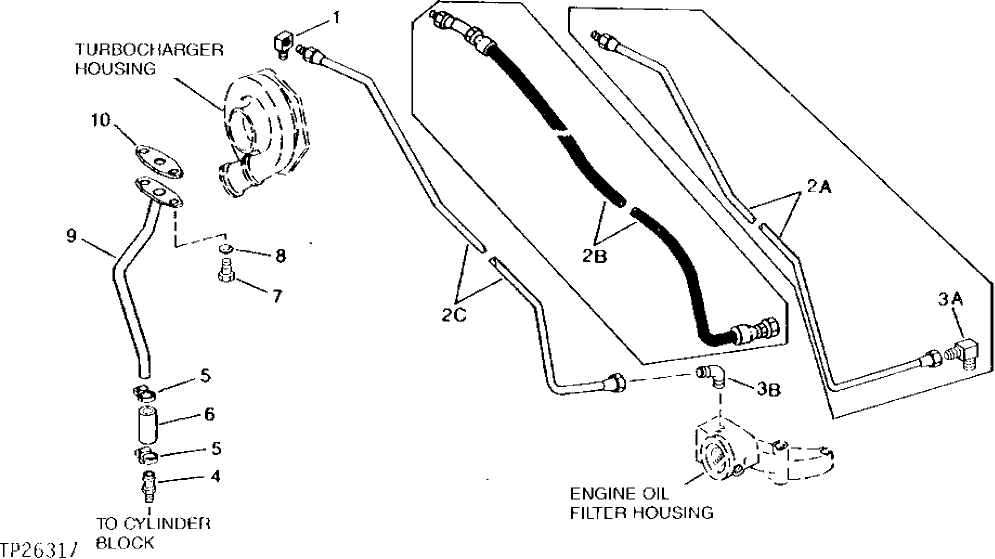

Запчасти John Deere 95 6 - TURBOCHARGER OIL LINES 416 - ENGINE 4

1

T11180

ELBOW FITTING

1шт.

2A

RE23745

OIL LINE

1шт.

2B

RE35804

HOSE

(SUB RE29430)

1шт.

2C

RE29430

OIL LINE

1шт.

3A

AR26708

FITTING

1шт.

3B

T19898

FITTING

1шт.

4

R39503

FITTING

1шт.

5

TY22467

CLAMP

(SUB FOR AR21839, THIS APPLICATION) (SUB FOR AT145650)

2шт.

6

HOSE

(CUT TO LENGTH) (MAKE FROM R120013) (SUB FOR R81210)

1шт.

7

19H2284

CAP SCREW

3/8" X 7/8", (USE WITH RE19265)

2шт.

R124277

CAP SCREW

(USE WITH RE62097)

2шт.

8

12H304

LOCK WASHER

3/8", (USE WITH 19H2284)

2шт.

9

RE62097

OIL LINE

(SUB FOR RE19265) (ALSO ORDER (2) R124277)

1шт.

10

R105346

GASKET

(SUB FOR R43416)

1шт.
