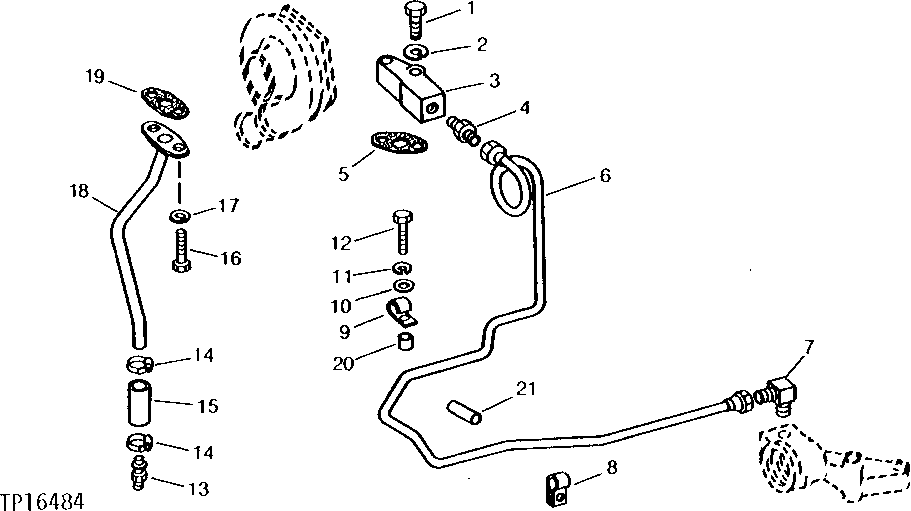

Запчасти John Deere 95 4 - TURBOCHARGER OIL LINES 416 - ENGINE 4

1

19H3552

CAP SCREW

5/16" X 1-1/2"

2шт.

2

12H303

LOCK WASHER

5/16"

2шт.

3

R43928

ADAPTER FITTING

1шт.

4

R44795

ADAPTER FITTING

1шт.

5

R43413

GASKET

1шт.

6

AR70692

OIL LINE

1шт.

7

AR26708

FITTING

1шт.

8

T13814

CLAMP

1шт.

9

M44204

CLAMP

1шт.

10

R64764

WASHER

1шт.

11

12H302

LOCK WASHER

1/4"

1шт.

12

19H2036

CAP SCREW

1/4" X 7/8"

1шт.

13

R39503

FITTING

1шт.

14

TY22467

CLAMP

(SUB FOR AR21839, THIS APPLICATION) (SUB FOR AT145650)

2шт.

15

HOSE

(CUT TO LENGTH) (MAKE FROM R120013) (SUB FOR R81210)

1шт.

16

19H2284

CAP SCREW

3/8" X 7/8", (USE WITH RE19265)

2шт.

R124277

CAP SCREW

(USE WITH RE62097)

2шт.

17

12H304

LOCK WASHER

3/8", (USE WITH 19H2284)

2шт.

18

RE62097

OIL LINE

(SUB FOR RE19265) (ALSO ORDER (2) R124277)

1шт.

19

R105346

GASKET

(SUB FOR R43416)

1шт.

20

28H1523

BUSHING

0.493" X 0.675" X 13/16"

1шт.

21

28H1518

WASHER

0.493" X 0.675" X 5/16"

1шт.
