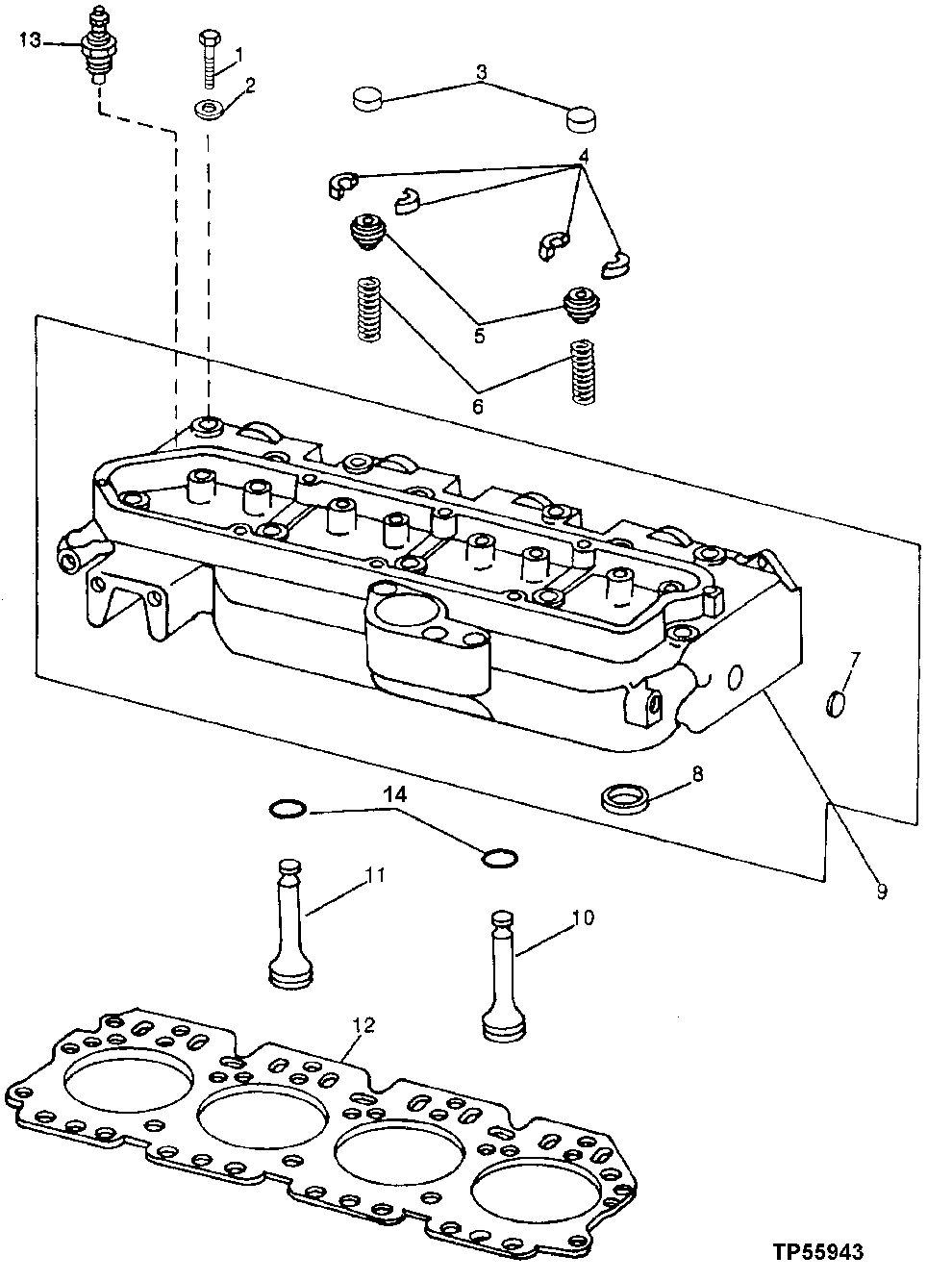

Запчасти John Deere 95 2 - CYLINDER HEAD, HEAD GASKET AND VALVES 409 - ENGINE 4

1

R85363

CAP SCREW

(SUB FOR R78558) 1/2" X 4-1/4"

18шт.

2

T20168

WASHER

(DO NOT USE WITH R85363)

18шт.

3

T20129

CAP

8шт.

4

T20077

RETAINER

16шт.

5

RE11410

ROTATOR

EXHAUST

8шт.

6

R26125

SPRING

8шт.

7

A3910R

PLUG

ARшт.

CD16284

PLUG

ARшт.

8

R73064

VALVE SEAT INSERT

INTAKE VALVE

1шт.

R73065

INSERT

EXHAUST VALVE

1шт.

9

CYLINDER HEAD

(MARKED R57078) (SUB RE56545) (RE16608 NO LONGER AVAILABLE)

1шт.

10

R89226

EXHAUST VALVE

STANDARD, (SUB FOR R73063) (ALSO ORDER R87627)

4шт.

R89227

EXHAUST VALVE

0.08 MM (.003") OVERSIZE, (SUB FOR R76539) (ALSO ORDER R87267)

4шт.

R89228

EXHAUST VALVE

0.38 MM (.015") OVERSIZE, (SUB FOR R76541) (ALSO ORDER R87627)

4шт.

R89229

EXHAUST VALVE

0.76 MM (.030") OVERSIZE, (SUB FOR R76542 AND R76543) (ALSO ORDER R87627)

4шт.

11

R83071

INTAKE VALVE

STANDARD, (SUB FOR R72611)

4шт.

R89223

INTAKE VALVE

0.08 MM (.003") OVERSIZE, (SUB FOR R76538 AND R88174) (ALSO ORDER R87627)

4шт.

R89224

INTAKE VALVE

0.36 MM (.015"N OVERSIZE, (SUB FOR R76540 AND R88175) (ALSO ORDER R87627)

4шт.

INTAKE VALVE

( R89225 NO LONGER AVAILABLE) 0.76 MM (.030") OVERSIZE, (SUB FOR R76542 AND R88176) (ALSO ORDER R87627)

4шт.

12

R91878

GASKET

1/2" X 4-1/2", (SUB FOR R80242)

1шт.

13

AT120609

SENDER

ENGINE COOLANT TEMPERATURE, (SUB FOR RE15720 AND AT115442)

1шт.

14

R87627

O-RING

ARшт.
