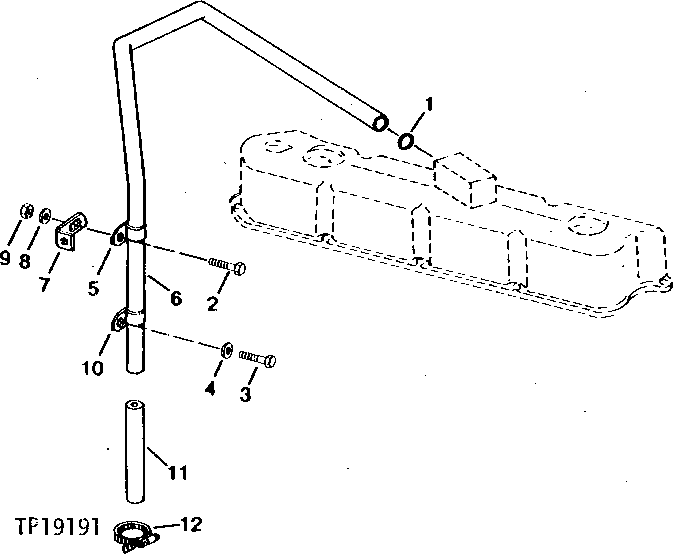

Запчасти John Deere 95 2 - ENGINE VENTILATOR TUBE 408 - ENGINE 4

1

R56463

O-RING

1шт.

2

19H1648

CAP SCREW

3/8" X 3/4"

1шт.

3

19H2664

CAP SCREW

5/16" X 3/4"

1шт.

4

24M7096

WASHER

0.413" X 0.709" X 0.063"

1шт.

5

R40791

CLAMP

2шт.

6

R109941

TUBE

(SUB FOR R59047)

1шт.

7

R73975

BRACKET

1шт.

8

24H1685

WASHER

11/32" X 47/64" X 0.083"

1шт.

9

14H812

NUT

3/8"

1шт.

10

T24432

CLAMP

1шт.

11

R88910

HOSE

DO NOT REPLACE

NAшт.

12

RE65978

CLAMP

(SUB FOR AT18904 OR RE62322) (VENT HOSE) DO NOT REPLACE

NAшт.
