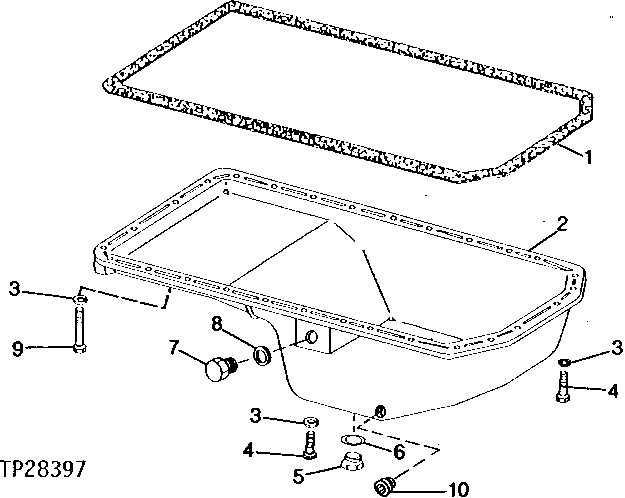

Запчасти John Deere 95 1 - ENGINE OIL PAN 407 - ENGINE 4

1

T22720

GASKET

1шт.

2

R82426

OIL PAN

(USE IF AVAILABLE) (SUB R105383 AND 15H690)

1шт.

R105383

OIL PAN

1шт.

3

12H304

LOCK WASHER

3/8"

28шт.

4

19H3065

CAP SCREW

3/8" X 2"

8шт.

5

M1746T

DRAIN PLUG

1шт.

6

T13213

WASHER

1шт.

7

R27474

DRAIN PLUG

2шт.

8

R47151

O-RING

2шт.

9

19H3239

CAP SCREW

3/8" X 1-1/4"

20шт.

10

15H690

PIPE PLUG

3/4", (USE WITH R105383)

1шт.
