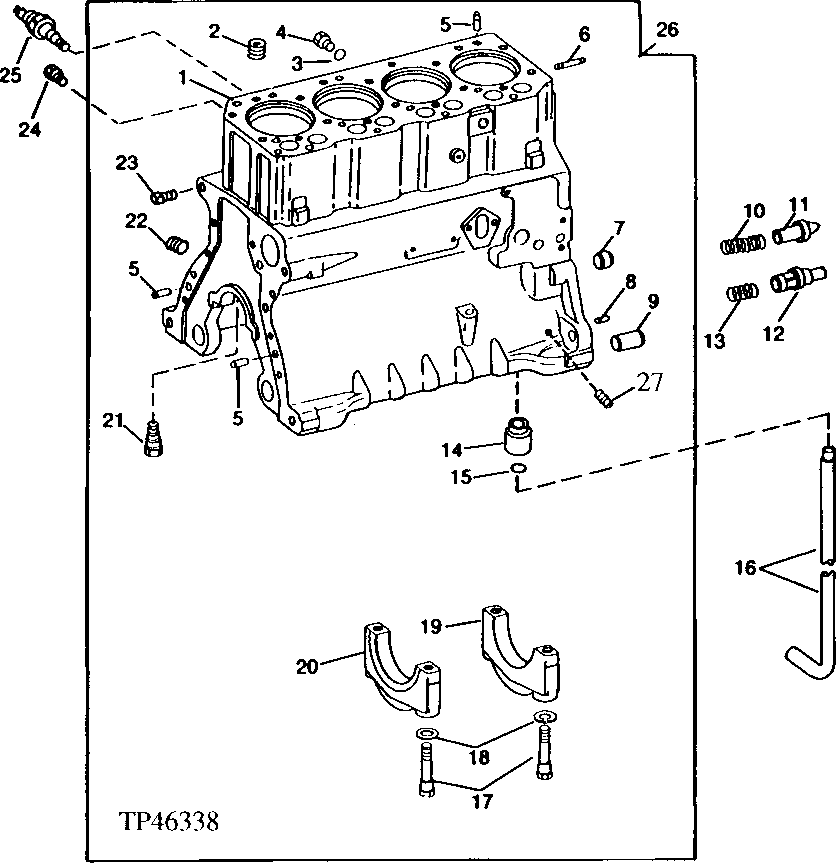

Запчасти John Deere 95 2 - REPLACEMENT CYLINDER BLOCK AND MAIN BEARING CAPS 404 - ENGINE 4

1

CYLINDER BLOCK

1шт.

2

RE57836

PIPE PLUG

1/2", (SUB FOR 15H561)

1шт.

3

U13639

O-RING

(WITHOUT ENGINE COOLANT HEATER)

1шт.

4

R39741

DRAIN PLUG

(WITHOUT ENGINE COOLANT HEATER)

1шт.

5

R48685

DOWEL PIN

4шт.

6

T25701

STUD

1шт.

R122226

STUD

(SUB FOR R122226)

1шт.

7

R26493

BUSHING

1шт.

8

R26650

DOWEL PIN

2шт.

9

R57160

BUSHING

6шт.

10

T27658

SPRING

1шт.

11

R83169

VALVE

1шт.

12

R111135

VALVE

1шт.

13

R111137

SPRING

1шт.

14

R115390

BUSHING

1шт.

15

R97185

O-RING

1шт.

16

R112867

OIL TUBE

ENGINE OIL PUMP

1шт.

17

T23474

CAP SCREW

10шт.

18

T20168

WASHER

10шт.

19

R65215

BEARING CAP

4шт.

20

R79089

CAP

1шт.

21

R54802

ORIFICE

4шт.

22

R104592

PIPE PLUG

5шт.

23

15H562

PIPE PLUG

1"

1шт.

24

R55233

PIPE PLUG

1шт.

25

AT85174

SWITCH

1шт.

26

RE50671

CYLINDER BLOCK

(MARKED R108755 OR R124851) (ALSO ORDER R83169, T27658, R111135, R111137 AND R112867)

1шт.

27

15H623

PIPE PLUG

3/8"

ARшт.
