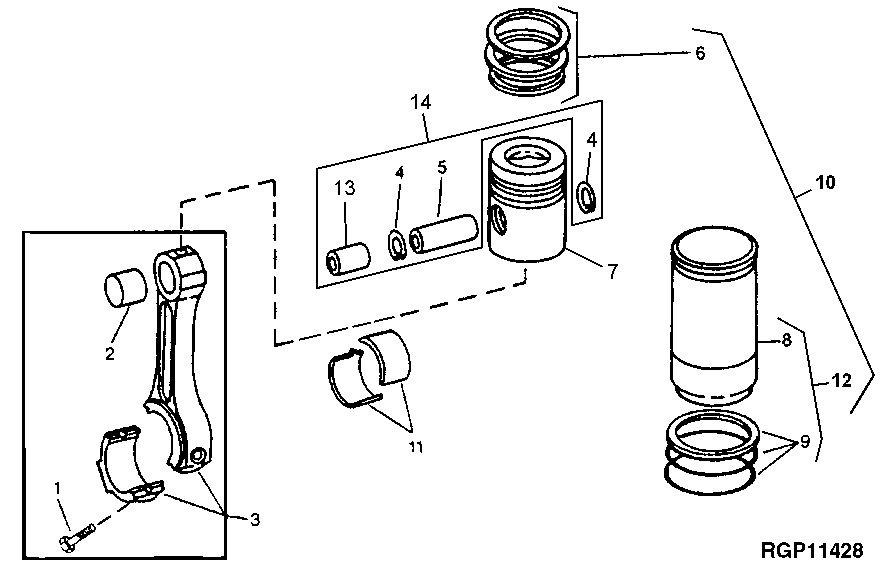

Запчасти John Deere 95 2 - CONNECTING ROD, PISTON, RINGS AND LINER 403 - ENGINE 4

1

R74195

SCREW

8шт.

2

BUSHING

( R56186 NO LONGER AVAILABLE)

4шт.

3

RE53716

CONNECTING ROD

(MARKED R116851) (SUB FOR AR66400) (MARKED R56187)

4шт.

4

R54114

SNAP RING

8шт.

5

PIN

( R124230 NO LONGER AVAILABLE,FURNISH RE63913)

4шт.

6

RE66820

PISTON RING KIT

(SUB FOR RE15674 AND RE48818)

4шт.

7

PISTON

(MARKED AR96389) ( AR96389 NO LONGER AVAILABLE,FURNISH RE19833)

4шт.

PISTON

(MARKED RE28920) ( RE28920 NO LONGER AVAILABLE,FURNISH RE53073)

4шт.

8

R121867

CYLINDER LINER

(SUB FOR R80500) (SUB RE500024)

4шт.

9

AR65507

O-RING KIT

4шт.

10

RE19833

KIT

(SUB FOR RE19832) (USED WITH PISTON MARKED AR96389)

4шт.

RE53073

PISTON-LINER KIT

(SUB FOR RE28977) (USED WITH PISTON MARKED RE28920)

4шт.

11

AR97517

BEARING

STANDARD (SET OF (2) R54801)

4шт.

BEARING

( AR97652 NO LONGER AVAILABLE) 0.05 MM (.002") UNDERSIZE (SET OF (2) R73595)

4шт.

AR97653

BEARING

0.25 MM (.010") UNDERSIZE (SET OF (2) R73596)

4шт.

AR97654

BEARING

0.51 MM (.020") UNDERSIZE (SET OF (2) R73597)

4шт.

AR97655

BEARING

0.76 MM (.030") UNDERSIZE (SET OF (2) R73598)

4шт.

12

RE500024

CYLINDER LINER

4шт.

13

BUSHING

4шт.

14

RE63913

KIT

4шт.
