Запчасти John Deere 90D 59 - FUEL TRANSFER PUMP 0421 FUEL TRANSFER PUMP 4045TT008, 4276TT021 4045TT008, 4276TT021

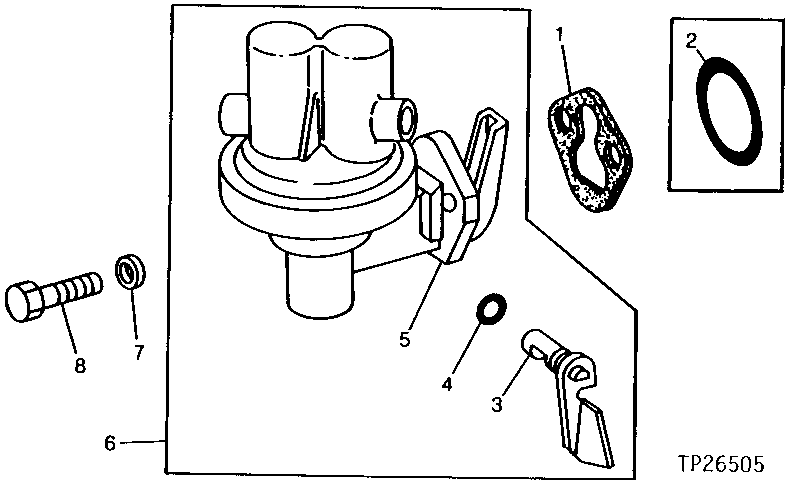

Схема запчастей John Deere 90D - 59 - FUEL TRANSFER PUMP 0421 FUEL TRANSFER PUMP 4045TT008, 4276TT021 4045TT008, 4276TT021

Артикул

Название

Примечание

Количество

1

R520618

Gasket

(SUB FOR R97350)

ARшт.

2

R48399

Washer

47.346 X 50.698 X 2.108 mm

ARшт.

3

Lever

( AR52556 USE IF AVAILABLE)

1шт.

4

A4365R

O-Ring

6.071 X 1.778 mm

1шт.

5

Fuel Pump

(SUB RE42211 ) (ALSO ORDER R520618)

1шт.

6

Fuel Pump

(ALSO ORDER R520618)( RE2 7667 NO LONGER AVAILABLE)

1шт.

RE42211

Fuel Pump

(SUB FOR RE27667 ) (ALSO ORDER R520618)

1шт.

7

T27860

Washer

8.740 X 17.500 X 1.664 mm

2шт.

8

19H1849

Cap Screw

5/16" X 1-1/4"

2шт.

Выбрано товаров: 9
