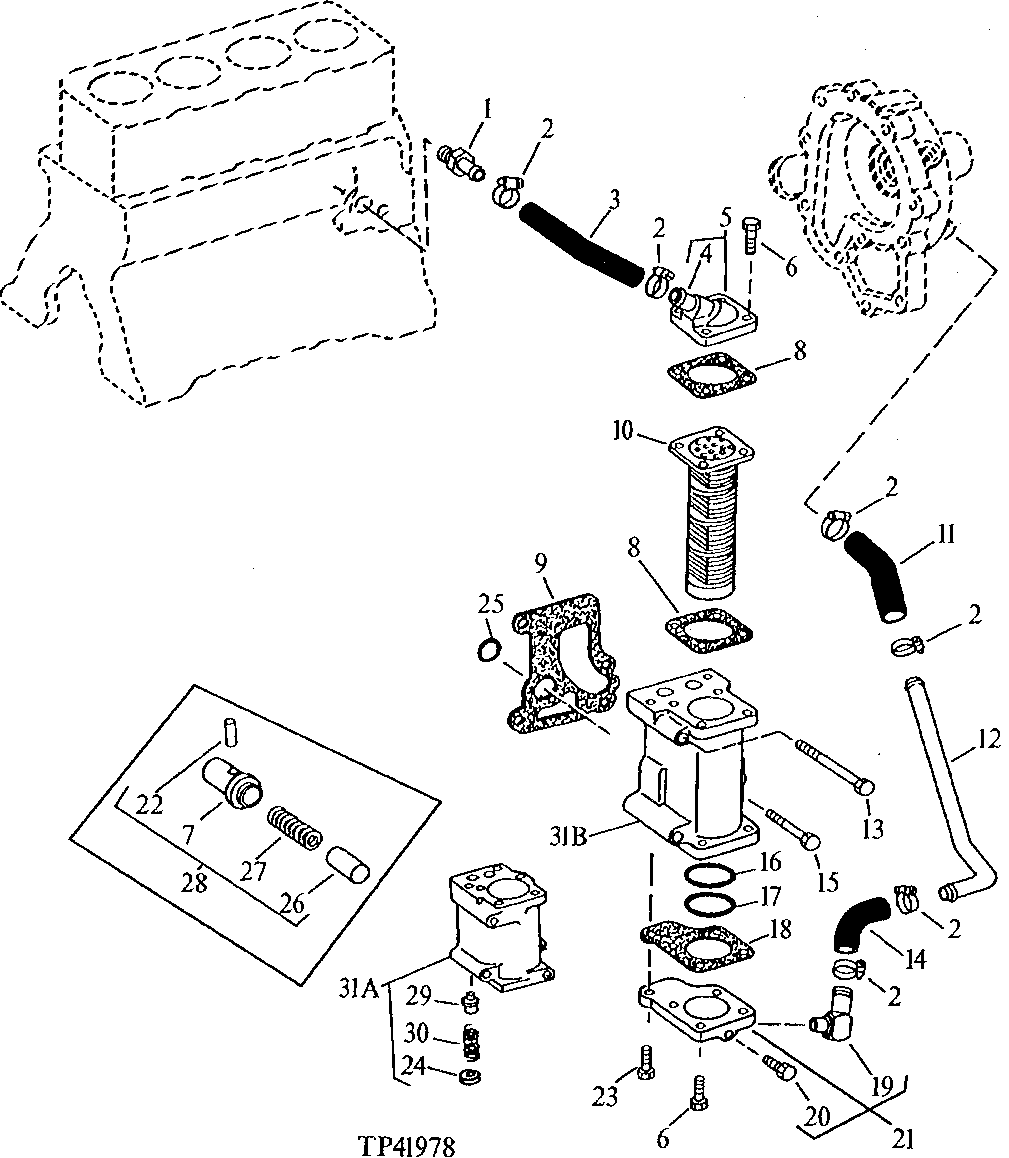

Запчасти John Deere 90D 57 - ENGINE OIL COOLER 0419 ENGINE OIL COOLER 4045TT008, 4276TT021 4045TT008, 4276TT021

1

R39503

Fitting

1шт.

2

TY22467

Clamp

(SUB FOR AR21839, THIS APPL ICATION ) (SUB FOR AT145650)

6шт.

3

R54826

Hose

1шт.

4

R34985

Line

1шт.

5

AR70464

Cover

(MARKED R58632)

1шт.

6

19H1849

Cap Screw

5/16" X 1-1/4"

8шт.

7

Housing

(SUB AR63351)

1шт.

8

R98486

Gasket

(SUB FOR R56020)

2шт.

9

R98489

Gasket

(SUB FOR R76243, THIS APPLICATION)

1шт.

10

RE31089

Oil Cooler

(ALSO ORDER (4) 19H2661 CAP SCREWS)

1шт.

11

R48766

Hose

1шт.

12

R54830

Tube

1шт.

13

19H1925

Cap Screw

3/8" X 4-1/4"

2шт.

14

R54829

Hose

1шт.

15

19H3065

Cap Screw

3/8" X 2"

2шт.

16

R56814

O-Ring

59.995 X 2.616 mm INNER

1шт.

17

R56815

O-Ring

59.995 X 2.616 mm OUTER

1шт.

18

R98487

Gasket

(SUB FOR R54831)

1шт.

19

AR26732

Elbow Fitting

1шт.

20

R42852

Pipe Plug

1шт.

21

AR63356

Cover

(MARKED R54828)

1шт.

22

34H184

Spring Pin

1/8" X 1-1/8"

1шт.

23

19H2705

Cap Screw

5/16" X 1"

1шт.

24

Valve

1шт.

25

R61871

O-Ring

24.994 X 3.531 mm

1шт.

26

Valve

(SUB AR63351)

1шт.

27

R46625

Spring

1шт.

28

AR63351

Valve

1шт.

29

Relief Valve

1шт.

30

R46625

Spring

1шт.

31A

AR103165

Housing

(MARKED R76241)

1шт.

31B

R110562

Housing

1шт.
