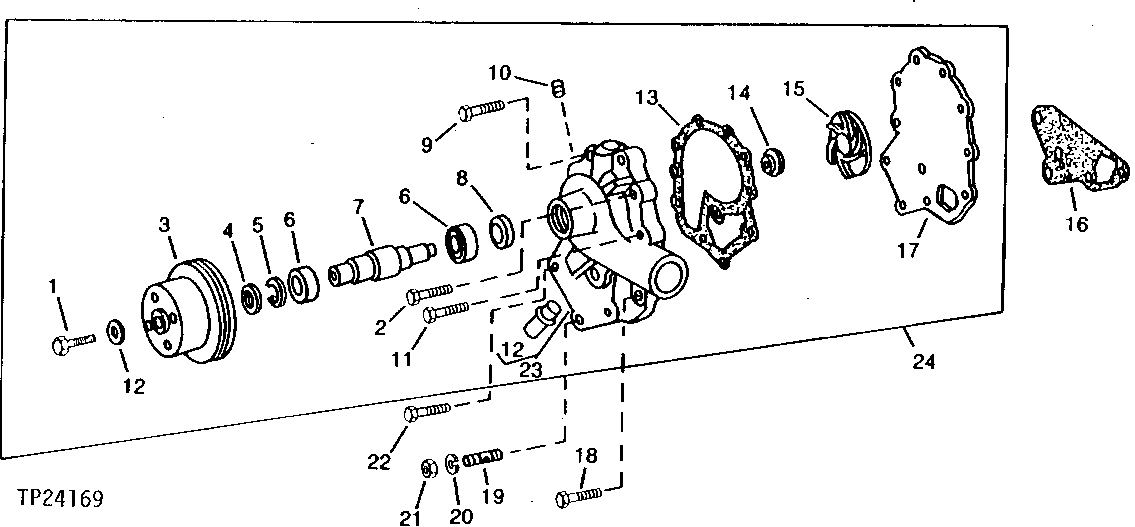

Запчасти John Deere 90D 54 - WATER PUMP ASSEMBLY 0417 WATER PUMP 4045TT008, 4276TT021 4045TT008, 4276TT021

1

19H2993

Cap Screw

1/2" X 1-1/2"

1шт.

2

19H2676

Cap Screw

3/8" X 1"

1шт.

3

R82945

Pulley

1шт.

4

AR90860

Seal

1шт.

5

R62191

Snap Ring

1.7 MM (.067")

ARшт.

R62192

Snap Ring

2.0 MM (.077")

ARшт.

R62193

Snap Ring

2.2 MM (.087")

ARшт.

R62194

Snap Ring

2.5 MM (.097")

ARшт.

6

JD10329

Ball Bearing

SUB FOR JD7686

2шт.

7

R82052

Shaft

SUB FOR R72140

1шт.

8

AR90861

Seal

1шт.

9

19H2633

Cap Screw

3/8" X 1-1/2"

5шт.

19H1726

Cap Screw

3/8" X 2-1/4"

1шт.

10

15H584

Pipe Plug

1/2" WITHOUT HEATER

1шт.

11

19H1726

Cap Screw

3/8" X 2-1/4"

1шт.

12

R34985

Line

1шт.

T18407

Washer

14.681 X 36.500 X 6.350 mm

1шт.

13

R56809

Gasket

1шт.

14

AR101549

Seal Kit

1шт.

15

R99122

Impeller

USE IF AVAILABLE

1шт.

R56812

Impeller

SUB FOR R99122

1шт.

16

T20243

Gasket

1шт.

17

R56811

Cover

1шт.

18

19H2458

Cap Screw

3/8" X 3"

1шт.

19

T25701

Stud

1шт.

20

12H304

Lock Washer

3/8"

1шт.

21

14H1076

Nut

3/8"

1шт.

22

19H3734

Screw

3/8" X 3"

1шт.

23

Housing

ORDER RE22469; MARKED R80168

1шт.

24

RE22469

Water Pump

MARKED R80168

1шт.
