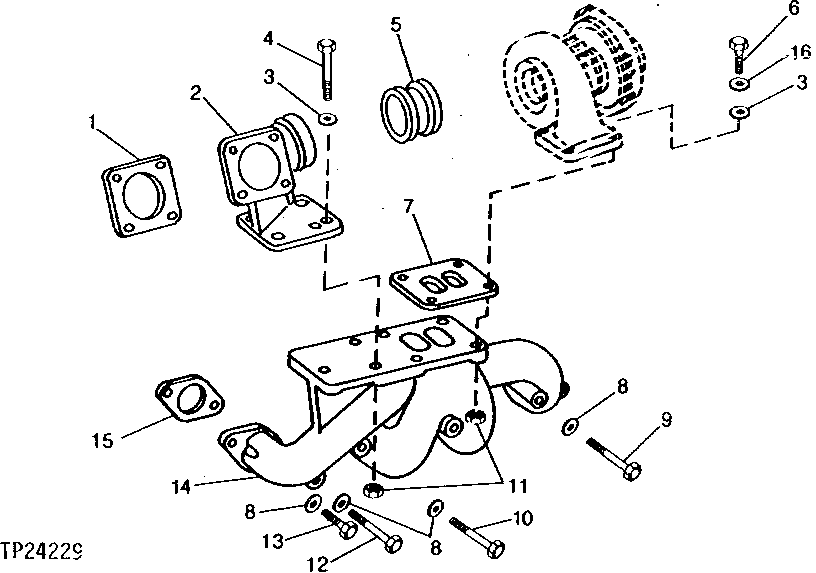

Запчасти John Deere 90D 44 - EXHAUST MANIFOLD AND ELBOW 0410 EXHAUST MANIFOLD 4045TT008, 4276TT021 4045TT008, 4276TT021

1

R98841

Gasket

(SUB FOR R79813)

1шт.

2

R79759

Exhaust Manifold

1шт.

3

24H1305

Washer

13/32" X 13/16" X 0.065"

ARшт.

4

19H3742

Screw

3/8" X 1-5/8"

3шт.

5

R43724

Adapter Fitting

(SUB FOR R83034)

1шт.

6

19H3742

Screw

3/8" X 1-5/8"

3шт.

19H3217

Cap Screw

3/8" X 1-3/4"

1шт.

7

R123572

Gasket

(SUB FOR R55509 ) (SUB FOR R89879, THIS APPLICATION)

1шт.

8

24M7106

Washer

10 X 18 X 2.500 mm

ARшт.

9

19H3737

Screw

3/8" X 4-1/4"

2шт.

10

19H3738

Screw

3/8" X 5"

2шт.

11

N10215

Lock Nut

9.525 mm (SUB FOR 14H812, THIS APPLICATION)

7шт.

12

19H3746

Screw

3/8" X 3-7/8"

1шт.

13

19H3411

Screw

3/8" X 1-1/8"

3шт.

14

R52819

Exhaust Manifold

1шт.

15

R90658

Gasket

4шт.

16

12H304

Lock Washer

3/8"

ARшт.
