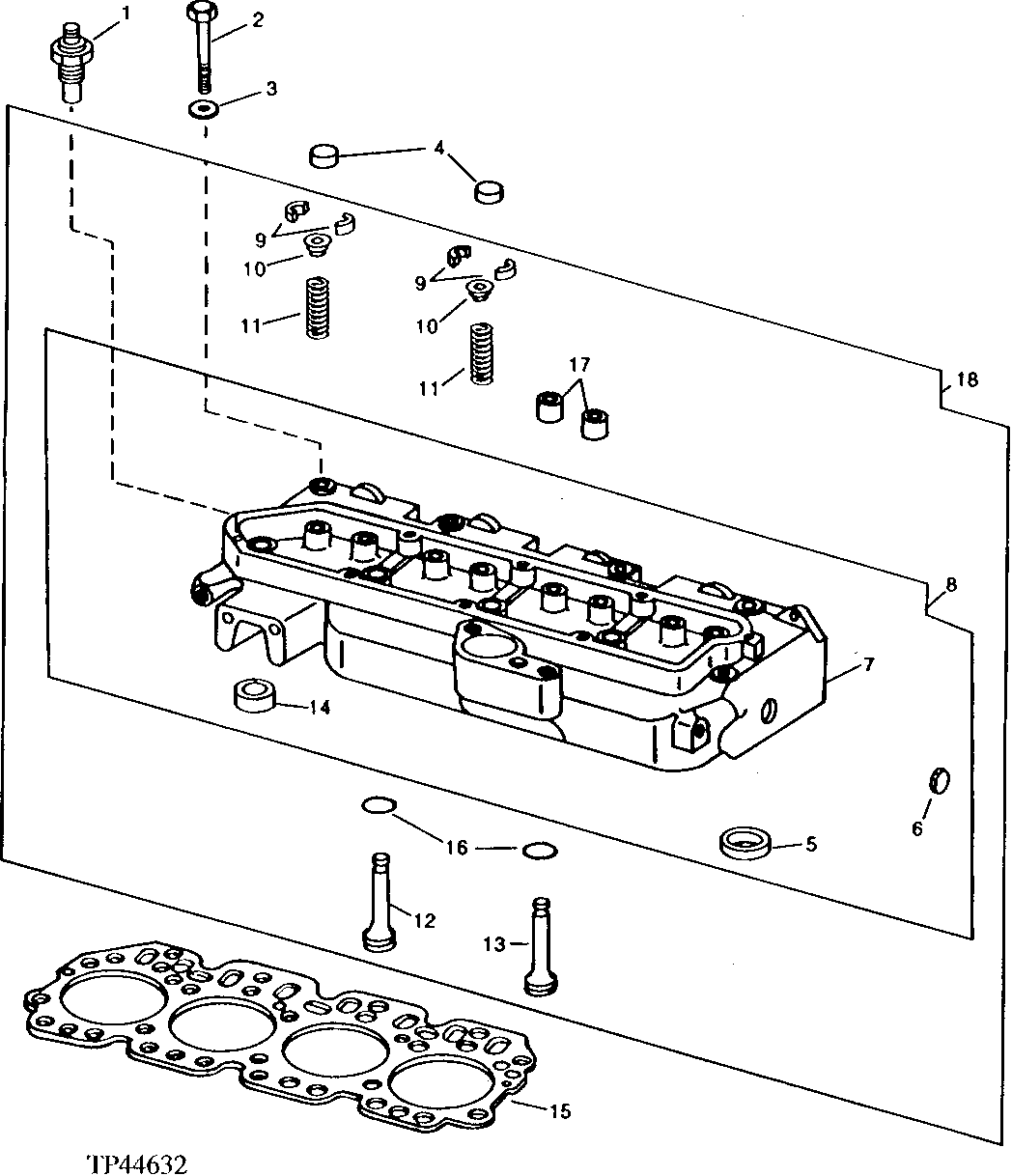

Запчасти John Deere 90D 42 - REPLACEMENT CYLINDER HEAD AND VALVES ( - 299999) 0409 CYLINDER HEAD AND VALVES 4045TT008, 4276TT021 4045TT008, 4276TT021

1

AT135260

Switch

(INCLUDES NUT AND WASHER), (SUB FOR AT100084 ENGINE COOLANT TEMPERATURE)

1шт.

14H605

Nut

0.164"

1шт.

24H1283

Washer

7/32" X 1/2" X 0.049"

1шт.

14H631

Nut

0.190" (USE WITH AT100084)

1шт.

12H295

Lock Washer

0.190" (USE WITH AT100084)

1шт.

2

R85363

Cap Screw

18шт.

3

T20168

Washer

(DO NOT USE WITH R85363)

18шт.

4

T20129

Cap

8шт.

5

R51734

Valve Seat Insert

EXHAUST

4шт.

6

A3910R

Plug

OUTER DIAMETER 25.6MM

ARшт.

CD16284

Plug

OUTER DIAMETER 32.5MM

ARшт.

7

Cylinder Head

(SUB RE56545)

1шт.

8

Cylinder Head

(MARKED R57078)(AR100074 NO L ONGER AVAILABLE) (SUB RE56545)

1шт.

9

T20077

Retainer

16шт.

10

RE11410

Rotator

8шт.

11

R26125

Spring

8шт.

12

R79624

Exhaust Valve

STANDARD(USE WITH AR100073)

4шт.

R79625

Exhaust Valve

0.08 MM (.003") OVERSI ZE (USE WITH AR100073)

4шт.

R79626

Exhaust Valve

0.38 MM (.015") OVERSI ZE (USE WITH AR100073)

4шт.

Exhaust Valve

( R79627 NO LONGER AVAILABL E) 0.76 MM (.030") OVERSIZE

4шт.

R89226

Exhaust Valve

(STD.) (USE WITH RE56545)

4шт.

R89227

Exhaust Valve

(.003 OVERSIZE) (USE WITH RE56545)

4шт.

R89228

Exhaust Valve

(.015 OVERSIZE) (USE WITH RE56545)

4шт.

R89229

Exhaust Valve

(.030 OVERSIZE) (USE WITH RE56545)

4шт.

13

R83071

Intake Valve

STANDARD

4шт.

R88174

Intake Valve

0.08 MM (.003") OVERSIZE

4шт.

R88175

Intake Valve

0.36 MM (.015") OVERSIZE

4шт.

R88176

Intake Valve

0.76 MM (.030") OVERSIZE

4шт.

14

R73064

Valve Seat Insert

INTAKE

4шт.

15

R91878

Gasket

1шт.

16

R87627

O-Ring

(USE WITH AR100074)

8шт.

17

R110524

Seal

(USE WITH RE56545)

8шт.

18

RE56545

Cylinder Head

(MARKED R57078)

1шт.

SE501587

Cylinder Head Reman

(MARKED R57078 OR R1208 67) (REMAN FOR RE56545)

1шт.
