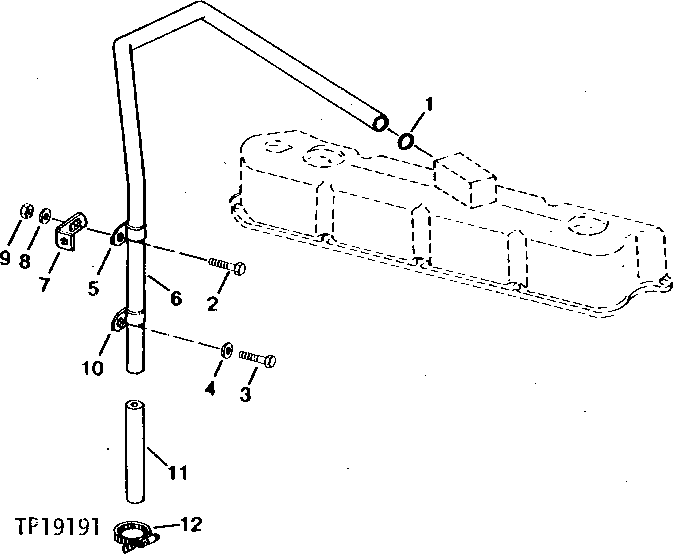

Запчасти John Deere 90D 40 - ENGINE VENTILATOR TUBE 0408 VENTILATING SYSTEM 4045TT008, 4276TT021 4045TT008, 4276TT021

1

R56463

O-Ring

21.819 X 3.531 mm

1шт.

2

19H3411

Screw

3/8" X 1-1/8" (SUB FOR 1 9H3239, THIS APPLICATION)

1шт.

3

19H1813

Cap Screw

5/16" X 5/8"

1шт.

4

24M7096

Washer

10.500 X 18 X 1.600 mm

1шт.

5

R40791

Clamp

2шт.

6

R109941

Tube

(SUB FOR R59047)

1шт.

7

R73975

Bracket

1шт.

8

24H1685

Washer

11/32" X 47/64" X 0.083"

ARшт.

9

N10215

Lock Nut

9.525 mm (SUB FOR 14H812, OR 14H1076THIS APPLICATION)

1шт.

10

T24432

Clamp

1шт.

11

R88910

Hose

DO NOT REPLACE

NAшт.

12

TY22467

Clamp

(SUB FOR AR21839, THIS APPLICATION ) (SUB FOR AT145650)DO NOT REPLACE

NAшт.
