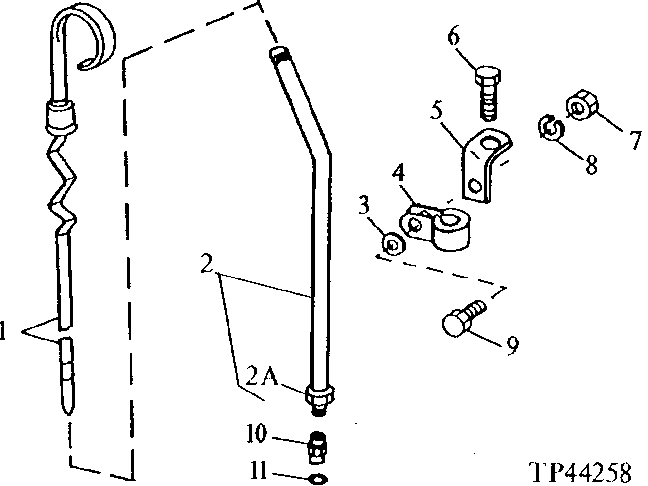

Запчасти John Deere 90D 37 - ENGINE OIL DIPSTICK 0407 ENGINE OILING SYSTEM 4045TT008, 4276TT021 4045TT008, 4276TT021

1

RE46787

Dipstick

(SUB FOR RE22467)

1шт.

2

RE30695

Dipstick Tube

1шт.

2A

R27058

Tube Nut

1шт.

3

24H1302

Washer

13/32" X 11/16" X 0.035"

1шт.

4

T28862

Clamp

(SUB FOR T29299)

1шт.

5

R60357

Angle

1шт.

6

19H2943

Cap Screw

1/2" X 3/4"

1шт.

7

N10215

Lock Nut

9.525 mm (SUB FOR 14H1 076, THIS APPLICATION)

1шт.

8

12H304

Lock Washer

3/8"

ARшт.

9

19H2284

Cap Screw

3/8" X 7/8"

1шт.

10

R77016

Adapter Fitting

1шт.

11

R10093

O-Ring

7.645 X 1.778 mm

ARшт.
