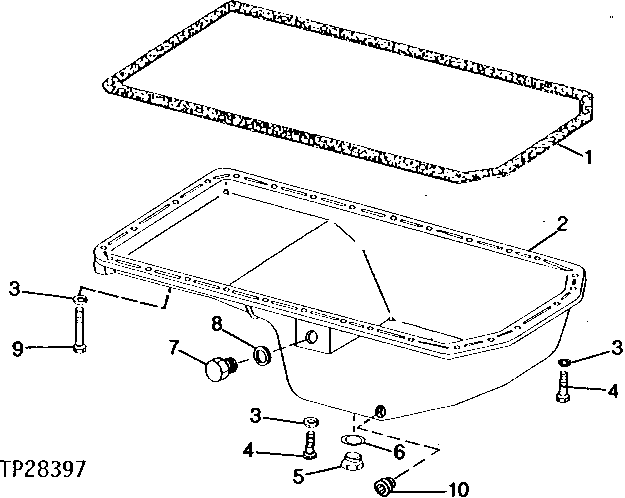

Запчасти John Deere 90D 35 - ENGINE OIL PAN 0407 ENGINE OILING SYSTEM 4045TT008, 4276TT021 4045TT008, 4276TT021

1

R97342

Gasket

(SUB FOR R97342)

1шт.

2

R105383

Oil Pan

(SUB FOR R82426, ALONG WITH 15H690)

1шт.

3

12H304

Lock Washer

3/8"

28шт.

4

19H3065

Cap Screw

3/8" X 2"

8шт.

5

M1746T

Drain Plug

1шт.

6

T13213

Washer

22.631 X 30.175 X 1.626 mm

1шт.

7

R27474

Drain Plug

3шт.

8

R47151

O-Ring

19.177 X 2.464 mm

3шт.

9

19H3411

Screw

3/8" X 1-1/8"

20шт.

10

15H690

Pipe Plug

3/4" (USE WITH R105383)

1шт.
