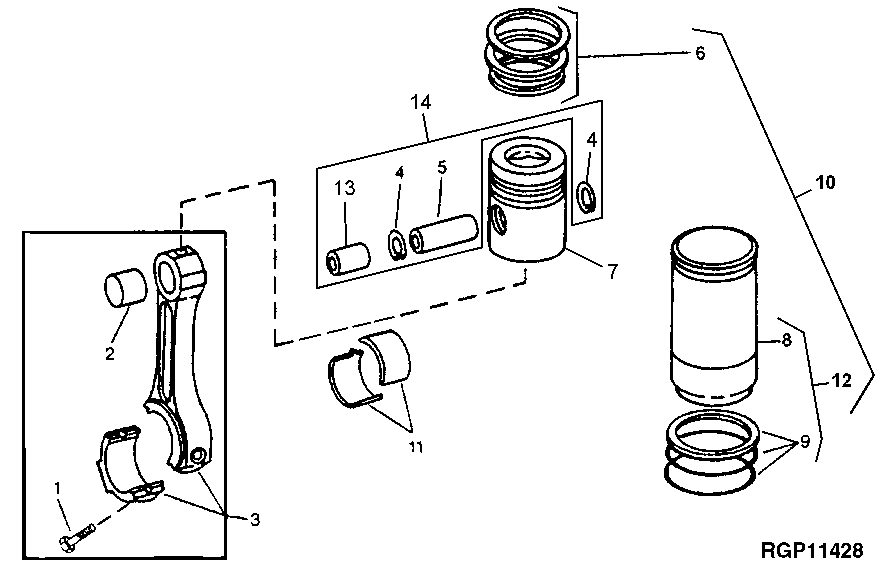

Запчасти John Deere 90D 27 - CONNECTING ROD, PISTON, RINGS AND LINER 0403 CONNECTING RODS AND PISTONS 4045TT008, 4276TT021 4045TT008, 4276TT021

1

R74195

Screw

12.700 X 63.500 mm

8шт.

2

Bushing

(R56186 NO LONGER AVAILABLE)

4шт.

3

RE53716

Connecting Rod

(MARKED R116851) (SUB FOR AR66400 ) (MARKED R56187)

4шт.

SE500746

Connecting Rod Reman

(REMAN FOR RE53716)

ARшт.

4

R54114

Snap Ring

8шт.

5

Pin

4шт.

6

RE507852

Piston Ring Kit

(SUB FOR RE15674, RE48818, RE66820)

4шт.

7

Piston

( AR96389 NO LONGER AVA ILABLE, FURNISH RE19833)

4шт.

Piston

( RE28920 NO LONGER AVA IABLE, FURNISH RE53073)

4шт.

8

R121867

Cylinder Liner

(SUB FOR R80500 ) (SUB RE500024)

4шт.

9

AR65507

O-Ring Kit

4шт.

10

RE19833

Kit

(SUB FOR RE19832)

4шт.

RE53073

Piston-Liner Kit

(SUB FOR RE28977)

4шт.

11

AR97517

Bearing

STANDARD (SET OF (2) R54801)

4шт.

Bearing

( AR97652 NO LONGER AVAILABLE) 0.05 MM (.002") UNDERSIZE (SET OF (2) R73595)

4шт.

AR97653

Bearing

0.25 MM (.010") UNDERS IZE (SET OF (2) R73596)

4шт.

AR97654

Bearing

0.51 MM (.020") UNDERS IZE (SET OF (2) R73597)

4шт.

AR97655

Bearing

0.76 MM (.030") UNDERS IZE (SET OF (2) R73598)

4шт.

12

RE500024

Cylinder Liner

4шт.

13

Bushing

4шт.

14

RE63913

Pin Kit

4шт.
