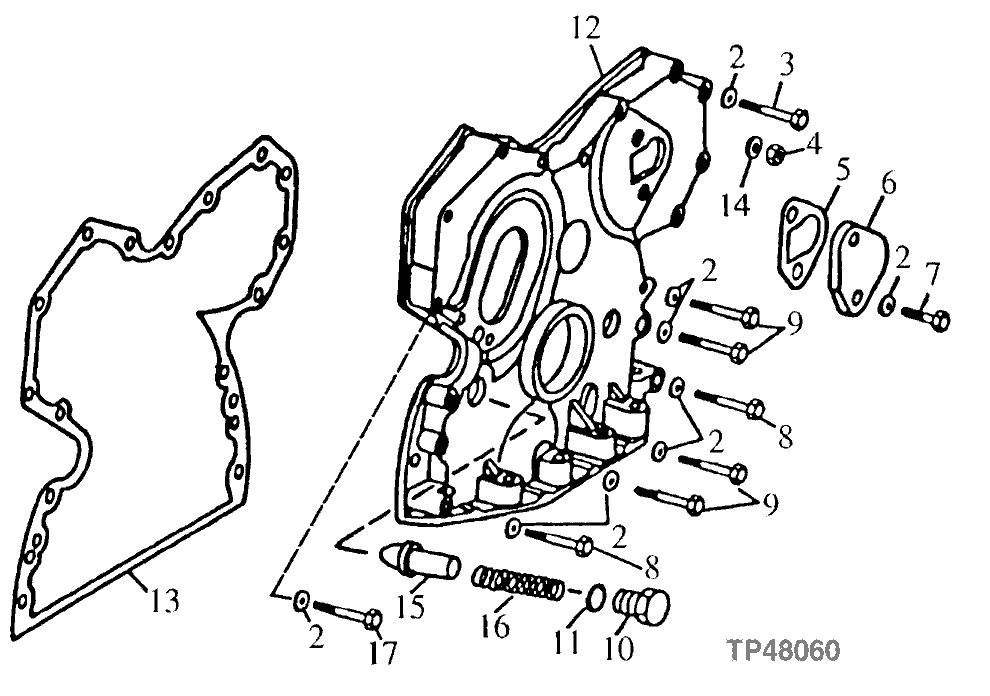

Запчасти John Deere 90D 26 - TIMING GEAR COVER 0402 CAMSHAFT AND VALVE ACTUATING MEANS 4045TT008, 4276TT021 4045TT008, 4276TT021

2

24M7106

Washer

10 X 18 X 2.500 mm

ARшт.

3

19H3693

Screw

3/8" X 1-1/4"

5шт.

4

N10215

Lock Nut

9.525 mm (SUB FOR 14H812, THIS APPLICATION)

2шт.

5

R125066

Gasket

(SUB FOR R78366 OR R97773)

1шт.

6

R126041

Cover

(SUB FOR T20362)

1шт.

7

R124277

Cap Screw

(SUB FOR R122618, THIS APPLICATION)

2шт.

8

19H3733

Screw

3/8" X 2-1/2"

2шт.

9

19H3408

Screw

3/8" X 1-3/4"

5шт.

10

T27657

Fitting Plug

1шт.

11

A4827R

Washer

25.400 X 31.700 X 1.500 mm

1шт.

12

RE56443

Cover

1шт.

13

R126513

Gasket

(SUB FOR R97454, T2015 5, R119269 OR R121314)

1шт.

14

12H304

Lock Washer

3/8"

ARшт.

15

R83169

Valve

1шт.

16

T27658

Spring

1шт.

17

19H3011

Cap Screw

1/2" X 2-1/8"

1шт.
