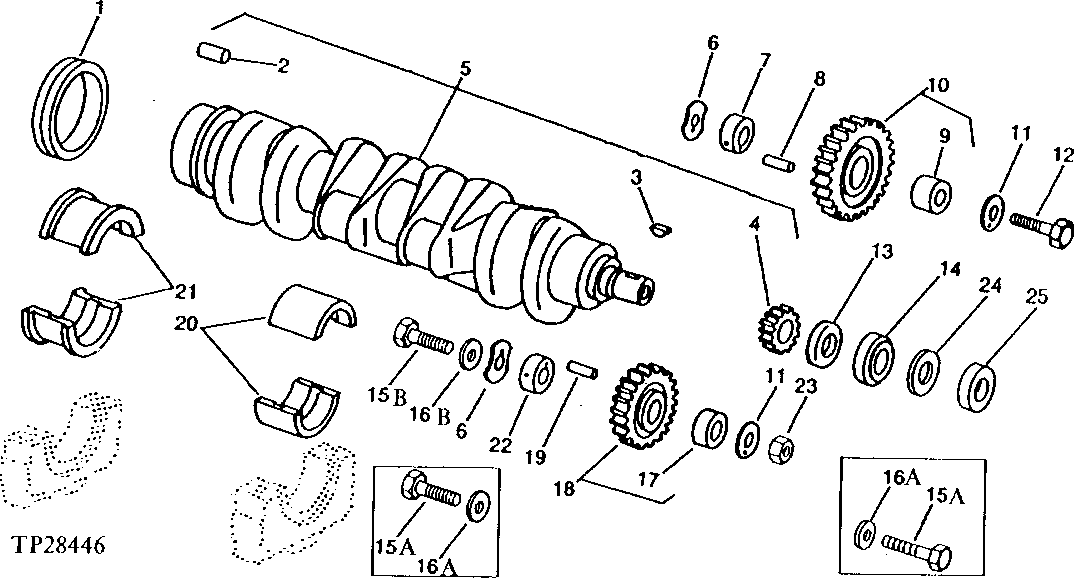

Запчасти John Deere 90D 20 - CRANKSHAFT, IDLER GEARS AND MAIN BEARINGS 0401 CRANKSHAFT AND MAIN BEARINGS 4045TT008, 4276TT021 4045TT008, 4276TT021

1

RE44574

Seal

(SUB FOR RE17831 OR RE24959)

1шт.

2

R48685

Dowel Pin

(SUB FOR A120R)

1шт.

3

26H72

Shaft Key

1/8" X 5/8"

1шт.

4

T20094

Helical Gear

(24 TEETH)

1шт.

5

Crankshaft

RE56792, MARKED R108657 NO LONGER AVAI LABLE (SUB FOR RE11026 OR RE33845, MARK ED R54501, AND RE57660, MARKED R90825)S UB RE71439 CRANKSHAFT KIT (SHORT NOSE)

1шт.

RE71439

Crankshaft

1шт.

SE501651

Crankshaft Reman

(A) (REMAN FOR RE71439)

1шт.

Crankshaft

RE55452, MARKED R108657 NO LONGER AVAI LABLE (SUB FOR RE57661, MARKED R90825) SUB RE54883 CRANKSHAFT KIT (LONG NOSE)

1шт.

RE54883

Crankshaft

1шт.

SE501649

Crankshaft Reman

(A) (REMAN FOR RE54883)

1шт.

6

T26324

Thrust Washer

2шт.

7

R109863

Shaft

(SUB FOR T26323 OR R89824)

1шт.

8

34H283

Spring Pin

3/16" X 1-1/8"

1шт.

9

T20034

Bushing

1шт.

10

AR91660

Gear

(55 TEETH), (MARKED R70182)

1шт.

11

T26326

Thrust Washer

2шт.

12

T26327

Screw

12.700 X 57 mm

1шт.

13

T20046

Oil Slinger

1шт.

14

AR67942

Seal

1шт.

15A

T26325

Screw

14.275 X 19.050 mm

2шт.

15B

19H3183

Cap Screw

1/2" X 2-1/8" HS, SAE 8, 1/2" X 2-1/8"

1шт.

16A

R76126

Washer

14.681 X 25.400 X 2.667 mm

2шт.

16B

R100105

Washer

13.500 X 30 X 3 mm

1шт.

17

T26321

Bushing

1шт.

18

AT24252

Gear

(45 TEETH), (MARKED T26322)

1шт.

19

34H286

Spring Pin

3/16" X 1-1/2"

1шт.

20

RE27352

Bearing Kit

(SUB FOR AT21140) STANDARD ( T23214)

4шт.

Bearing

( AT21108 NO LONGER AVAILABLE) 0. 05 MM (.002") UNDERSIZE ( T23552)

4шт.

RE27353

Bearing Kit

(SUB FOR AT21110) 0.25 MM (.010") UNDERSIZE ( T23554)

4шт.

RE27360

Bearing

(SUB FOR AT21112) 0.51 MM (.020") UNDERSIZE ( T23556)

4шт.

RE27368

Bearing

(SUB FOR AT21114) 0.76 MM (.030") UNDERSIZE ( T23558)

4шт.

21

R78598

Thrust Washer

(SUB FOR AT21139) STANDARD ( T23215)

1шт.

Bearing

( AT21130 NO LONGER AVAILABLE) 0. 05 MM (.002") UNDERSIZE ( T23574)

1шт.

R78598

Thrust Washer

(SUB FOR AT21132)0.25 MM ( .010") UNDERSIZE ( R130574)

1шт.

AT21134

Bearing

0.51 MM (.020") UNDERSIZE ( T23578)

1шт.

AT21136

Bearing

0.76 MM (.030") UNDERSIZE ( T23580)

1шт.

22

Shaft

(SUB R89824, R100105, 19H3183 AND E69392)

1шт.

R89824

Shaft

1шт.

23

E69392

Nut

12.700 mm (SUB FOR 14H 865, THIS APPLICATION)

1шт.

24

H35244

Ring

37.821 X 1.778 mm

1шт.

25

R81989

Sleeve

1шт.
