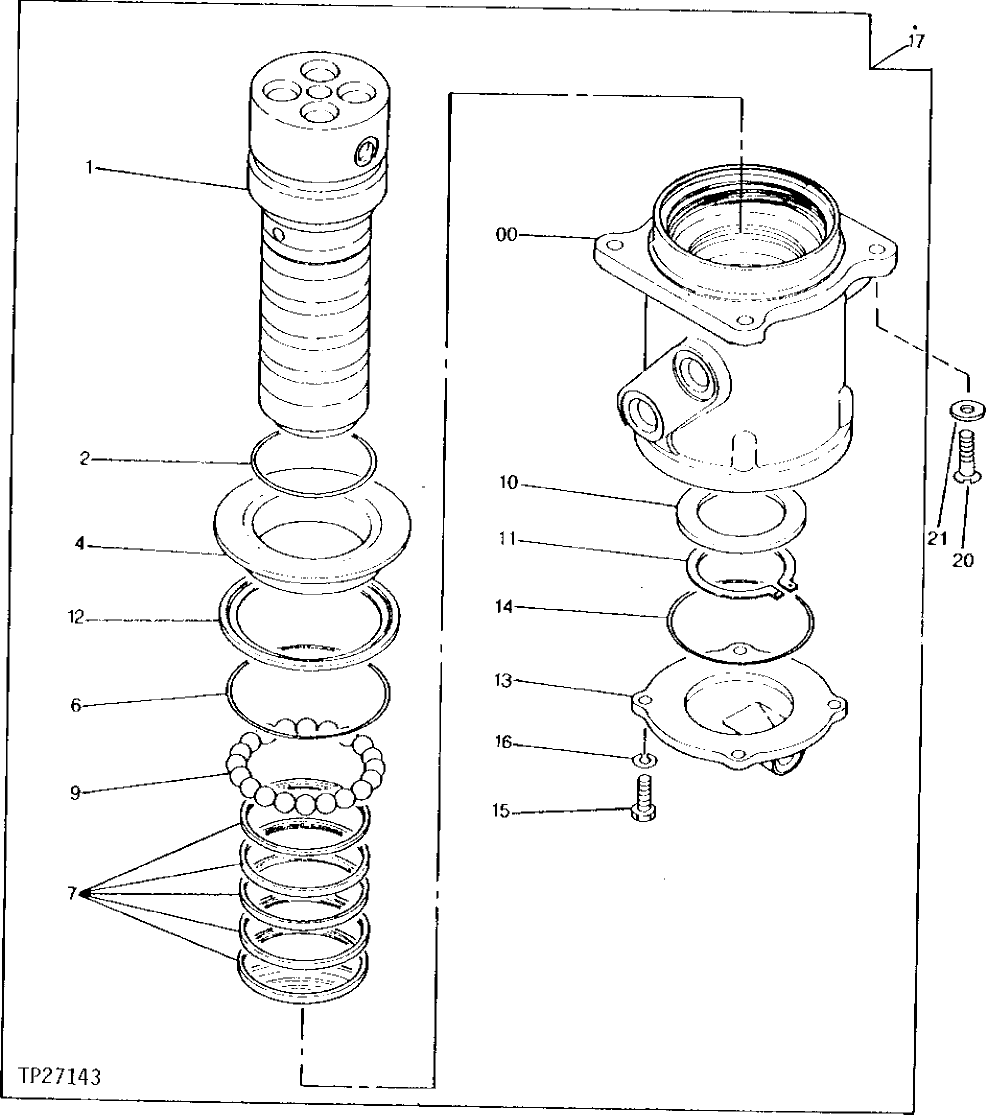

Запчасти John Deere 90D 17 - Rotary Manifold 0260 AXLES AND SUSPENSION SYSTEM HYDRAULICS

0

Housing

( TH108902 NOT AVAILABLE FOR SERVICE)

1шт.

1

Spindle

( TH108903 NO LONGER AVAILABLE)

1шт.

2

CH17447

Packing

1шт.

4

4187060

Cover

(SUB FOR TH108904)

1шт.

6

TH110021

O-Ring

124.600 X 5.700 mm

1шт.

7

AT165703

Seal

(BLUE) (SUB FOR TH108906 TAN SEAL)

5шт.

9

972658

Ball

(SUB FOR T38788)

20шт.

10

4176429

Ring

(SUB FOR TH108907)

1шт.

11

40M7065

Snap Ring

1шт.

12

TH108908

Seal

1шт.

13

2021481

Cover

(SUB FOR TH108909)

1шт.

14

T110443

O-Ring

109.400 X 3.100 mm

1шт.

15

19M7662

Cap Screw

M10 X 30

4шт.

16

12M7066

Lock Washer

10 mm

4шт.

17

9097161EX

Manifold

(REMANUFACTURED) (SUB FOR A T105530 ) (SUB FOR AT182273)

1шт.

20

19M8011

Cap Screw

M12 X 30

4шт.

21

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

4шт.
