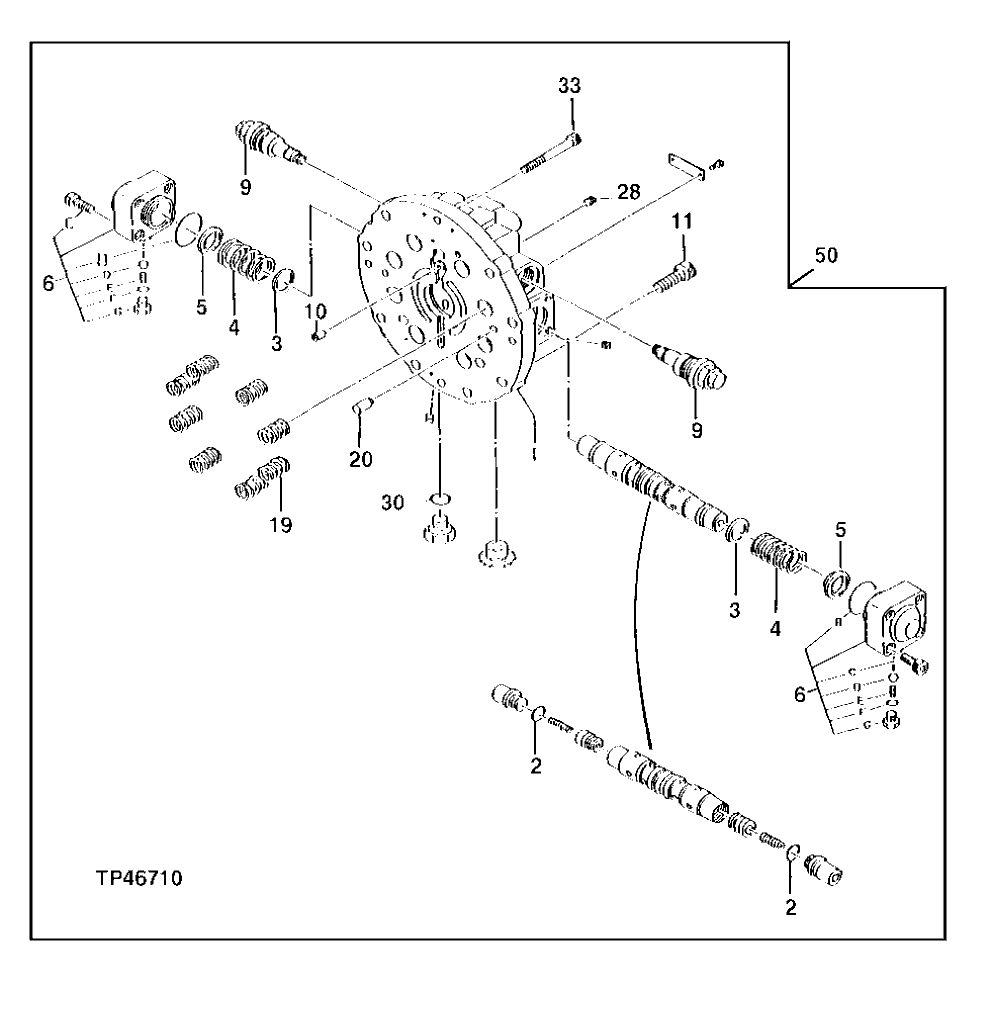

Запчасти John Deere 90D 13 - PROPEL MOTOR (002295 - ) 0260 AXLES AND SUSPENSION SYSTEM HYDRAULICS

1

Housing

1шт.

2

4506418

O-Ring

(SUB FOR U46489)

2шт.

3

0163601

Plate

(SUB FOR AT132163)

2шт.

4

0411501

Spring

(SUB FOR AT170323)

2шт.

5

0251404

Plate

(SUB FOR AT127991)

2шт.

6

0310026

Cap

(SUB FOR AT128032)

2шт.

6B

A811040

O-Ring

39.400 X 3.100 mm (SUB FOR TH102992)

1шт.

6C

19M8447

Screw

M10 X 35

4шт.

6D

T13624

Ball

7.145 mm

1шт.

6E

0356903

Spring

(SUB FOR AT128060)

1шт.

6F

4506408

O-Ring

7.800 X 1.900 mm (SUB FOR TH101490)

1шт.

6G

0356904

Plug

(SUB FOR AT128061)

1шт.

9

4288543

Pressure Relief Valve

(SUB FOR AT170272)

2шт.

10

0411504

Spring Pin

(SUB FOR AT170337)

1шт.

11

19M8490

Screw

M16 X 40

8шт.

19

0310020

Spring

(SUB FOR AT128029)

8шт.

20

0251319

Pin

10 X 24 mm (SUB FOR AT127988)

4шт.

28

942011

Fitting Plug

(SUB FOR 94-2011 AND TH100434)

5шт.

30

4506418

O-Ring

(SUB FOR U46489)

2шт.

33

0396704

Bolt

(SUB FOR AT170344)

2шт.

50

Hydraulic Motor

( AT217367 NLA) REMANUFACTURED (SUB FOR AT1 70270 (CONTAINS ALL ITEMS ON THIS PAGE - ADD ITIONAL COMPONENTS LISTED ON PREVIOUS PAGE))

1шт.
