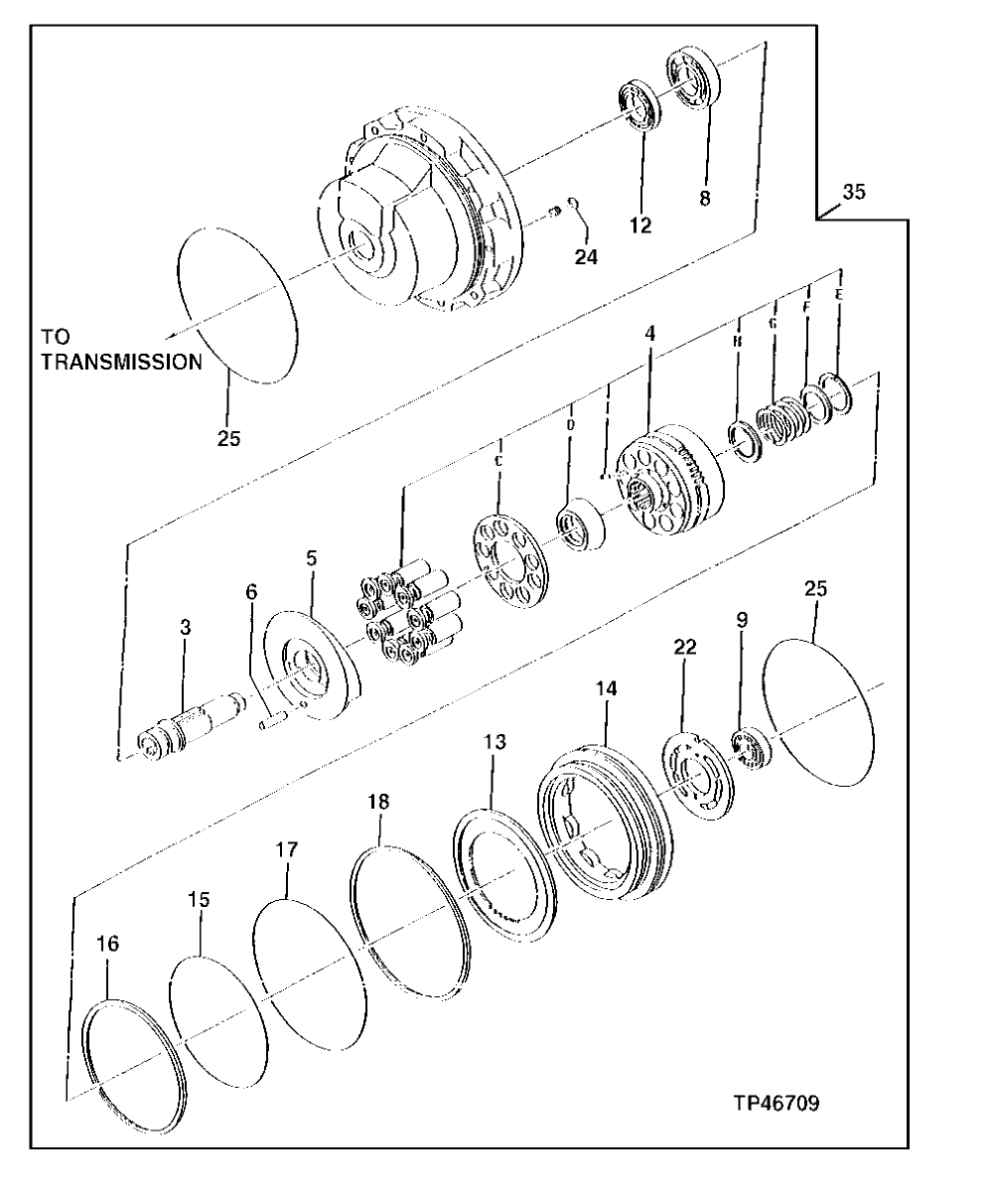

Запчасти John Deere 90D 12 - Propel Motor (002295 - ) 0260 AXLES AND SUSPENSION SYSTEM HYDRAULICS

3

0411401

Universal Driveshaft

SUB FOR AT170279

1шт.

4

0411402

Cylinder Block

SUB FOR AT170280

1шт.

4C

0636101

Plate

SUB FOR AT170281

1шт.

4D

0636102

Holder

SUB FOR AT170282

1шт.

4E

0411403

Snap Ring

SUB FOR AT170283

1шт.

4F

0411404

Bushing

SUB FOR AT170284

1шт.

4G

0411405

Spring

SUB FOR AT170285

1шт.

4H

0411406

Bushing

SUB FOR AT170286

1шт.

4I

0411407

Pin Fastener

SUB FOR AT170288

3шт.

5

0636103

Plate

SUB FOR AT170290

1шт.

6

0636104

Pin Fastener

SUB FOR AT170291

1шт.

8

0411411

Cylindrical Roller Bearing

SUB FOR AT170292

1шт.

9

0411412

Cylindrical Roller Bearing

SUB FOR AT170293

1шт.

12

0411413

Seal

SUB FOR AT170294

1шт.

13

0411414

Plate

SUB FOR AT170295

1шт.

14

0411415

Piston

SUB FOR AT170296

1шт.

15

AT264241

O-Ring

SUB FOR AT132155 OR A811180

1шт.

16

4138945

Back-Up Ring

SUB FOR AT170298

1шт.

17

0308623

O-Ring

SUB FOR AT170299, 04114 16, TH109953 OR 4S01094

1шт.

18

0411417

Back-Up Ring

SUB FOR AT170300 OR 4S00899

1шт.

22

0411420

Plate

SUB FOR AT170302

1шт.

24

CH17167

O-Ring

9.800 X 1.900 mm

3шт.

25

0365427

O-Ring

SUB FOR AT170304, 0411 419, 4S00240 OR 4S01093

2шт.

35

AT217367

Hydraulic Motor

NLA, REMAN, SUB FOR AT170270 Contai ns All Parts Listed On This Page Add itional Components On Separate Page

1шт.
