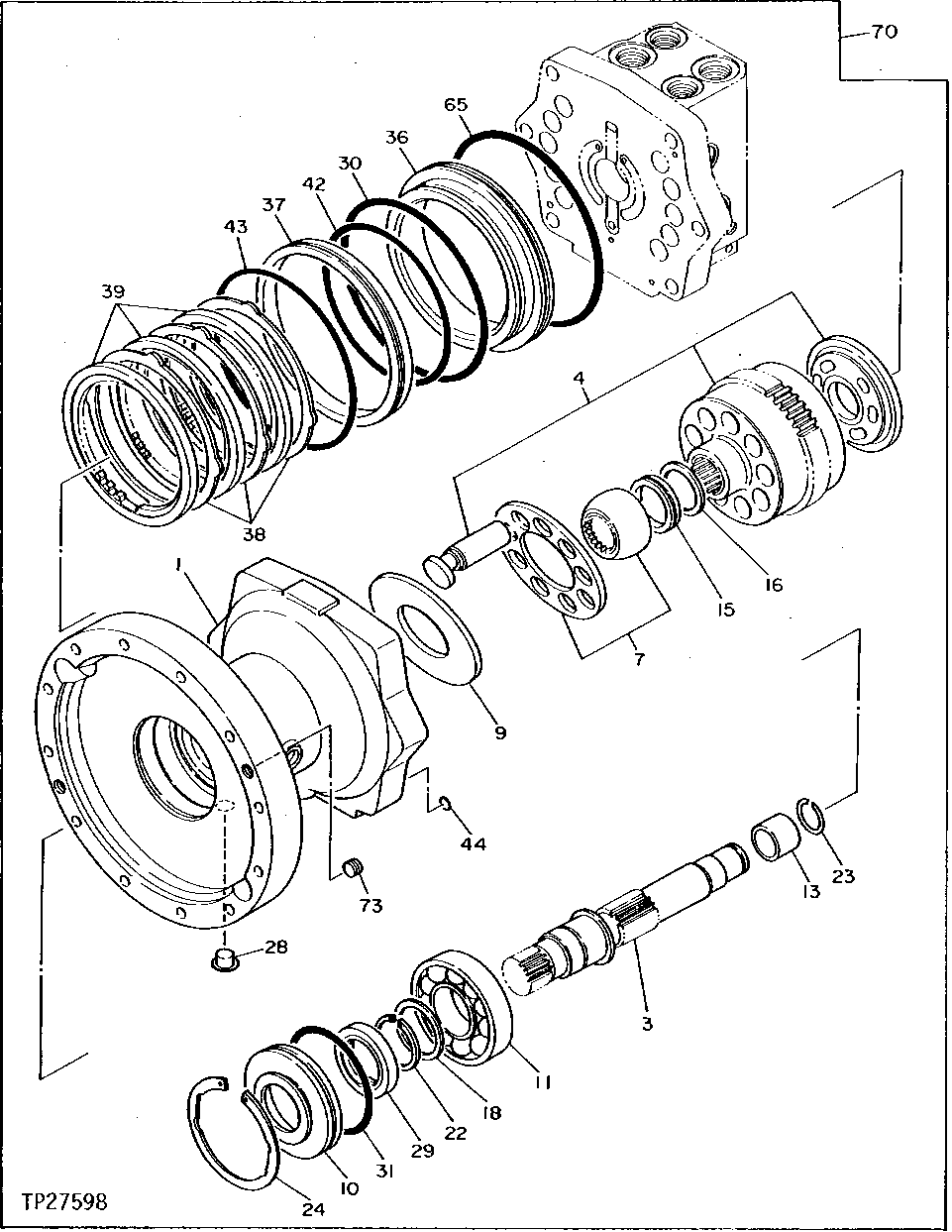

Запчасти John Deere 90D 217 - Swing Motor 4360 Hydraulics

1

Housing

SUB AT217319

1шт.

3

0327303

Shaft

SUB FOR AT127308

1шт.

4

0327304

Cylinder Block

SUB FOR AT127309

1шт.

7

0327305

Plate

SUB FOR AT127310

1шт.

9

0327306

Plate

SUB FOR AT127311

1шт.

10

0327307

Case

SUB FOR AT127312

1шт.

11

0224911

Ball Bearing

SUB FOR TH105722

1шт.

13

0327309

Needle Bearing

SUB FOR AT127314

1шт.

15

0327310

Spring

SUB FOR AT127315

1шт.

16

0327311

Plate

SUB FOR AT127316

1шт.

18

0224917

Washer

SUB FOR TH105726

1шт.

22

40M7166

Snap Ring

SUB FOR TH101799

1шт.

23

0311316

Snap Ring

SUB FOR TH109059

1шт.

24

0311317

Snap Ring

SUB FOR TH109060

1шт.

28

Plug

SUB AT217319

1шт.

29

4176022

Seal

SUB FOR TH105728 OR TH110485

1шт.

30

0327312

O-Ring

SUB FOR AT127317

1шт.

31

AT264223

O-Ring

SUB FOR AT121852 OR A811105

1шт.

36

0327313

Piston

SUB FOR AT127318

1шт.

37

0327314

Bushing

SUB FOR AT127319

1шт.

38

0327315

Plate

SUB FOR AT127320

3шт.

39

0327316

Plate

SUB FOR AT127321

3шт.

42

0353321

O-Ring

SUB FOR TH109070 OR 4S00218, 0310017 NLA

1шт.

43

0425117

O-Ring

SUB FOR TH109085 OR 0311338

1шт.

44

CH17167

O-Ring

1шт.

65

0365326

O-Ring

SUB FOR AT127322 OR 0327317

1шт.

70

AT128088

Hydraulic Motor

Swing Contains All Items On This Page Addit ional Components Shown On The Following Page

1шт.

4224990EX

Hydraulic Motor

SUB FOR AT128088 OR AT217319 Remanufactured

1шт.

73

0327318

Screw

SUB FOR AT127323

2шт.
