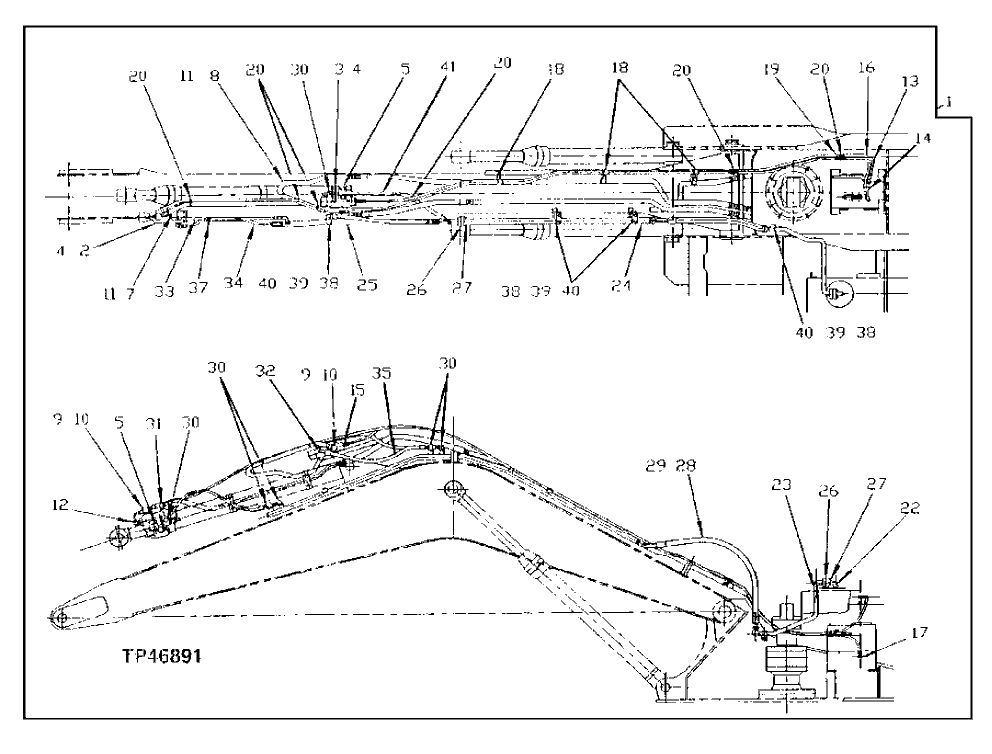

Запчасти John Deere 90D 215 - ARM CYLINDER LOAD LOWERING VALVE 3360 HYDRAULIC SYSTEM

1

Kit

AT171154 NO LONGER AVAILABLE A RM CYLINDER LOAD LOWERING VALVE, ALSO ORDER AT173700 ARM I SPOOL

1шт.

2

Flow Control Hyd. Valve

4206538 NLA SUB FOR AT172437, ROD END

1шт.

3

Flow Control Hyd. Valve

SUB FOR AT172438 OR 4230192, HEAD END

1шт.

4

A811030

O-Ring

29.400 X 3.100 mm SUB FOR TH101300

2шт.

5

19M8574

Screw

M10 X 85 SUB FOR AT172440 OR M341085

8шт.

7

Oil Line

8044116 NLA SUB FOR AT172441

1шт.

8

Oil Line

7020675 NLA SUB FOR AT172442

1шт.

9

A853388

Elbow Fitting

SUB FOR TH108325 OR 4198799

2шт.

10

T76938

O-Ring

23.520 X 1.780 mm

2шт.

11

T77858

O-Ring

18.771 X 1.778 mm

2шт.

12

A852333

Elbow Fitting

SUB FOR TH101047 ) (SUB FOR 4154671

1шт.

13

Hydraulic Hose - Fabricate

AT172443 NLA

1шт.

14

Oil Line

8039605 NLA SUB FOR AT172444 OR AT172469

1шт.

15

4200466

Adapter Fitting

SUB FOR TH108320

1шт.

16

Hydraulic Hose - Fabricate

AT172445 NLA

1шт.

17

4205363

Tee Fitting

SUB FOR AT126362

1шт.

18

M45242

Clip

SUB FOR TH108321, SUB FOR 4190292

3шт.

19

4327315

Hose Guard

SUB FOR TH106022, 4133527 OR 4327293

8шт.

20

H77698

Tie Band

10шт.

22

Cover

8042969 NLA SUB FOR AT172446

1шт.

23

Oil Line

8044115 NLA SUB FOR AT172447

1шт.

24

Oil Line

8044062 NLA SUB FOR AT172448

1шт.

25

Oil Line

8044063 NLA SUB FOR AT172449

1шт.

26

AT264324

O-Ring

SUB FOR TH100044

2шт.

27

19M8395

Screw

M12 X 40

8шт.

28

T76938

O-Ring

23.520 X 1.780 mm

2шт.

29

Hydraulic Hose - Fabricate

AT172450 NLA

1шт.

30

4154672

Elbow Fitting

SUB FOR TH101008

6шт.

31

4219345

Elbow Fitting

SUB FOR AT130819

1шт.

32

4221290

Adapter Fitting

SUB FOR AT131902

1шт.

33

Hydraulic Hose - Fabricate

AT172451 NLA

1шт.

34

Hydraulic Hose - Fabricate

AT172452 NLA

1шт.

35

Hydraulic Hose - Fabricate

AT172453 NLA

1шт.

37

Hose Guard

MAKE FROM XHG-075 BULK MATERIAL , CUT TO LENGTH SUB FOR AT138222

4шт.

38

4190127

Clamp

SUB FOR TH108313

4шт.

39

19M8348

Cap Screw

M12 X 65

4шт.

40

12H301

Lock Washer

1/2"

4шт.

41

Hydraulic Hose - Fabricate

AT172454 NLA

1шт.
