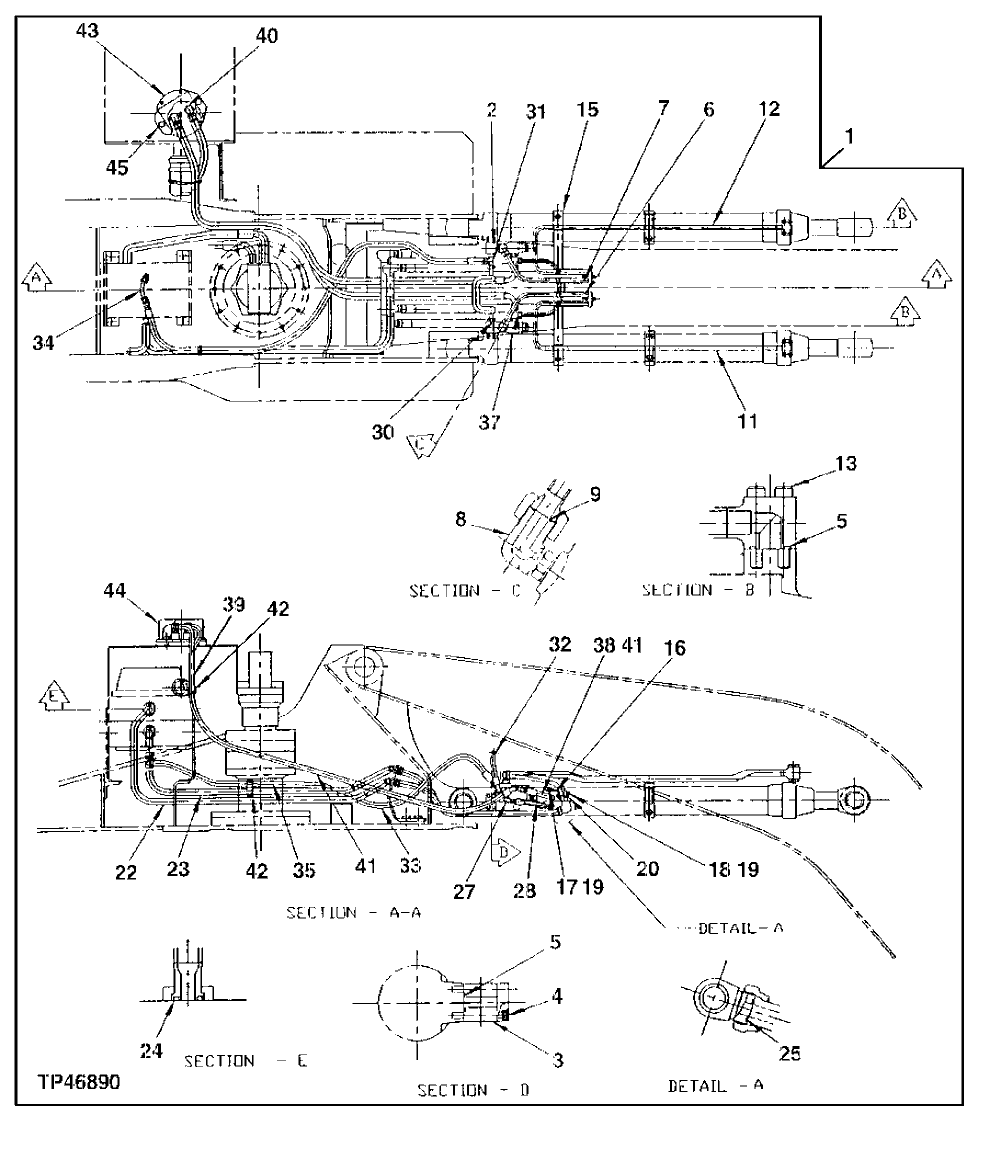

Запчасти John Deere 90D 214 - BOOM CYLINDER LOAD LOWERING VALVE 3360 HYDRAULIC SYSTEM

1

Kit

AT171153 NO LONGER AVAILABLE BO OM CYLINDER LOAD LOWERING VALVE, ALSO ORDER AT173699, BOOM I SPOOL

1шт.

2

Flow Control Hyd. Valve

4201401 NLA SUB FOR AT172455, HEAD END

2шт.

3

Plate

4259823 NLA SUB FOR AT172456

2шт.

4

19M8574

Screw

SUB FOR 19M8559

8шт.

5

A811030

O-Ring

SUB FOR TH101300

6шт.

6

Oil Line

8044396 NLA SUB FOR AT172457

1шт.

7

Oil Line

8044397 NLA SUB FOR AT172458

1шт.

8

4224403

Elbow Fitting

SUB FOR AT172459

2шт.

9

T76938

O-Ring

2шт.

11

Oil Line

8044394 NLA SUB FOR AT172460

1шт.

12

Oil Line

8044395 NLA SUB FOR AT172461

1шт.

13

19M8441

Screw

8шт.

15

Clamp

8044417 NLA SUB FOR AT172462

2шт.

16

Bracket

9732244 NLA SUB FOR AT172463

2шт.

17

19M8011

Cap Screw

4шт.

18

19M7362

Cap Screw

2шт.

19

12H301

Lock Washer

6шт.

20

4285723

Clamp

SUB FOR TH109071 OR 4189859

2шт.

22

Oil Line

8042247 NLA SUB FOR AT172464

1шт.

23

Oil Line

8042248 NLA SUB FOR AT172465

1шт.

24

R69667

O-Ring

2шт.

25

T77858

O-Ring

8шт.

27

AT318014

Elbow Fitting

SUB FOR 4156434, SUB FOR TH101930

2шт.

28

Hydraulic Hose - Fabricate

AT172466 NLA

1шт.

30

4200467

Adapter Fitting

SUB FOR TH108417

1шт.

31

4207300

Tee Fitting

SUB FOR AT126381

1шт.

32

Hydraulic Hose - Fabricate

AT172467 NLA

1шт.

33

AT172468

Hydraulic Hose

1шт.

34

Oil Line

SUB FOR AT172469

1шт.

35

4327315

Hose Guard

SUB FOR TH106022, 4133527 OR 4327293

4шт.

37

Tee Fitting

4241383 NLA SUB FOR AT172470

2шт.

38

Hydraulic Hose - Fabricate

AT172471 NLA

1шт.

39

Hydraulic Hose - Fabricate

AT172472 NLA

2шт.

40

4154672

Elbow Fitting

SUB FOR AT172473, SUB FOR TH101008

2шт.

41

Hose Guard

MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH SUB FOR AT138222, TH100996 NOT AVAILABLE FOR SERVIC E

9шт.

42

H77698

Tie Band

2шт.

43

Cover

8045125 NLA SUB FOR AT172474

1шт.

44

Cover

4244017 NLA SUB FOR AT172475

1шт.

45

19M7402

Cap Screw

2шт.

12M7066

Lock Washer

2шт.
