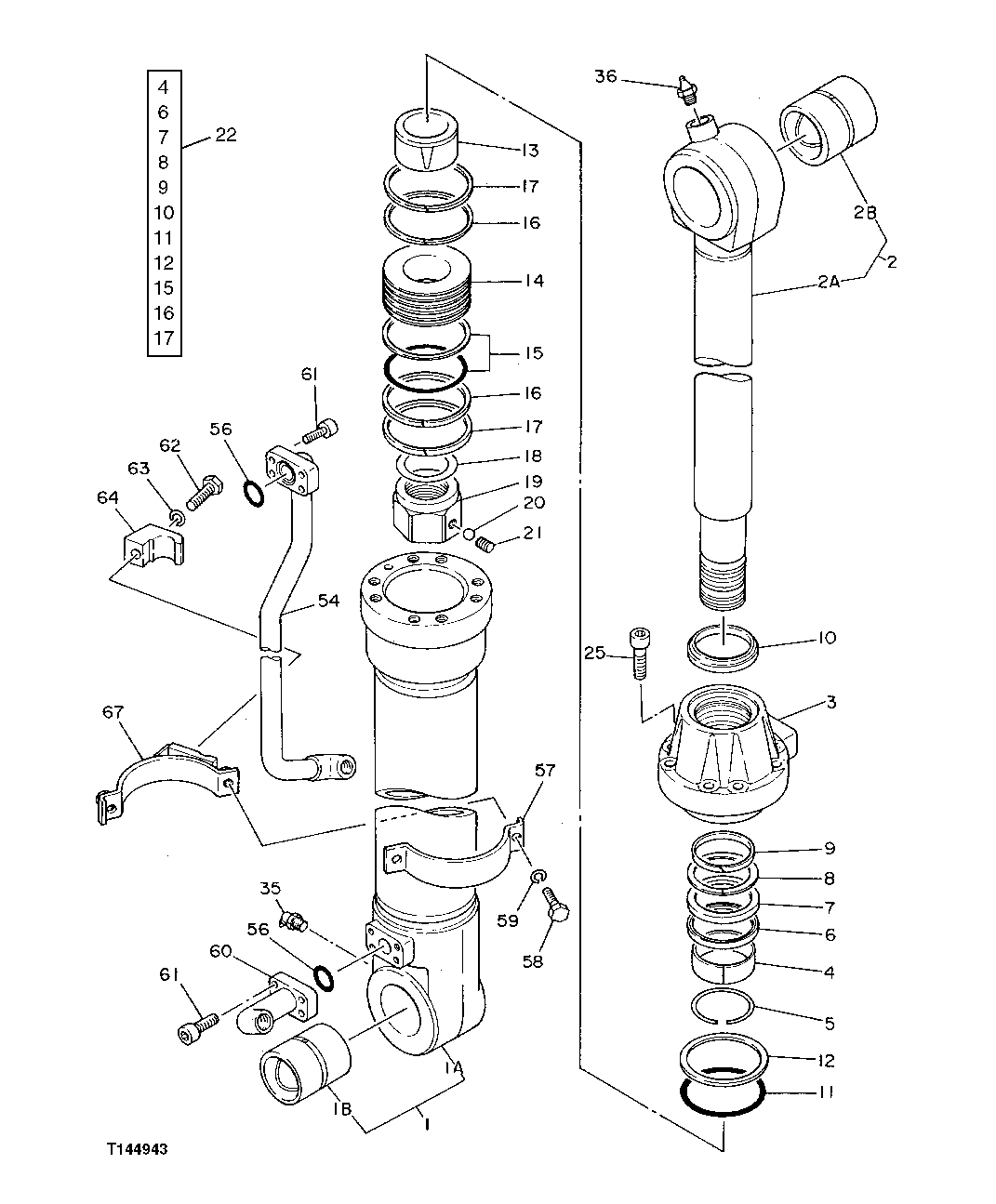

Запчасти John Deere 90D 212 - Bucket Cylinder 3360 HYDRAULIC SYSTEM

1

Hydraulic Cylinder Barrel

SUB AT182452 AT127674 NO LONGER AVAILABLE

1шт.

1A

Hydraulic Cylinder Barrel

SUB AT182452

1шт.

1B

0174403

Bushing

SUB FOR TH104939

1шт.

2

Cylinder

SUB FOR AT127673 4228672 NLA

1шт.

2A

Rod

SUB AT127673

1шт.

2B

0140808

Bushing

SUB FOR TH104905

1шт.

3

0310903

Cylinder Head

SUB FOR TH109349

1шт.

4

AT264314

Wear Ring

(A) SUB FOR 4S00137, T108041

1шт.

5

AT132690

Snap Ring

SUB FOR TH104908 OR 4004663

1шт.

6

AT264315

Ring

(A) SUB FOR T108042

1шт.

7

AT264357

Seal

(A) SUB FOR TH104925

1шт.

8

AT264358

Back-Up Ring

(A) SUB FOR TH104926

1шт.

9

AT264316

Ring

(A) SUB FOR T108043 ) (SUB FOR 4S00137

1шт.

10

AT264276

Ring

(A) SUB FOR TH104928, THIS A PPLICATION ) (SUB FOR AT176706

1шт.

11

AT264320

O-Ring

(A) SUB FOR T110448

1шт.

12

TH109353

Back-Up Ring

(A)

1шт.

13

0327404

Sleeve

SUB FOR AT127327

1шт.

14

0310906

Piston

SUB FOR TH109355

1шт.

15

TH105767

Ring

(A)

1шт.

16

AT309608

Ring

(A) SUB FOR TH109356, 4S00141

2шт.

17

TH109357

Ring

(A) SUB FOR AT309610

2шт.

18

T108030

Shim

SUB FOR 0309013

1шт.

19

0309010

Nut

SUB FOR T108025

1шт.

20

T13624

Ball

1шт.

21

22M6684

Set Screw

M12 X 12

1шт.

22

AT194335

Seal Kit

(INCLUDES PARTS MARKED (A)) SUB FOR AT176705

1шт.

25

0310905

Screw

SUB FOR AT127328 ) (SUB FOR TH109354

8шт.

35

T116334

Lubrication Fitting

SUB FOR TH100075

1шт.

36

TH100074

Lubrication Fitting

1шт.

37

4216312

Hydraulic Cylinder

(ASSY) (CONTAINS ITEMS ONE THROUGH 36) SUB FOR AT127248

1шт.

Hydraulic Cylinder

REMAN (ASSY) CONTAINS ITEMS 1 THR OUGH 36 AT182452 OR 4216312EX NLA

1шт.

54

4S00338

Line

SUB FOR AT127346

1шт.

56

AT264360

O-Ring

SUB FOR TH104930, 4506430

2шт.

57

0327704J

Band

SUB FOR AT127347, 0327704

1шт.

58

19M7550

Cap Screw

M10 X 35

2шт.

59

12M7066

Lock Washer

10 mm SUB FOR TH111733

2шт.

60

8086114J

Oil Line

SUB FOR AT114835 OR 8086114

1шт.

61

19M8337

Screw

M10 X 30

8шт.

62

19M7361

Cap Screw

M12 X 50 SUB FOR T108037

1шт.

63

12M7058

Lock Washer

12 mm SUB FOR 12M7067

1шт.

64

H238070

Clamp

SUB FOR T108036

1шт.

67

0327705

Band

SUB FOR AT127348

1шт.

68

Seal

NOT ILLUSTRATED OR INCLUDED IN CYL INDER ASSEMBLY - FOR DETAIL SEE BOO M AND ARM HYDRAULIC HOSES AND LINES

2шт.

70

AT176030

Arm

WHOLEGOODS INCLUDES STANDARD ARM, BUCK ET CYLINDER AND LINKAGEM NOT ILLUSTRATE D CONTAINS ALL ITEMS ON THIS PAGE - ADD ITIONAL COMPONENTS LISTED ON OTHER PAGE S

1шт.

AT176034

Arm

WHOLEGOODS INCLUDES STANDARD ARM, BUCK ET CYLINDER AND LINKAGEM NOT ILLUSTRATE D CONTAINS ALL ITEMS ON THIS PAGE - ADD ITIONAL COMPONENTS LISTED ON OTHER PAGE S

1шт.

AT194335

Seal Kit

INCLUDES PARTS MARKED K SUB FOR AT176705

1шт.
