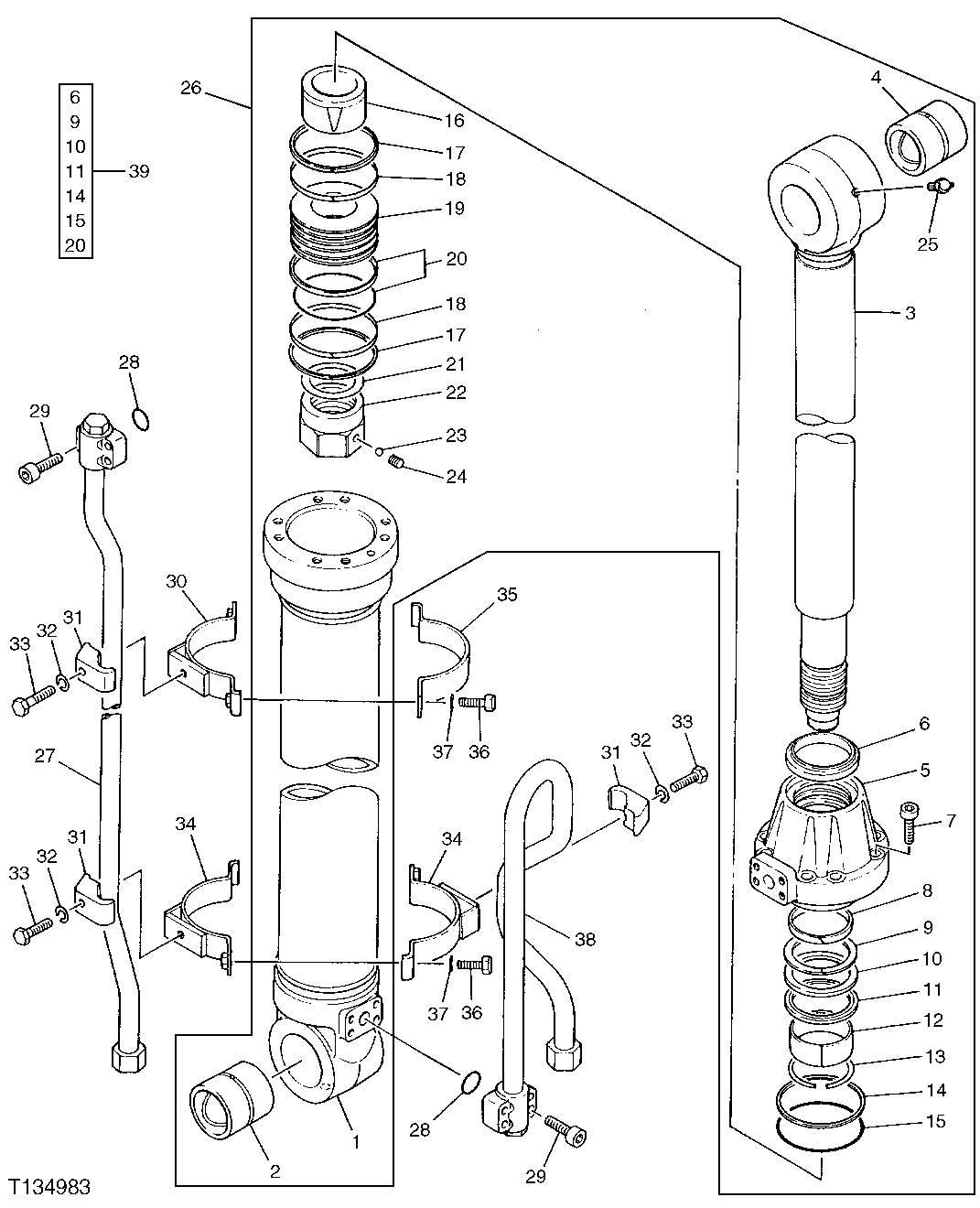

Запчасти John Deere 90D 211 - Arm Cylinder 3360 HYDRAULIC SYSTEM

1

Hydraulic Cylinder Barrel

( AT127676 NO LONGER AVAILABLE)

1шт.

2

0140808

Bushing

(SUB FOR TH104905)

1шт.

3

4228674

Rod

(SUB FOR AT127675)

1шт.

4

0174403

Bushing

(SUB FOR TH104939)

1шт.

5

0327603

Cylinder Head

(SUB FOR AT127339)

1шт.

6

H155911

Seal

(A) (SUB FOR TH104955, AT1 76693, 4S00202 OR AT309615)

1шт.

7

19M8131

Screw

M10 X 70 (SUB FOR T115112 OR T108028 ) (SUB FOR TH104941)

8шт.

8

T108021

Ring

1шт.

9

AT309614

Back-Up Ring

(A) (SUB FOR TH104953, 4S00174)

1шт.

10

H227912

Seal

(A) (SUB FOR TH104952 OR AT309613)

1шт.

11

AT309612

Ring

(A) (SUB FOR T108020, 4S00172)

1шт.

12

AT264272

Bushing

(SUB FOR T108019, AT154778, 4272960)

1шт.

13

TH104944

Snap Ring

(SUB FOR 0208304)

1шт.

14

AT264359

Back-Up Ring

(A) (SUB FOR TH104929, 4S00175)

1шт.

15

AT264342

O-Ring

(A) (SUB FOR TH100125)

1шт.

16

0327604

Sleeve

(SUB FOR AT127340)

1шт.

17

AT264356

Wear Ring

(SUB FOR 4S00158, TH104923)

2шт.

18

AT264317

Wear Ring

(SUB FOR T108046 AND 4S00142)

2шт.

19

0309308

Piston

(SUB FOR T108045)

1шт.

20

AT264355

Seal

(A) (SUB FOR TH104922)

1шт.

21

T108030

Shim

(SUB FOR 0309013)

1шт.

22

0309010

Nut

(SUB FOR T108025)

1шт.

23

T13624

Ball

1шт.

24

22M6684

Set Screw

M12 X 12

1шт.

25

TH100074

Lubrication Fitting

1шт.

26

Hydraulic Cylinder

ARM ( AT127249 OR 4216311 NLA)

1шт.

27

0327605

Line

(SUB FOR AT127341 ) (ALSO ORDER 19M83 37)(UNITS BUILT BEFORE DECEMBER 2004)

1шт.

0327608

Tube

(UNITS BUILT DECEMBER 2004 AND AFTER)

1шт.

28

AT264360

O-Ring

(SUB FOR TH104930, 4506430)

2шт.

29

19M8213

Screw

M10 X 50 (SUB FOR T108034)(UNI TS BUILT BEFORE DECEMBER 2004)

8шт.

19M8337

Screw

M10 X 30 (UNITS BUILT D ECEMBER 2004 AND AFTER)

8шт.

30

0309313

Clamp

(SUB FOR AT114849)

1шт.

31

H238070

Clamp

(SUB FOR T108036)

3шт.

32

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

3шт.

33

19M7361

Cap Screw

M12 X 50 (SUB FOR T108037)

3шт.

34

0327607

Band

(SUB FOR AT127343)

2шт.

35

T108048

Clamp

(SUB FOR 0309314)

1шт.

36

19M7550

Cap Screw

M10 X 35

4шт.

37

12M7066

Lock Washer

10 mm (SUB FOR TH111733)

4шт.

38

Pipe

(SUB FOR AT127342)( 0327606 NO LONGER AVA ILABLE) (UNITS BUILT BEFORE DECEMBER 2004)

1шт.

0327609

Line

(ALSO ORDER 19M8337)(UNITS B UILT DECEMBER 2004 AND AFTER)

1шт.

39

AT192075

Seal Kit

(USE AT176692 UNTIL EXHAUSTED) (INCLUD ES PARTS MARKED (A)) (SUB FOR AT176692)

1шт.
