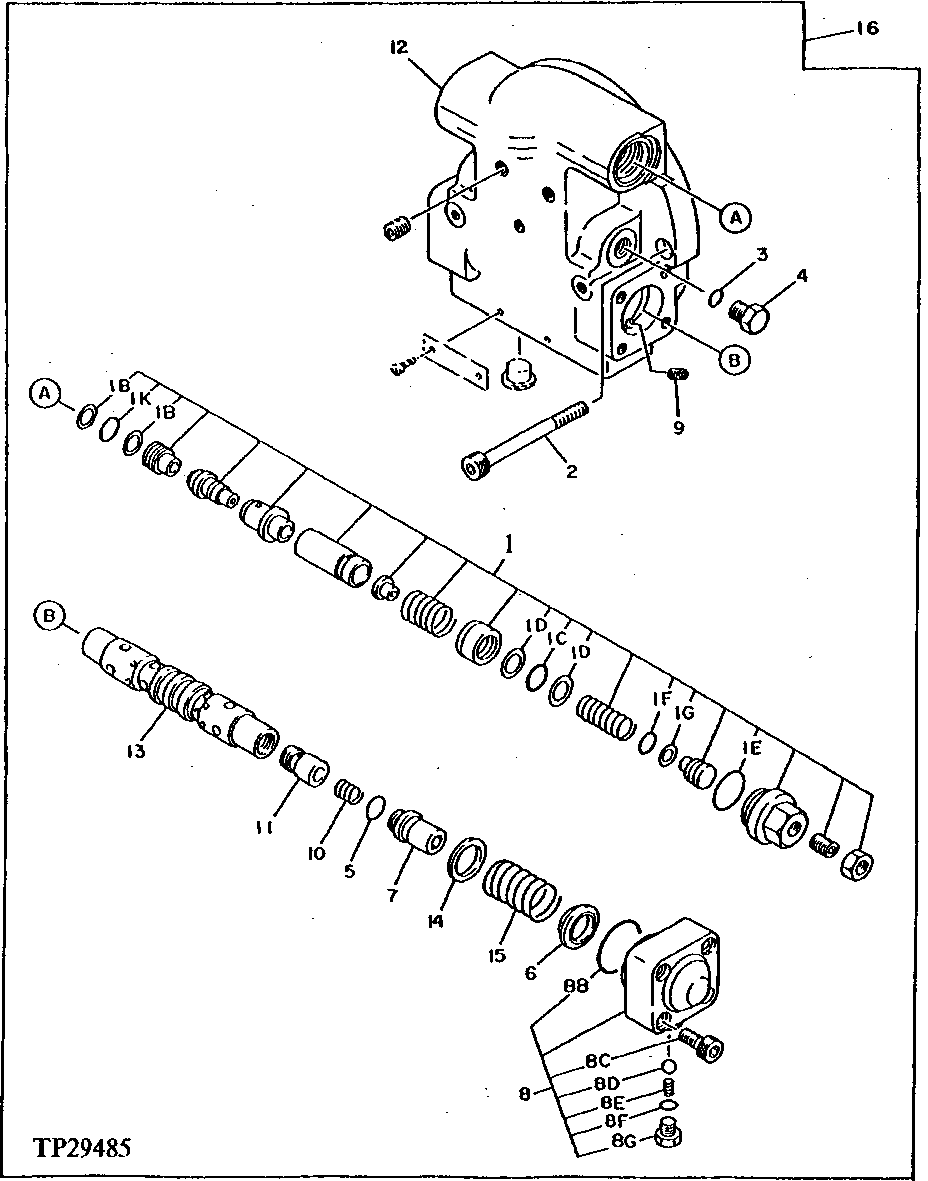

Запчасти John Deere 90D 11 - PROPEL MOTOR ( - 002294) 0260 AXLES AND SUSPENSION SYSTEM HYDRAULICS

1

0356902

Pressure Relief Valve

(SUB FOR AT128059)

2шт.

1B

4040814

Back-Up Ring

(SUB FOR TH105938)

2шт.

1C

985099

O-Ring

20.800 X 2.400 mm (SUB FOR TH101479)

1шт.

1D

4S01079

Back-Up Ring

(SUB FOR AT128031, 0310023)

2шт.

1E

R29936

O-Ring

29.743 X 2.946 mm (SUB FOR AT127982)

1шт.

1F

4140470

O-Ring

12.300 X 2.400 mm (SUB FOR TH109089)

1шт.

1G

4040813

Back-Up Ring

(SUB FOR TH110449)

1шт.

1K

0309733

Strap

(SUB FOR CH17159 ) (ALSO ORDE R A4730R ) (SUB FOR TH111921)

1шт.

A4730R

O-Ring

24.994 X 3.531 mm (SUB FOR CH17159 AND TH102736 ) (ALSO ORDER TH111921)

1шт.

2

0217408

Bolt

(SUB FOR AT127985)

2шт.

3

CH11570

O-Ring

13.800 X 2.400 mm

2шт.

4

0218608

Drain Plug

(SUB FOR AT127984 ) (SUB FOR TH110243)

2шт.

5

4506418

O-Ring

(SUB FOR U46489)

2шт.

6

0251404

Plate

(SUB FOR AT127991)

2шт.

7

0251405

Fitting Plug

(SUB FOR AT127992)

2шт.

8

0310026

Cap

(SUB FOR AT128032)

2шт.

8B

A811040

O-Ring

39.400 X 3.100 mm (SUB FOR TH102992)

1шт.

8C

19M8447

Screw

M10 X 35

4шт.

8D

T13624

Ball

7.145 mm

1шт.

8E

0356903

Spring

(SUB FOR AT128060)

1шт.

8F

4506408

O-Ring

7.800 X 1.900 mm (SUB FOR TH101490)

1шт.

8G

0356904

Plug

(SUB FOR AT128061)

1шт.

9

0310028

Orifice

(SUB FOR AT128034)

2шт.

10

0251402

Spring

(SUB FOR AT127990)

2шт.

11

0251401

Check Valve

(SUB FOR AT127989)

2шт.

12

Plate

1шт.

13

Plunger

1шт.

14

Plate

2шт.

15

Spring

2шт.

16

Hydraulic Motor

REMANUFACTURED (SUB FOR AT126839 ) (S UB FOR AT217318 (CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LIS TED ON PREVIOUS PAGE) ( 4237916EX NLA) )

1шт.
