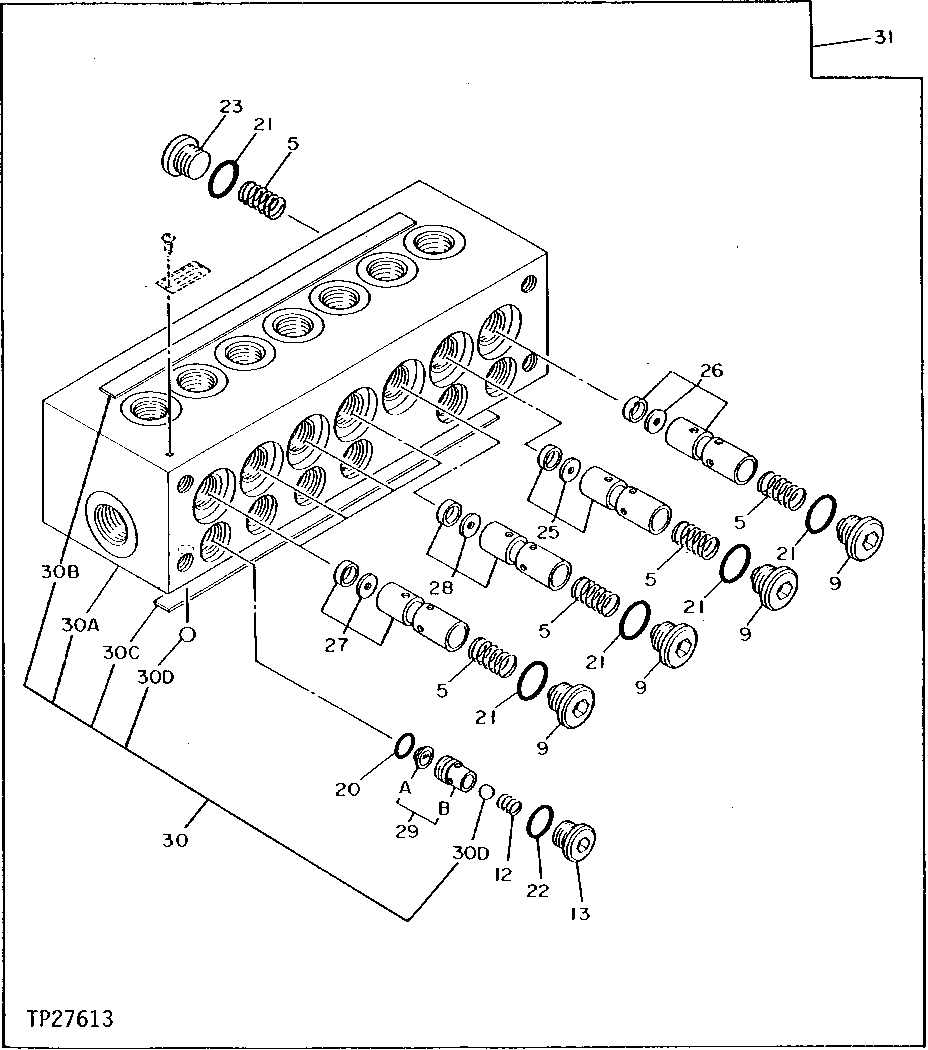

Запчасти John Deere 90D 208 - Shockless Valve 3360 HYDRAULIC SYSTEM

5

0309801

Spring

SUB FOR TH109280

14шт.

9

0309802

Pipe Plug

SUB FOR TH109281

7шт.

12

0309803

Spring

SUB FOR TH109282

6шт.

13

AT49216

Fitting Plug

SUB FOR TH109283 Contains O-Ring

6шт.

T70177

O-Ring

Not Illustrated

1шт.

20

CH11569

Packing

6шт.

21

CH11570

O-Ring

14шт.

22

R26448

O-Ring

SUB FOR TH109284 OR 4S 00110 THIS APPLICATION

6шт.

23

15M7036

Drain Plug

SUB FOR TH109285 OR 0309805

7шт.

25

0309806

Plunger

SUB FOR TH109286

1шт.

26

0309807

Plunger

SUB FOR TH109287

1шт.

27

0309808

Plunger

SUB FOR TH109288

4шт.

28

4212780

Plunger

SUB FOR TH109289 OR TH111865

1шт.

29

0309810

Filter

SUB FOR TH109290

6шт.

30

Housing

SUB TH108436, TH109291 NLA

1шт.

30A

Housing

SUB TH108436

1шт.

30B

Seal

TH109292 NLA

1шт.

30C

Seal

TH109293 NLA

1шт.

30D

L38718

Ball

SUB FOR TH109294

12шт.

31

4188553

Valve

SUB FOR TH108436

1шт.
