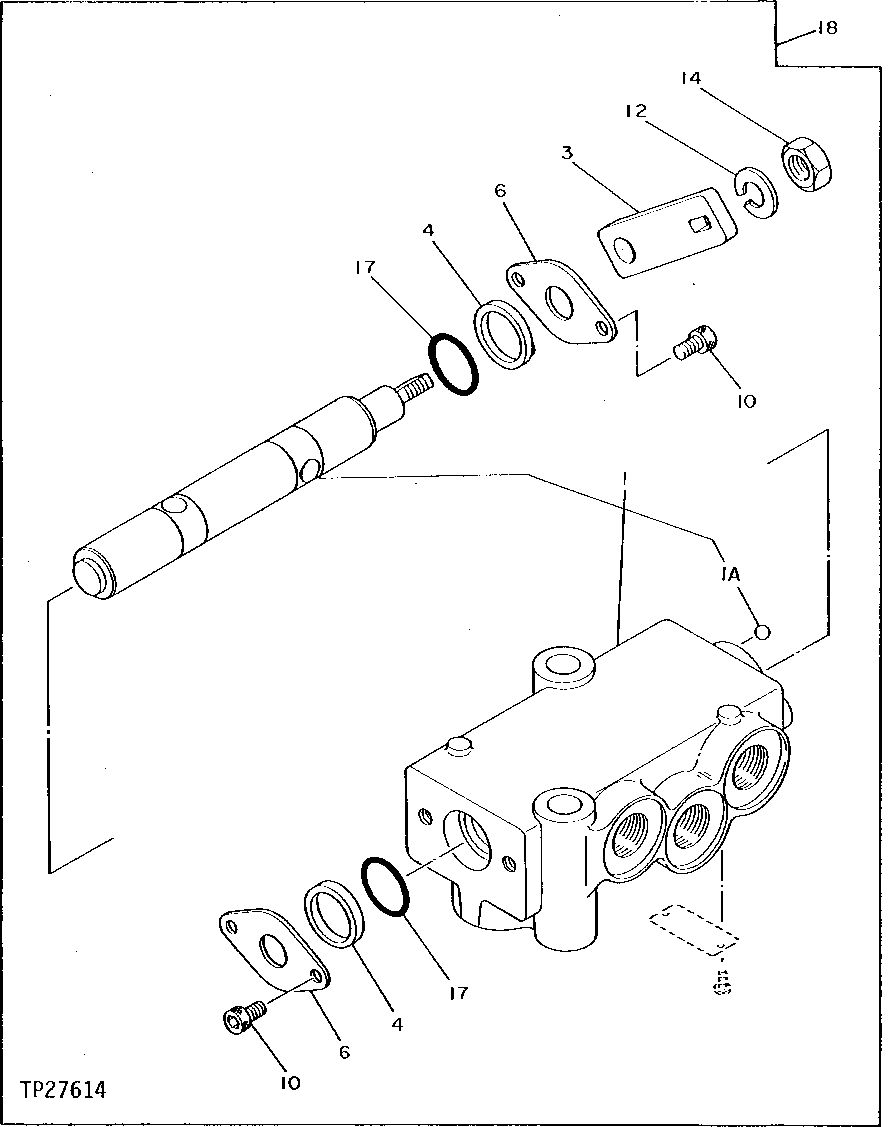

Запчасти John Deere 90D 205 - PILOT HYDRAULICS SHUT-OFF VALVE 3360 HYDRAULIC SYSTEM

1

Housing

(SUB TH108432)

1шт.

1A

0309902

Ball

(SUB FOR TH109297)

1шт.

3

0309903

Lever

(SUB FOR TH109298)

1шт.

4

0309904

Back-Up Ring

(SUB FOR TH109299)

2шт.

6

0309905

Holder

(SUB FOR TH109300)

2шт.

10

0344046

Bolt

(SUB FOR TH109301 ) (SUB FOR AT121123)

4шт.

12

12M7066

Lock Washer

10 mm (SUB FOR TH109303)

1шт.

14

0309910

Nut

(SUB FOR TH109305)

1шт.

17

CH14634

O-Ring

2шт.

18

4179025

Flow Control Hyd. Valve

(SUB FOR TH108432)

1шт.
