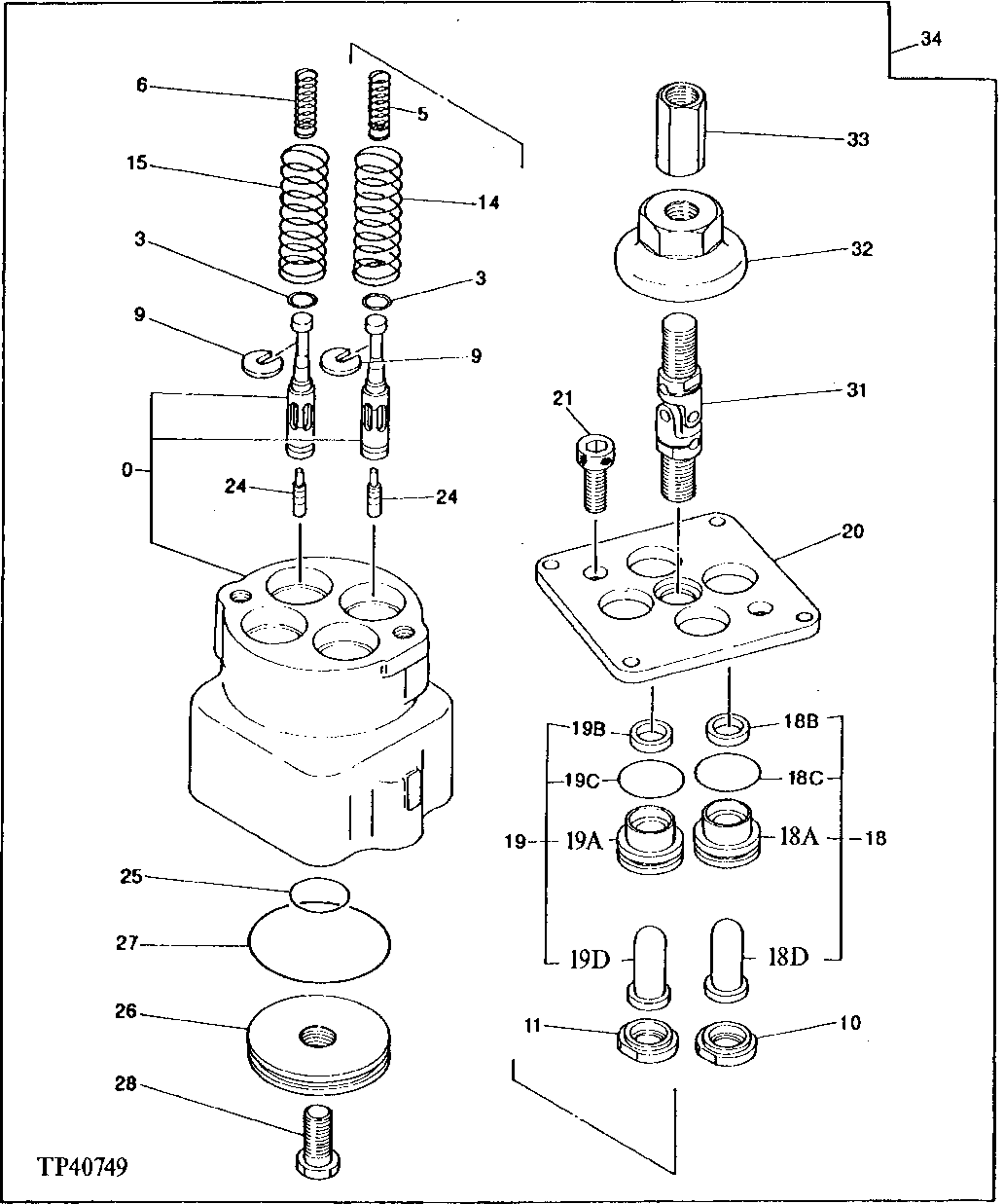

Запчасти John Deere 90D 202 - Pilot Control Valve (128883 - ) 3360 HYDRAULIC SYSTEM

0

Valve

(ORDER AT131277 OR AT189840)

1шт.

3

4173208

Shim

(SUB FOR TH109217)

20шт.

5

4201915

Spring

(SUB FOR TH109212)

2шт.

6

4166686

Compression Spring

(SUB FOR TH109213)

2шт.

9

4177777

Spacer

(SUB FOR TH109216)

4шт.

10

4179257

Guide

(SUB FOR TH109219)

2шт.

11

4177896

Guide

(SUB FOR TH109218)

2шт.

14

4210793

Compression Spring

(SUB FOR AT134060)

2шт.

15

4210794

Compression Spring

(SUB FOR AT134061)

2шт.

18

9104359

Plunger

(SUB FOR AT131267)(PORTS 1 AND 3)

2шт.

18A

3052332

Bushing

(SUB FOR AT131268)

1шт.

18B

4476342

Seal

(SUB FOR AT131269, 4359926)

1шт.

18C

U46166

O-Ring

1шт.

18D

3050142

Plunger

(SUB FOR AT131270)

1шт.

19

9104360

Plunger

(SUB FOR AT131271)(PORTS 2 AND 4)

2шт.

19A

3052332

Bushing

(SUB FOR AT131268)

1шт.

19B

4476342

Seal

(SUB FOR AT131269, 4359926)

1шт.

19C

U46166

O-Ring

1шт.

19D

3050143

Plunger

(SUB FOR AT131272)

1шт.

20

4284175

Plate

(SUB FOR AT131273)

1шт.

21

19M8440

Screw

M10 X 25

2шт.

24

4184929

Piston

(SUB FOR TH109228)

4шт.

25

CH11562

O-Ring

1шт.

26

4284024

Plate

(SUB FOR AT131276)

1шт.

27

CH11571

Packing

1шт.

28

19M8168

Screw

M12 X 25

1шт.

31

4285209

Universal Joint

(SUB FOR TH109230)

1шт.

32

4184931

Cam

(SUB FOR TH109231)

1шт.

33

4182067

Jointer

(SUB FOR TH109232)

1шт.

34

AT131277

Valve

1шт.

AT189840

Hyd/Pilot Cntl Valve Reman

(USE AT131277 IF AVAILABLE) (REM AN FOR AT131277) (SUB FOR AT13429 3, AT127179, AT130916, AT131278)

1шт.
