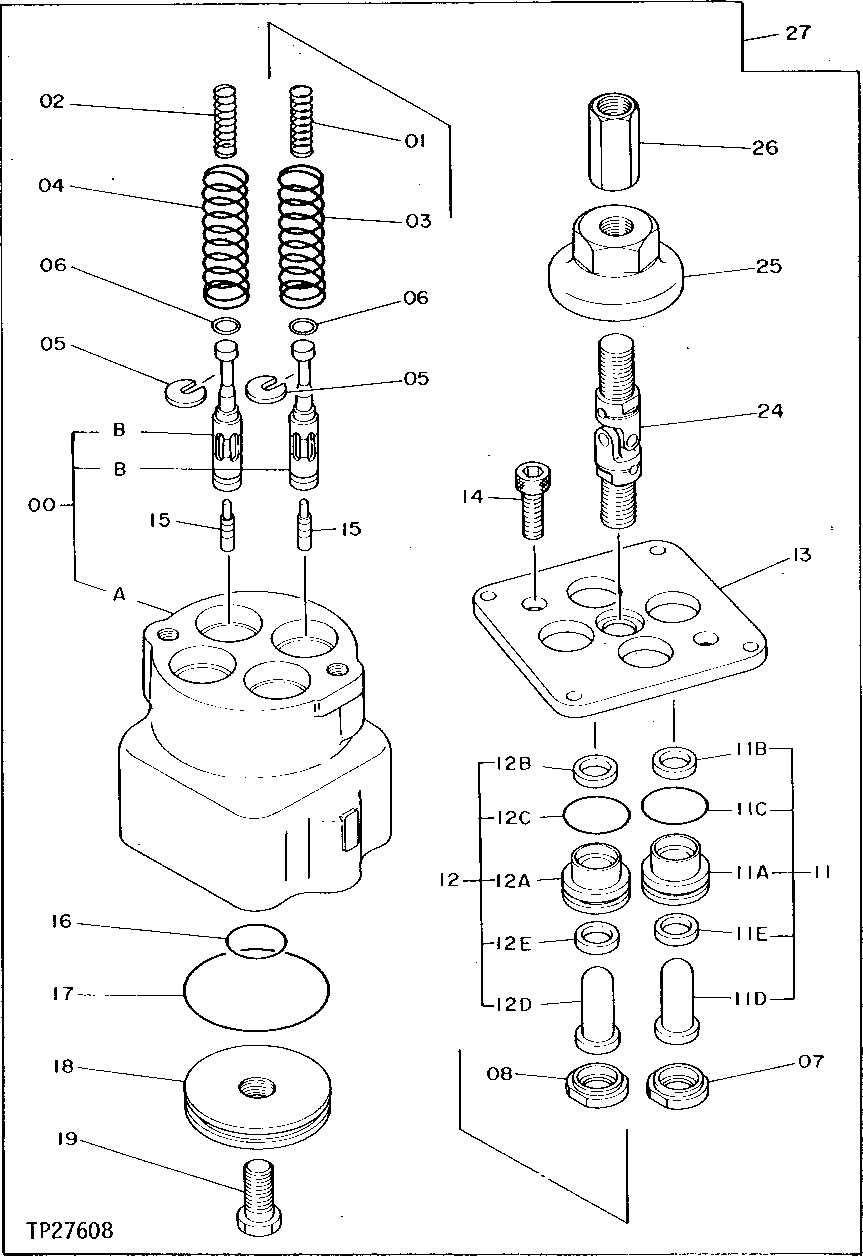

Запчасти John Deere 90D 200 - Pilot Control Valve ( - 128882) 3360 HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
0
Valve
(USE AT131277 IF AVAILABLE) ( TH109211 NO LO NGER AVAILABLE) (ORDER AT131277 OR AT189840)
1шт.
0A
Housing
(NOT AVAILABLE FOR SERVICE)
1шт.
0B
Spool
(NOT AVAILABLE FOR SERVICE)
4шт.
1
4201915
Spring
(SUB FOR TH109212)
2шт.
2
4166686
Compression Spring
(SUB FOR TH109213)
2шт.
3
4195421
Compression Spring
(SUB FOR TH109214)
2шт.
4
4186544
Compression Spring
(SUB FOR TH109215)
2шт.
5
4177777
Spacer
(SUB FOR TH109216)
4шт.
6
4173208
Shim
(SUB FOR TH109217)
20шт.
7
4179257
Guide
(SUB FOR TH109219)(PORTS 1 AND 3)
2шт.
8
4177896
Guide
(SUB FOR TH109218)(PORTS 2 AND 4)
2шт.
11
Rod
(SUB (2) 9104359, (2) 9104360 AND 4284175)
2шт.
Plunger
(SUB (2) 9104359, (2) 9104360 AND 4 284175)(CONNECTED TO PORTS ONE AND T HREE) ( 9089809 NO LONGER AVAILABLE)
2шт.
11A
Bushing
1шт.
11B
4240150
Seal
(SUB FOR TH109222 ) (SUB FOR TH111960)
1шт.
11C
U46166
O-Ring
1шт.
11D
Push Rod
1шт.
11E
4240151
Seal
(SUB FOR TH109224)
1шт.
12
Rod
(SUB (2) 9104359, (2) 9104360 AND 4284175)
2шт.
Plunger
(CONNECTED TO PORTS TWO AND FOUR) ( SUB (2) 9104359, (2) 9104360 AND 428 4175 ( 9089808 NO LONGER AVAILABLE))
2шт.
12A
Bushing
1шт.
12B
4240150
Seal
(SUB FOR TH109222 ) (SUB FOR TH111960)
1шт.
12C
U46166
O-Ring
1шт.
12D
Push Rod
1шт.
12E
4240151
Seal
(SUB FOR TH109224)
1шт.
13
Plate
( 4184930 NO LONGER AVAILABLE) (SUB 428417 5, ALONG WITH (2) 9104359 AND (2) 9104360)
1шт.
14
19M8440
Screw
M10 X 25
2шт.
15
4184929
Piston
(SUB FOR TH109228)
4шт.
16
CH11562
O-Ring
1шт.
17
CH11571
Packing
1шт.
18
4184954
Plate
(SUB FOR TH109229)
1шт.
19
19M8168
Screw
M12 X 25
1шт.
24
4285209
Universal Joint
(SUB FOR TH109230)
1шт.
25
4184931
Cam
(SUB FOR TH109231)
1шт.
26
4182067
Jointer
(SUB FOR TH109232)
1шт.
27
AT131277
Valve
NLA (ORDER AT189840)
1шт.
AT189840
Hyd/Pilot Cntl Valve Reman
( TH111710 NO LONGER AVAILABLE) (USE AT131277 IF AVAILABLE) (REMA N FOR AT131277) (SUB FOR TH108366 )
1шт.
Выбрано товаров: 37
