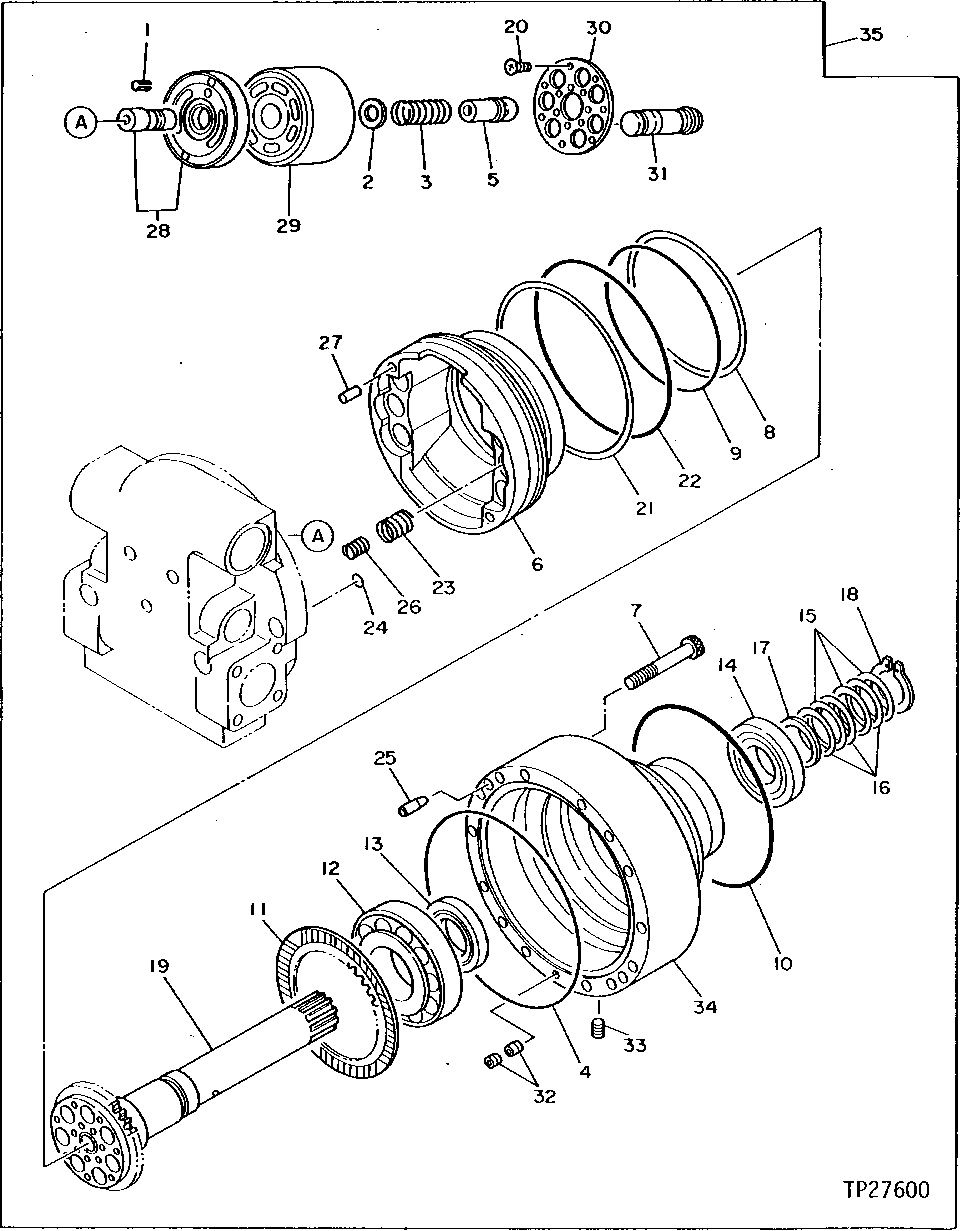

Запчасти John Deere 90D 10 - Propel Motor ( - 002294) 0260 AXLES AND SUSPENSION SYSTEM HYDRAULICS

1

988975

Spring Pin

SUB FOR AT128095 OR Z988975

1шт.

2

0310004

Washer

SUB FOR AT128016

1шт.

3

0310005

Spring

SUB FOR AT128017

1шт.

4

0310019

O-Ring

SUB FOR AT128028

1шт.

5

0124006

Rod

SUB FOR AT127983

1шт.

6

0310014

Piston

SUB FOR AT128025

1шт.

7

19M8340

Screw

M10 X 65 SUB FOR AT128078

12шт.

8

0310016

Back-Up Ring

SUB FOR AT128026

1шт.

9

0310015

O-Ring

SUB FOR TH110249

1шт.

10

0310008

O-Ring

SUB FOR AT128019

1шт.

11

0310013

Disk

SUB FOR AT128024

1шт.

12

0328828

Cylindrical Roller Bearing

SUB FOR AT128014, JD37086 OR AT133874

1шт.

13

0158821

Seal

SUB FOR TH110240

1шт.

14

JD9345

Ball Bearing

SUB FOR AT128015

1шт.

15

0310011

Shim

SUB FOR AT128022

3шт.

16

0310010

Shim

SUB FOR AT128021

3шт.

17

0310009

Washer

SUB FOR AT128020

1шт.

18

0310012

Snap Ring

SUB FOR AT128023

1шт.

19

0310001

Shaft

SUB FOR AT128013

1шт.

20

21M7293

Screw

M4 X 16 SUB FOR AT128018

14шт.

21

0310018

Back-Up Ring

SUB FOR AT128027

1шт.

22

0353321

O-Ring

SUB FOR TH109070 OR 4S00218, 0310017 NLA

1шт.

23

0310020

Spring

SUB FOR AT128029

6шт.

24

CH11568

Packing

1шт.

25

0251319

Pin

10 X 24 mm SUB FOR AT127988

2шт.

26

0310021

Spring

SUB FOR AT128030

6шт.

27

0251318

Pin

8 X 30 mm SUB FOR AT127987

2шт.

28

0356901

Plate

SUB FOR AT128058

1шт.

29

Cylinder Block

1шт.

30

Plate

1шт.

31

Piston

7шт.

32

Orifice

2шт.

33

Plug

SUB AT126839

1шт.

34

Housing

1шт.

35

Hydraulic Motor

SUB FOR AT126839 OR AT217318, 423 7916EX NLA Remanufactured Contains All Items On This Page Additional Components Listed On Follwing Pag e

1шт.
