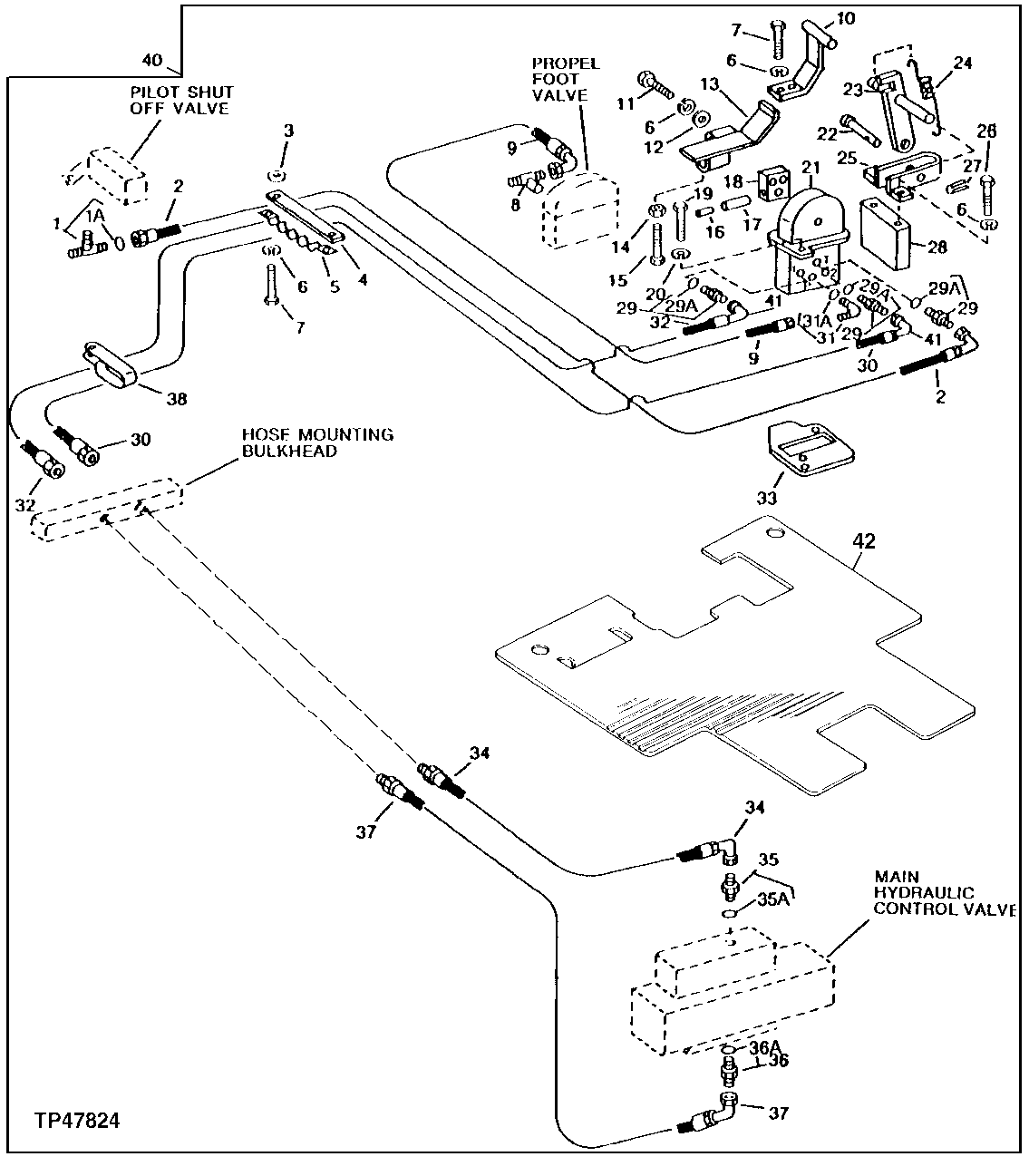

Запчасти John Deere 90D 194 - AUXILIARY FUNCTION VALVE, HOSES, PEDAL, CIRCUIT RELIEF VALVES AND PEDAL LOCK 3360 HYDRAULIC SYSTEM

1

4208911

Tee Fitting

(SUB FOR TH110202 ) (SUB FOR AT126456)

1шт.

1A

CH11570

O-Ring

1шт.

2

AT72803

Hydraulic Hose

(SUB FOR TH110198)

1шт.

3

24M7028

Washer

2шт.

4

9727637

Plate

(SUB FOR TH108457)

1шт.

5

9727639

Hose Clamp

(SUB FOR TH108456)

1шт.

6

12M7066

Lock Washer

8шт.

7

19M7550

Cap Screw

4шт.

8

4208473

Tee Fitting

(SUB FOR TH110203)

1шт.

9

AT69452

Hydraulic Hose

(SUB FOR TH110199)

1шт.

10

9728875

Footrest

(SUB FOR TH110195)

1шт.

11

19M7402

Cap Screw

2шт.

12

24M7028

Washer

2шт.

13

8046079

Pedal

(SUB FOR TH110191 ) (SUB FOR AT134292)

1шт.

14

14M7273

Nut

1шт.

15

19M8008

Cap Screw

1шт.

16

34M7062

Spring Pin

1шт.

17

34M7124

Spring Pin

(SUB FOR 34M7065)

1шт.

18

4211166

Support

(SUB FOR TH110190)

1шт.

19

19M8008

Cap Screw

3шт.

20

12M7064

Lock Washer

3шт.

21

9074843

Hyd Actuated Control Valve

(SUB FOR TH110188)USE WITH (2) AT128070 CIRC UIT RELIEF VALVES (NOT INCLUDED IN TH108154)

1шт.

22

45M3667

Pin Fastener

(SUB FOR TH105681)

1шт.

23

9733399

Bracket

(SUB FOR TH110192 ) (SUB FOR AT134303)

1шт.

24

4149125

Spring

(SUB FOR TH106748)

1шт.

25

8034081

Bracket

(SUB FOR TH110193)

1шт.

26

19M8761

Screw

(SUB FOR TH102993)

2шт.

27

11M7082

Cotter Pin

(SUB FOR 11M7080)

1шт.

28

4211167

Spacer

(SUB FOR TH110194)

1шт.

14M7274

Nut

(NOT ILLUSTRATED) UNDER C AB FLOOR BENEATH TH110194

2шт.

29

4200467

Adapter Fitting

(SUB FOR TH108417)

3шт.

29A

M800650

Packing

1шт.

30

AT130683

Hydraulic Hose

(SUB FOR TH110196 OR 421 0338, ALONG WITH AE24616)

1шт.

31

AT318014

Elbow Fitting

(SUB FOR 4156434 ) (SUB FOR TH101930)

1шт.

31A

M800650

Packing

1шт.

32

AT130683

Hydraulic Hose

(SUB FOR TH110197 OR 421 0352, ALONG WITH AE24616)

1шт.

33

9728874

Plate

(SUB FOR TH110189)

1шт.

34

AT72803

Hydraulic Hose

(SUB FOR 4209792, ALONG WITH R27238 AND 14H832)

1шт.

R27238

Fitting

(NOT ILLUSTRATED)

1шт.

14H832

Nut

(NOT ILLUSTRATED)

1шт.

35

4202422

Adapter Fitting

(SUB FOR TH108440)

1шт.

35A

CH11570

O-Ring

1шт.

36

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

36A

CH11570

O-Ring

1шт.

37

AT50269

Hydraulic Hose

(SUB FOR 4209793, ALONG WITH R27238 AND 14H832)

1шт.

R27238

Fitting

(NOT ILLUSTRATED)

1шт.

14H832

Nut

1шт.

38

M45242

Clip

(SUB FOR TH108321 ) (SUB FOR 4190292)

1шт.

40

TH108154

Control Kit

AUXILIARY FUNCTION (ALSO ORDER (2) 4265364)

1шт.

41

AE24616

Elbow Fitting

2шт.

42

3040042

Mat

(SUB FOR AT132472)

1шт.
