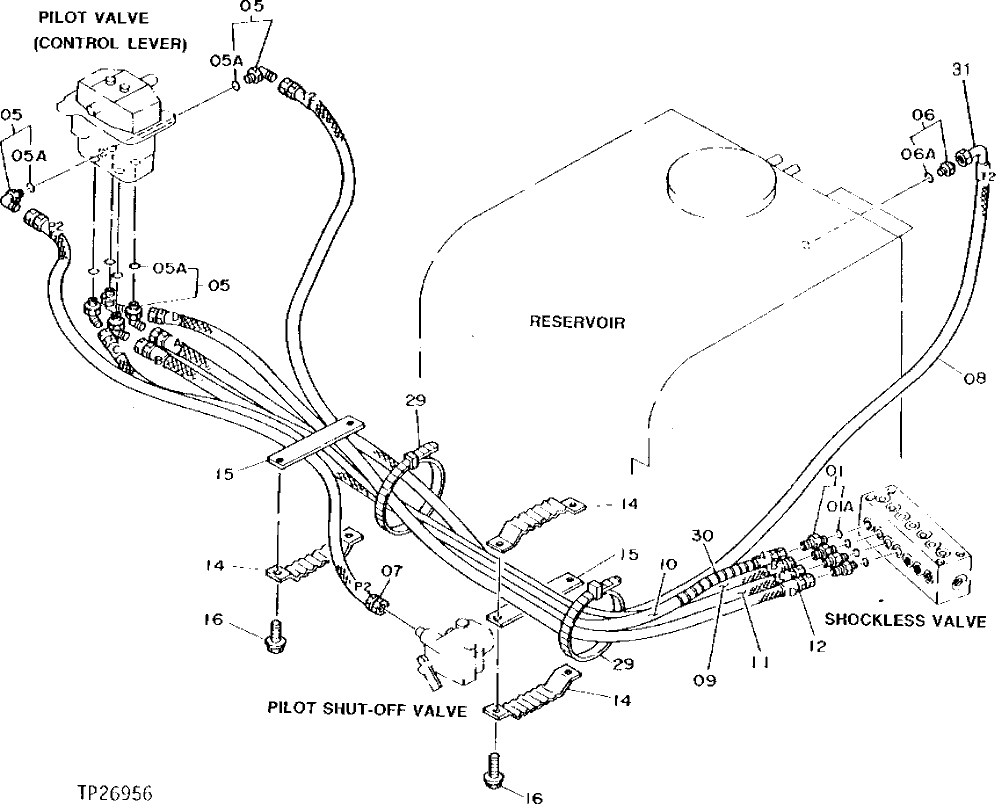

Запчасти John Deere 90D 192 - PILOT HYDRAULIC HOSES AND LINES 3360 HYDRAULIC SYSTEM

1

4200466

Adapter Fitting

SUB FOR TH108320

4шт.

1A

CH11570

O-Ring

1шт.

5

AT318014

Elbow Fitting

SUB FOR 4156434, SUB FOR TH101930

6шт.

5A

M800650

Packing

1шт.

6

4200466

Adapter Fitting

SUB FOR TH108320

1шт.

6A

CH11570

O-Ring

1шт.

7

AT57860

Hydraulic Hose

1шт.

8

AH89075

Hydraulic Hose

SUB FOR 4213453, ALONG WITH AE24616

1шт.

9

AE42000

Hydraulic Hose

SUB FOR AT126543

1шт.

10

AE42000

Hydraulic Hose

SUB FOR AT126542

1шт.

11

AE42000

Hydraulic Hose

SUB FOR AT126544

1шт.

12

AE42000

Hydraulic Hose

SUB FOR AT126545

1шт.

14

9727639

Hose Clamp

SUB FOR TH108456

3шт.

15

9727637

Plate

SUB FOR TH108457

2шт.

16

19M7550

Cap Screw

M10 X 35

4шт.

29

H77698

Tie Band

SUB FOR TH106422

2шт.

30

4327315

Hose Guard

SUB FOR TH106022, 4133527 OR 4327293

1шт.

31

AE24616

Elbow Fitting

1шт.
