Запчасти John Deere 90D 9 - Transmission (002295 - ) 0250 Axle Shaft, Bearings, Reduction Gears

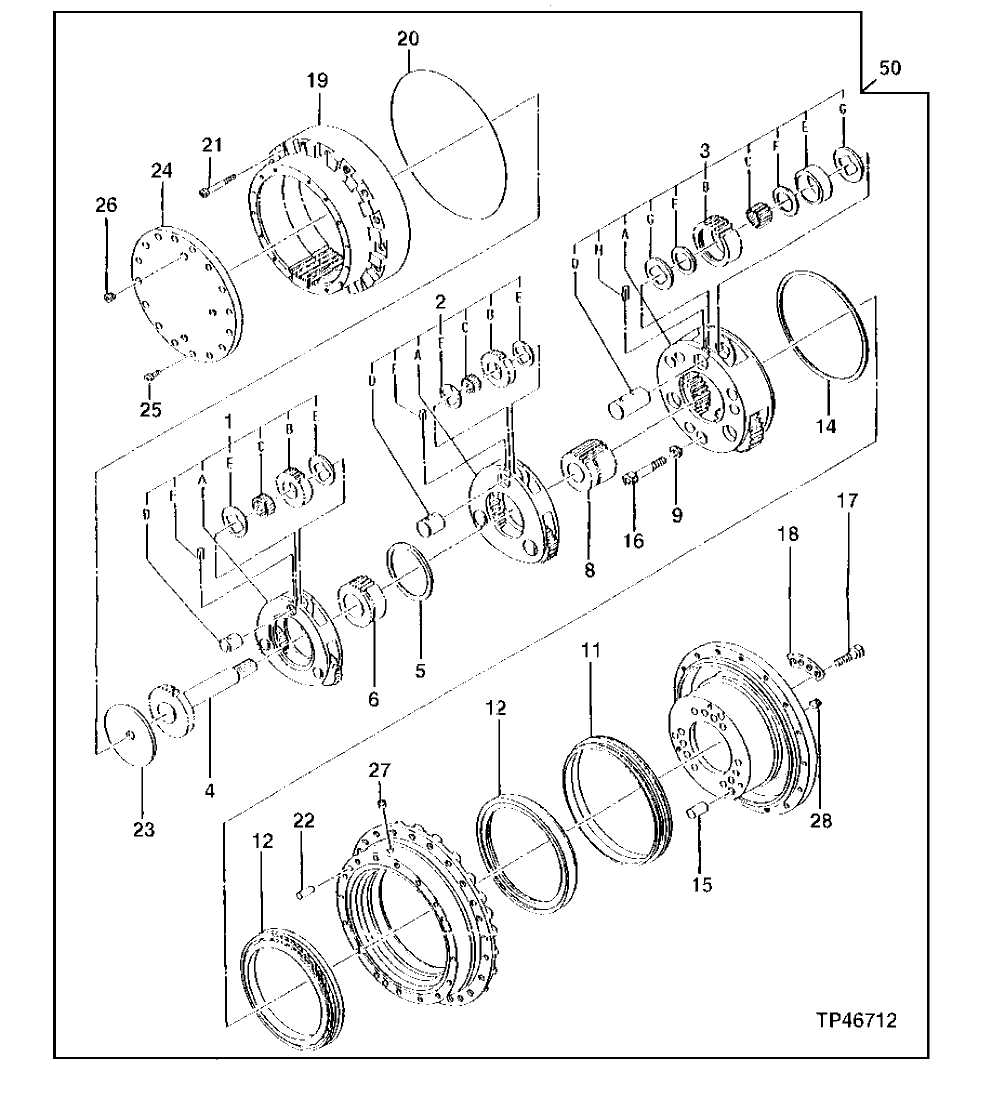

Схема запчастей John Deere 90D - 9 - Transmission (002295 - ) 0250 Axle Shaft, Bearings, Reduction Gears
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

0411601

Holder

SUB FOR AT170345

1шт.

1A

0411602

Holder

SUB FOR AT170346

1шт.

1B

0411603

Gear

SUB FOR AT170347

3шт.

1C

0411604

Needle Bearing

SUB FOR AT170348

3шт.

1D

0636301

Shaft

SUB FOR AT170349

3шт.

1E

0411606

Thrust Washer

SUB FOR AT170350

6шт.

1F

Spring Pin

490857 NLA, SUB FOR AT204589

3шт.

2

0411607

Holder

SUB FOR AT170352

1шт.

2A

0411608

Holder

SUB FOR AT170353

1шт.

2B

0411609

Gear

SUB FOR AT170354

3шт.

2C

0411610

Needle Bearing

SUB FOR AT170355

3шт.

2D

0636302

Shaft

SUB FOR AT170356

3шт.

2E

0411612

Thrust Washer

SUB FOR AT170357

6шт.

2F

34M7144

Spring Pin

4 X 28 mm

3шт.

3

0411613

Holder

SUB FOR AT170359

1шт.

3A

0636303

Holder

SUB FOR AT170360

1шт.

3B

0411615

Gear

SUB FOR AT170361

3шт.

3C

0411616

Needle Bearing

(SUB FOR AT170362, INDIVIDUAL BEARINGS

51шт.

3D

0636304

Shaft

SUB FOR AT170363

3шт.

3E

0411618

Bushing

SUB FOR AT170364

3шт.

3F

0411619

Locking Collar

SUB FOR AT170365

6шт.

3G

0411620

Thrust Washer

SUB FOR AT170367

6шт.

3H

0411621

Spring Pin

SUB FOR AT170370

3шт.

4

0411622

Gear

SUB FOR AT170371

1шт.

5

0411623

Plate

SUB FOR AT170372

1шт.

6

0411624

Sun Gear

SUB FOR AT170373

1шт.

8

0411625

Sun Gear

SUB FOR AT170374

1шт.

9

4069706

Washer

SUB FOR AT170375

3шт.

11

0251523

Seal

1шт.

12

0636305

Bearing

SUB FOR AT170378

2шт.

14

4288544

Shim

SUB FOR AT170379

ARшт.

15

0636306

Pin Fastener

SUB FOR AT170380

3шт.

16

0411628

Bolt

SUB FOR AT170381

3шт.

17

0168008

Bolt

SUB FOR AT170382

12шт.

18

0411629

Plate

SUB FOR AT170383

3шт.

19

0411630

Ring Gear

SUB FOR AT170384

1шт.

20

0411631

O-Ring

SUB FOR AT170385

1шт.

21

19M8548

Screw

M12 X 80 SUB FOR AT170386

16шт.

22

0411632

Pin Fastener

SUB FOR AT170388

3шт.

23

4288545

Plate

SUB FOR AT170389

1шт.

24

0411633

Cover

SUB FOR AT170390

1шт.

25

0411634

Bolt

SUB FOR AT170391

16шт.

26

0113504

Plug

SUB FOR TH102732

3шт.

27

942011

Fitting Plug

SUB FOR 94-2011 AND TH100434

1шт.

28

94-2010

Fitting Plug

SUB FOR TH100689

1шт.

50

4346930

Transmission

SUB FOR AT170271

1шт.
