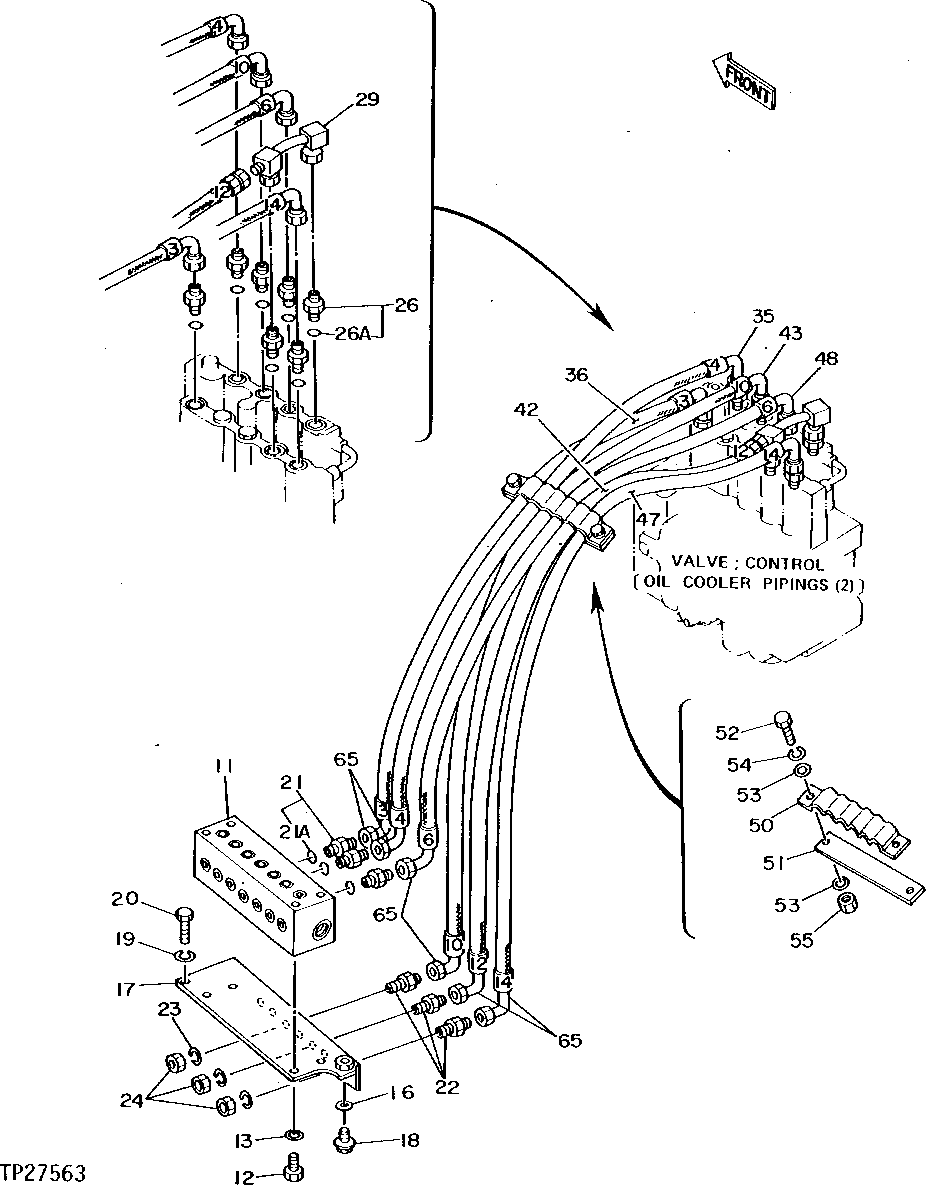

Запчасти John Deere 90D 189 - PILOT HYDRAULIC HOSES AND LINES 3360 HYDRAULIC SYSTEM

11

4188553

Valve

(SUB FOR TH108436)

1шт.

12

19M7938

Cap Screw

M10 X 20

4шт.

13

12M7066

Lock Washer

10 mm

4шт.

16

12M7066

Lock Washer

10 mm

1шт.

17

8040166

Bracket

(SUB FOR AT127049)

1шт.

18

19M7402

Cap Screw

M10 X 25

1шт.

19

12M7066

Lock Washer

10 mm

1шт.

20

19M7938

Cap Screw

M10 X 20

1шт.

21

4200466

Adapter Fitting

(SUB FOR TH108320)

3шт.

21A

CH11570

O-Ring

1шт.

22

R27238

Fitting

3шт.

23

12H294

Lock Washer

5/8"

3шт.

24

14H888

Nut

9/16" (SUB FOR TH108439)

3шт.

26

4202422

Adapter Fitting

(SUB FOR TH108440)

7шт.

26A

CH11570

O-Ring

1шт.

29

8038382

Line

(SUB FOR TH108441)

1шт.

35

AT69452

Hydraulic Hose

(SUB FOR 4213471, ALONG WITH AE24616)

1шт.

36

AT50269

Hydraulic Hose

(SUB FOR 4213470, ALONG WITH AE24616)

1шт.

42

AT48717

Hydraulic Hose

(SUB FOR 4213469, ALONG WITH AE24616)

1шт.

43

AT69452

Hydraulic Hose

(SUB FOR 4213474, ALONG WITH AE24616)

1шт.

47

AT69452

Hydraulic Hose

(SUB FOR AT126564, ALONG WITH AE24616)

1шт.

48

AT69452

Hydraulic Hose

(SUB FOR 4213473, ALONG WITH AE24616)

1шт.

50

9727639

Hose Clamp

(SUB FOR TH108456)

1шт.

51

9727637

Plate

(SUB FOR TH108457)

1шт.

52

19M7550

Cap Screw

M10 X 35

2шт.

53

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

54

12M7066

Lock Washer

10 mm

2шт.

55

14M7274

Nut

M10

2шт.

65

AE24616

Elbow Fitting

6шт.
