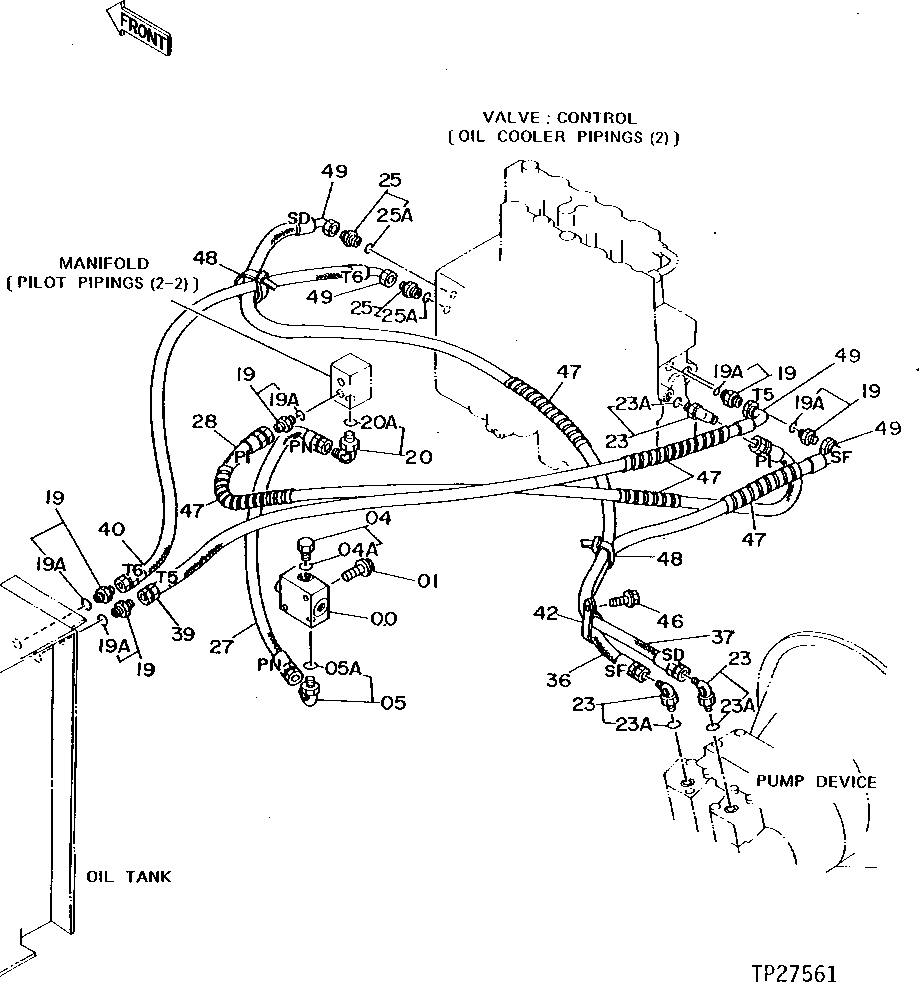

Запчасти John Deere 90D 187 - PILOT HYDRAULIC HOSES AND LINES 3360 HYDRAULIC SYSTEM

0

9072360

Check Valve

SUB FOR TH108415

1шт.

1

19M7935

Cap Screw

M10 X 55

2шт.

4

AT318013

Drain Plug

SUB FOR 4093624, SUB FOR TH103949, SUB FOR TH102536

1шт.

4A

M800650

Packing

1шт.

5

A852333

Elbow Fitting

SUB FOR TH101047, SUB FOR 4154671

1шт.

5A

CH11570

O-Ring

1шт.

19

4200465

Adapter Fitting

SUB FOR TH108328

5шт.

19A

M800650

Packing

1шт.

20

AT318014

Elbow Fitting

SUB FOR 4156434, SUB FOR TH101930

1шт.

20A

M800650

Packing

1шт.

23

4154670

Elbow Fitting

SUB FOR TH100951

3шт.

23A

M800650

Packing

1шт.

25

4209776

Adapter Fitting

SUB FOR AT126484

2шт.

25A

M800650

Packing

1шт.

27

AR98204

Hydraulic Hose

SUB FOR AT126660

1шт.

28

AE42282

Hydraulic Hose

1шт.

36

AE42281

Hydraulic Hose

SUB FOR AT128092, ALONG WITH AH89069

1шт.

37

AE42281

Hydraulic Hose

SUB FOR AT128091, ALONG WITH AH89069

1шт.

39

AE42282

Hydraulic Hose

SUB FOR AT126550, ALONG WITH AH89069

1шт.

40

AE42282

Hydraulic Hose

SUB FOR 4213451, ALONG WITH AH89069

1шт.

42

M45242

Clip

SUB FOR TH108321, SUB FOR 4190292

1шт.

46

19M7938

Cap Screw

M10 X 20

1шт.

47

4327315

Hose Guard

SUB FOR TH106022, 4133527 OR 4327293

5шт.

48

H77698

Tie Band

SUB FOR TH106422

3шт.

49

AH89069

Elbow Fitting

4шт.
