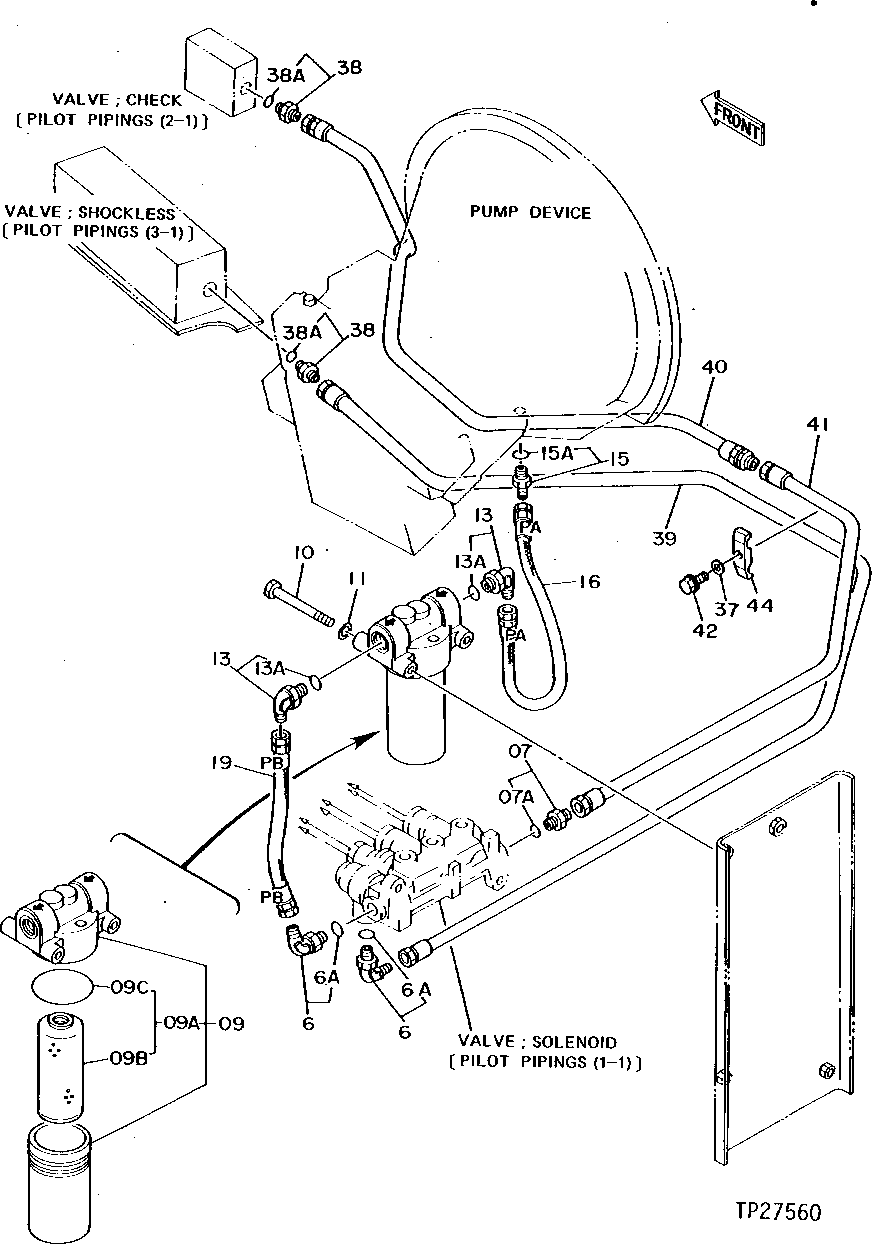

Запчасти John Deere 90D 186 - PILOT HYDRAULIC HOSES AND LINES 3360 HYDRAULIC SYSTEM

6

4200471

Elbow Fitting

(SUB FOR TH108399)

2шт.

6A

4506418

O-Ring

(SUB FOR U46489)

1шт.

7

4200469

Adapter Fitting

(SUB FOR TH108400)

1шт.

7A

4506418

O-Ring

(SUB FOR U46489)

1шт.

9

4631976

Oil Filter

(SUB FOR TH108402, 4191300)

1шт.

9A

AT186554

Filter Element

(SUB FOR TH108403 OR AT147821)

1шт.

9B

Filter Element

(SUB AT147821 OR AT186554)

1шт.

9C

AT264334

O-Ring

(SUB FOR TH100101)(USE WIT H TH108403 FILTER ELEMENT)

1шт.

CH17154

Packing

(USE WITH AT147821 FILTER ELEMENT)

1шт.

10

19M8761

Screw

M10 X 22 (SUB FOR TH102993)

2шт.

11

12M7066

Lock Washer

10 mm

2шт.

13

4200471

Elbow Fitting

(SUB FOR TH108399)

2шт.

13A

4506418

O-Ring

(SUB FOR U46489)

1шт.

15

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR 4154671)

1шт.

15A

CH11570

O-Ring

1шт.

16

AE25986

Hydraulic Hose

(SUB FOR AT128090)

1шт.

19

AR69300

Hydraulic Hose

1шт.

37

12H301

Lock Washer

1/2"

1шт.

38

4200469

Adapter Fitting

(SUB FOR TH108400)

2шт.

38A

4506418

O-Ring

(SUB FOR U46489)

1шт.

39

8044455

Line

(SUB FOR AT127135)

1шт.

40

8044456

Line

(SUB FOR AT127136)

1шт.

41

8044457

Line

(SUB FOR AT127137)

1шт.

42

19M7493

Cap Screw

M12 X 40

1шт.

44

4189858

Clamp

(SUB FOR TH108333)

1шт.
